Unit · AXIAL-PISTON MOTOR
A6VE28HA2T/60W-437092R909437092
Axial piston motor Bosch Rexroth series A6VE, type code A6VE28HA2T/60W-437092, material number R909437092. Nominal size: NG 28. Axial piston unit: bent-axis design, variable (A6V). Operating mode: plug-in motor (E). Control device: automatic control high-pressure related, positive control With pressure increase Δp = 100 bar (HA2). Additional function 1: without additional function (0). Stroking time damping: damping One-sided in inlet to large stroking chamber (HA) (4).
- Number
- R909437092
- Type code
- A6VE28HA2T/60W-437092
- Group
- A6VE 28
- Edition
- 06/2020

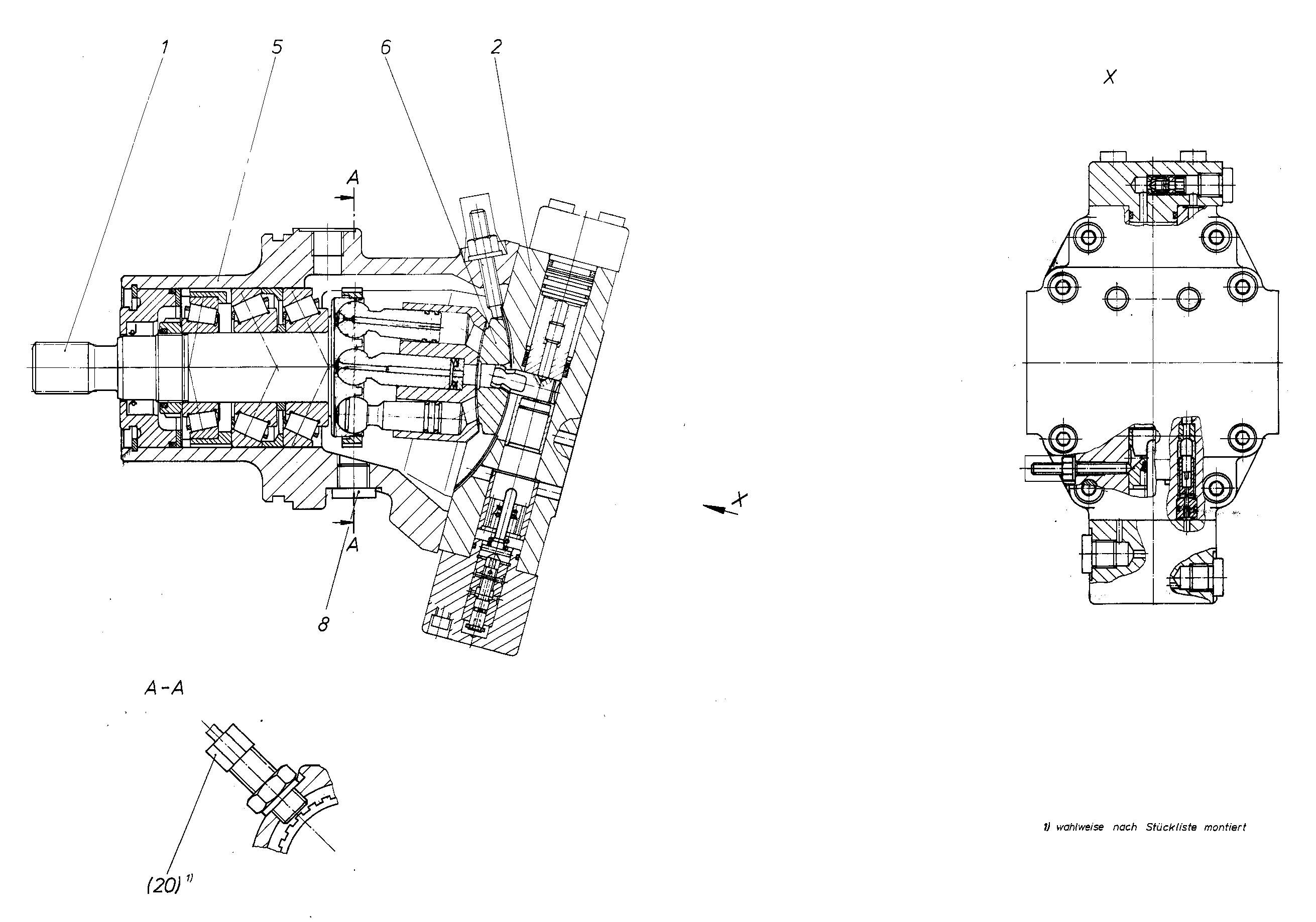

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909437106 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909422568 | CONTROL Assembly parts list →L | 1 | ||
| R909436325 | HOUSING | 1 | ||
| R909921785 | CONTROL LENS | 1 | ||
| R909153816 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Plug-in motor | E |
| Size (NG) | 28 | 28 |
| Control device | Automatic control high-pressure related, positive control With pressure increase Δp = 100 bar | HA2 |
| Additional function 1 | Without additional function | 0 |
| Stroking time damping | Damping One-sided in inlet to large stroking chamber (HA) | 4 |
| Setting range for displacement | 3709 | 3709 |
