Unit · AXIAL-PISTON MOTOR
A6VMN107EP2/60W-PZB026BR909437572
Axial piston motor Bosch Rexroth series A6VM, type code A6VMN107EP2/60W-PZB026B, material number R909437572. Nominal size: NG 107. Axial piston unit: bent-axis design, variable (A6V). Control device: proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V (EP2). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 4-hole (B). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R909437572
- Type code
- A6VMN107EP2/60W-PZB026B
- Group
- A6VMN 107
- Edition
- 06/2020

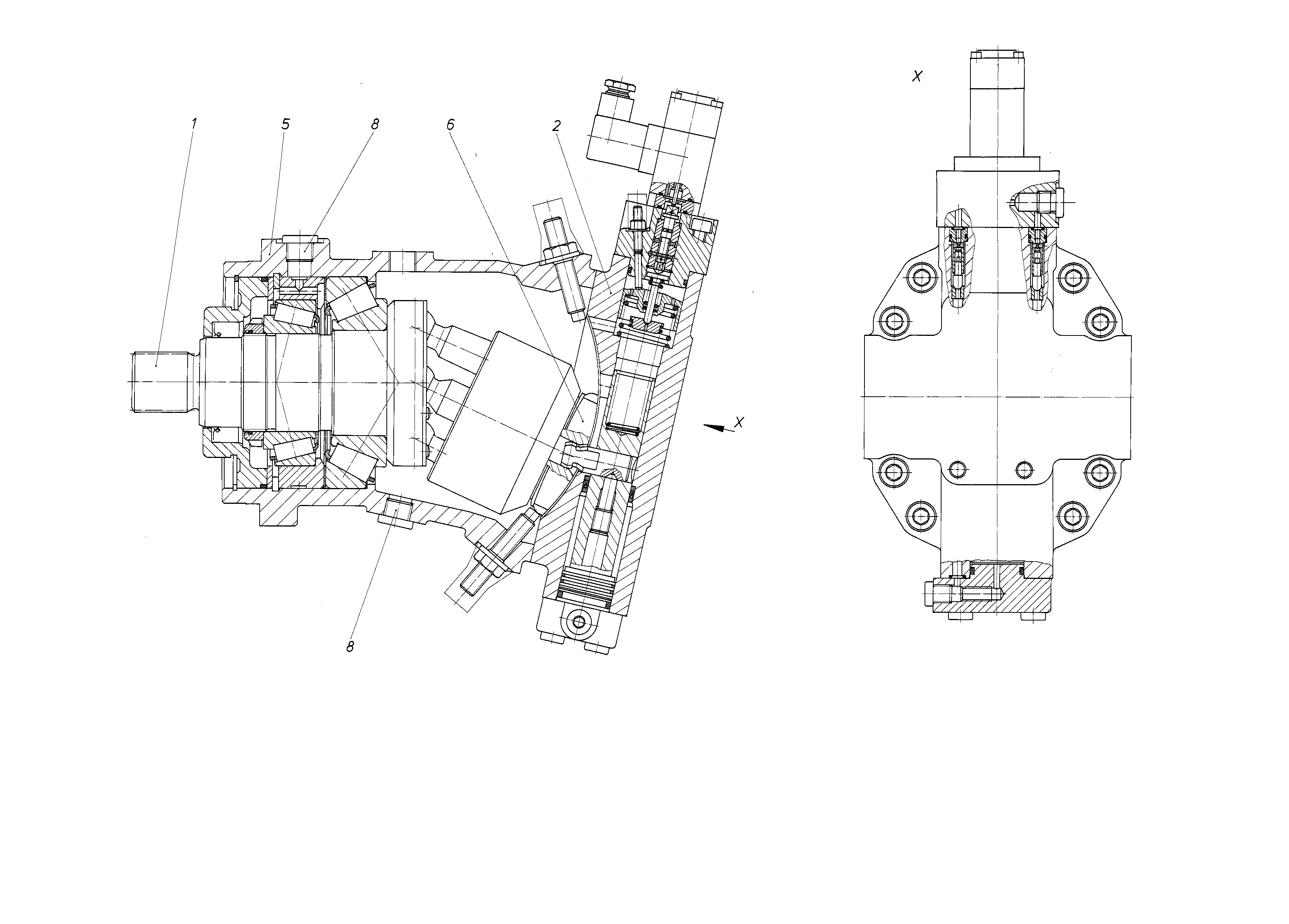

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909416231 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R909437573 | CONTROL Assembly parts list →L | 1 | |
| R909431117 | HOUSING | 1 | ||
| R909427400 | CONTROL LENS | 1 | ||
| 8 | R909153815 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 107 | 107 |
| Control device | Proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V | EP2 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2 4-hole | B |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
