Unit · AXIAL-PISTON MOTOR
AA6VM107HA1/60W-PPD520A-SR909437602
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM107HA1/60W-PPD520A-S, material number R909437602. Axial piston unit: bent-axis design, variable (AA6V). Operating mode: motor (M). Control device: automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 145 psi (10 bar) (HA1). Direction of rotation: viewed on drive shaft bidirectional (W). Mounting flange: SAE J744 - 4-bolt 165-4 (D). Working port: SAE working ports Without valve 0 A and B at side, opposite 52 (520). Beginning of control: at Vg min (standard for HA) (A). Standard/special version: special version (-S).
- Number
- R909437602
- Type code
- AA6VM107HA1/60W-PPD520A-S
- Group
- A6VM 107
- Edition
- 06/2020

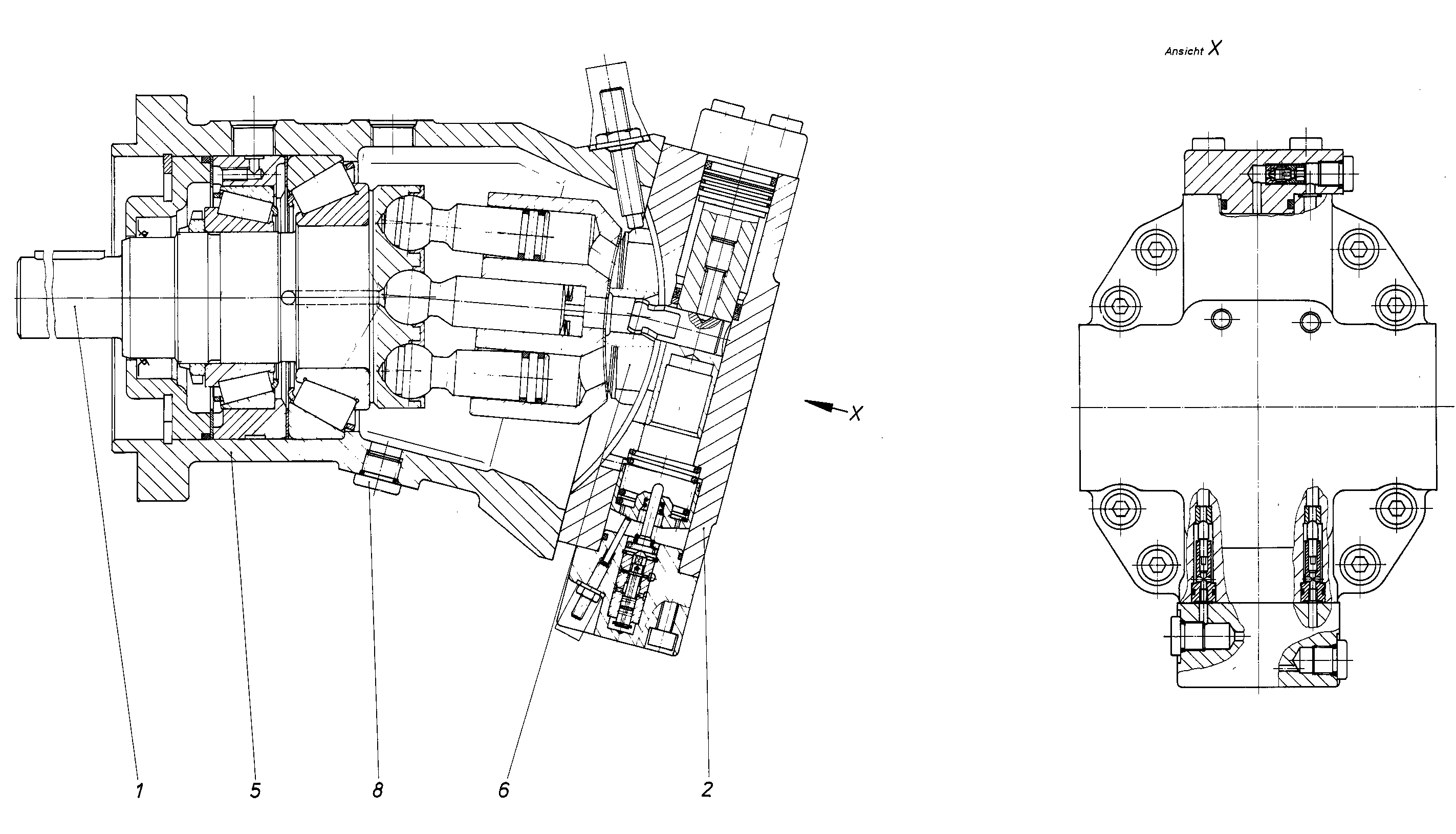

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909438065 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909422964 | CONTROL Assembly parts list →L | 1 | ||
| R909436832 | HOUSING | 1 | ||
| R909921788 | CONTROL LENS | 1 | ||
| R909153339 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | AA6V |
| Operating mode | Motor | M |
| Control device | Automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 145 psi (10 bar) | HA1 |
| Direction of rotation | Viewed on drive shaft bidirectional | W |
| Mounting flange | SAE J744 - 4-bolt 165-4 | D |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 52 | 520 |
| Beginning of control | At Vg min (standard for HA) | A |
| Standard/special version | Special version | -S |
