Unit · AXIAL-PISTON PUMP
AA7VTO107LRD/61L-PSD51-SR909437662

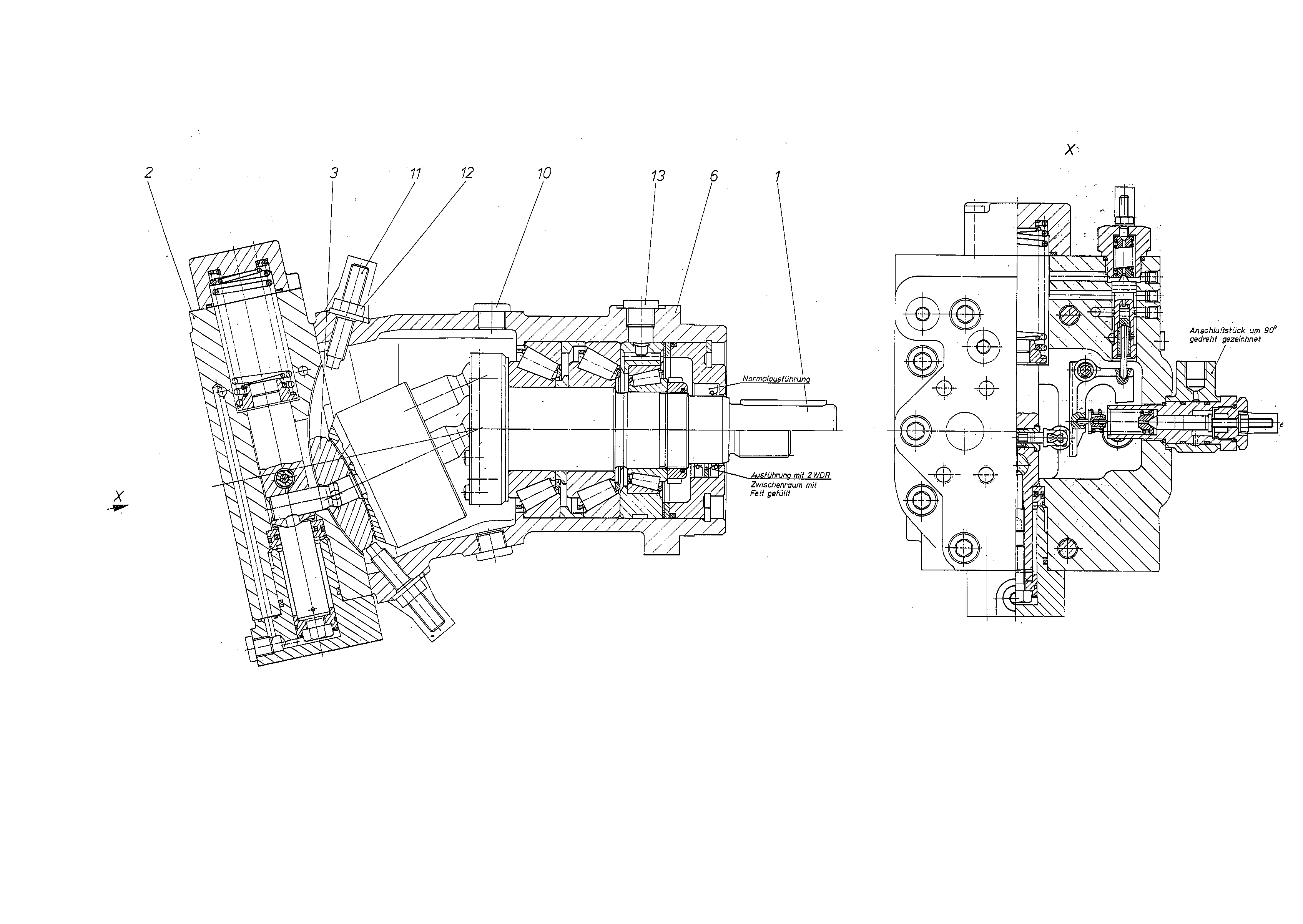

Axial piston pump Bosch Rexroth series A7VTO, type code AA7VTO107LRD/61L-PSD51-S, material number R909437662.
- Number
- R909437662
- Type code
- AA7VTO107LRD/61L-PSD51-S
- Group
- A7VTO 107
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909429182 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R909437663 | CONTROL Assembly parts list →L | 1 | |
| 3 | R909650454 | CONTROL LENS, LEFT-HAND ROTATION | 1 | |
| 6 | R909425279 | HOUSING | 1 | |
| R909153339 | SCREW PLUGD | 2 | ||
| R909447152 | SETSCREW Assembly parts list →L | 2 | ||
| R909152459 | SEALING NUTD | 2 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| 98 | R902166981 | SEAL KIT | 1 |
