Unit · AXIAL-PISTON PUMP
A11VG19MD+A11VG19MDR909437679
Axial piston pump Bosch Rexroth series A11VO, type code A11VG19MD+A11VG19MD, material number R909437679. Nominal size: NG 19. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V).
- Number
- R909437679
- Type code
- A11VG19MD+A11VG19MD
- Group
- A11VG 19
- Edition
- 06/2020

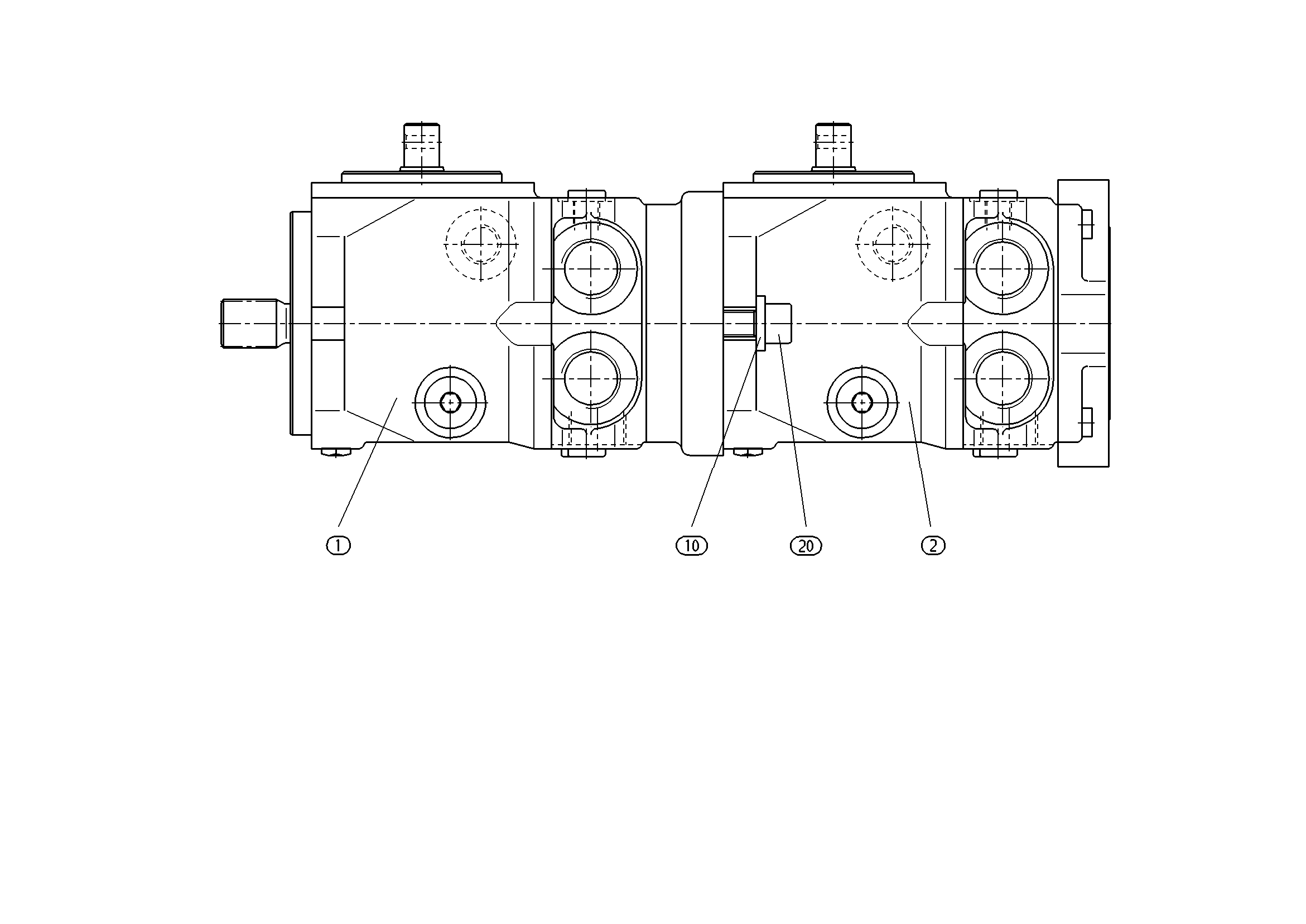

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909437677 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | |
| R909437678 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909430409 | WASHER | 2 | ||
| R909083089 | SOCKET HEAD CAP SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Size (NG) | 19 | 19 |
