Unit · AXIAL-PISTON PUMP
A8VO55SRH2/60R1-PZG05F48*G*R909437788
Axial piston pump Bosch Rexroth series A8VO, type code A8VO55SRH2/60R1-PZG05F48*G*, material number R909437788. Axial piston unit: bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar (A8V). Operating mode: double pump (parallel design), open circuit (O). Direction of rotation: viewed on drive shaft, right (R). Transmission ratio (ndrive / nrotary groups): i = 1 (1). Service line ports: SAE fl ange ports A and A on opposite sides (metric fastening thread) SAE fl ange port S at rear (metric fastening thread) (5). Auxiliary pump: with integrated auxiliary pump Standard (F).
- Number
- R909437788
- Type code
- A8VO55SRH2/60R1-PZG05F48*G*
- Group
- A8VO 55
- Edition
- 06/2020

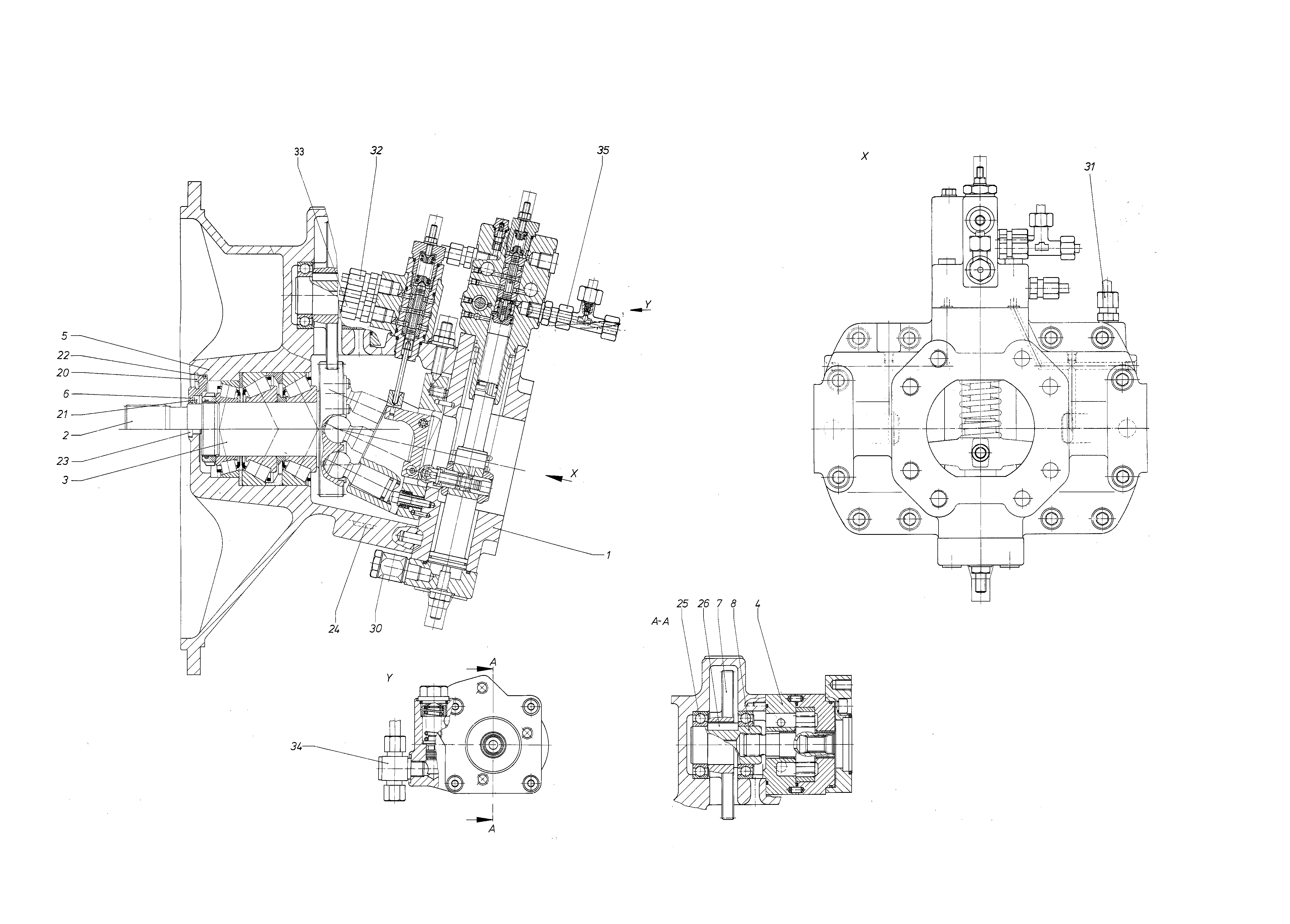

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909420536 | CONTROL Assembly parts list →L | 1 | |
| 2 | R909411241 | ROTARY GROUP Assembly parts list →L | 1 | |
| 3 | R909411242 | ROTARY GROUP Assembly parts list →L | 1 | |
| R909412250 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| 5 | R909430594 | PUMP HOUSING | 1 | |
| 6 | R909410982 | LOCKING RINGD | 1 | |
| 7 | R909425596 | TOOTHED WHEEL | 1 | |
| 8 | R909422705 | PLUG-IN SHAFT | 1 | |
| R909154609 | RETAINING RING | 1 | ||
| 21 | R909832131 | ROTARY SHAFT LIP SEALD | 1 | |
| R909083824 | O-RINGD | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 3 | ||
| 25 | R909085444 | DEEP-GROOVE BALL BEARING | 2 | |
| 26 | R909083980 | PARALLEL KEY | 1 | |
| R909423138 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| 31 | R909423139 | HYDRAULIC LINE Assembly parts list →L | 1 | |
| R909423140 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909423141 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| 34 | R909423142 | HYDRAULIC LINE Assembly parts list →L | 1 | |
| R909423353 | HYDRAULIC LINE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar | A8V |
| Operating mode | Double pump (parallel design), open circuit | O |
| Direction of rotation | Viewed on drive shaft, right | R |
| Transmission ratio (ndrive / nrotary groups) | i = 1 | 1 |
| Service line ports | SAE fl ange ports A and A on opposite sides (metric fastening thread) SAE fl ange port S at rear (metric fastening thread) | 5 |
| Auxiliary pump | With integrated auxiliary pump Standard | F |
