Unit · AXIAL-PISTON PUMP
A8VO80SRH2/6OR1-PZG05F48R909438171
Axial piston pump Bosch Rexroth series A8VO, type code A8VO80SRH2/6OR1-PZG05F48, material number R909438171.
- Number
- R909438171
- Type code
- A8VO80SRH2/6OR1-PZG05F48
- Group
- A8VO 80
- Edition
- 06/2020

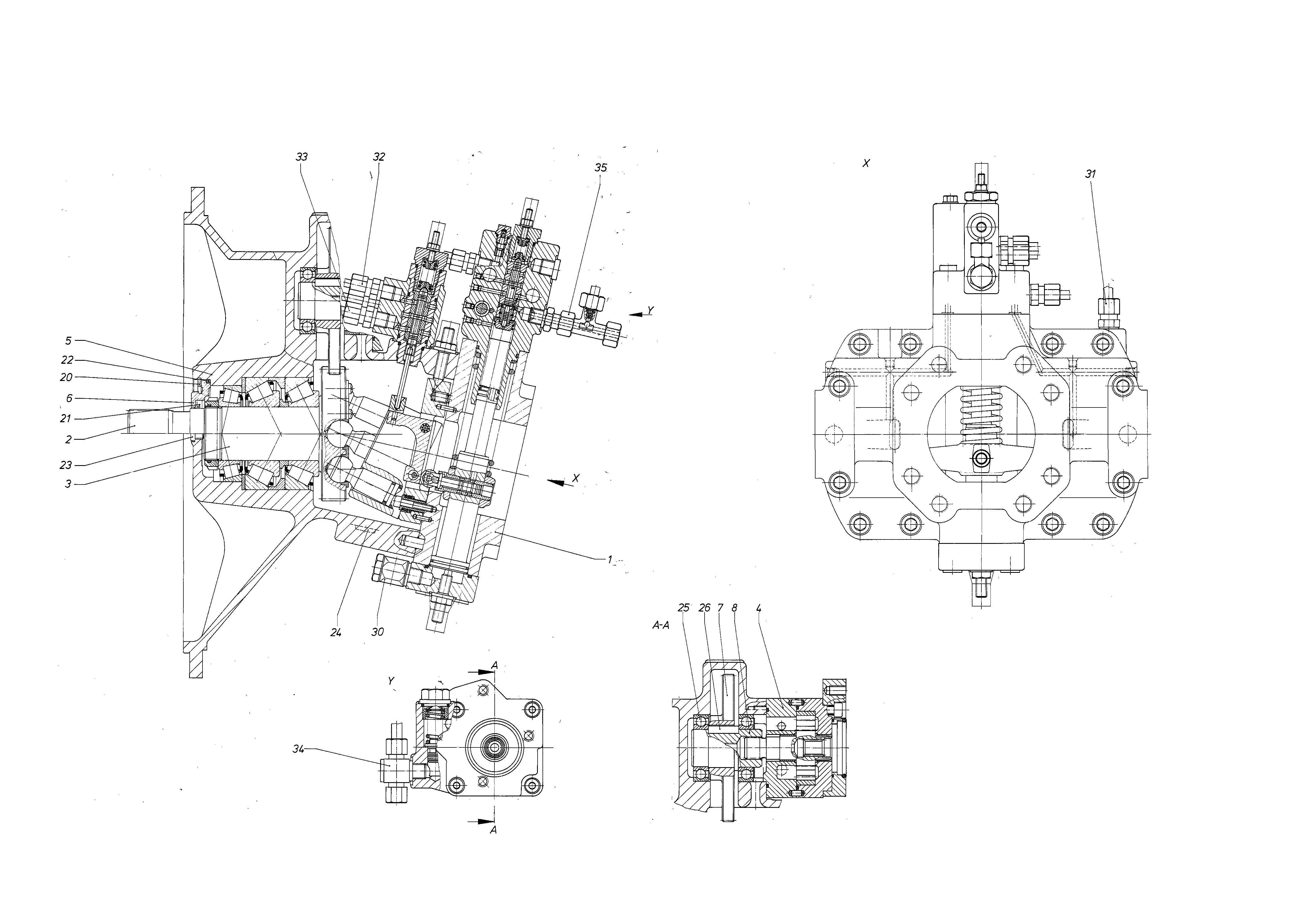

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909420419 | CONTROL Assembly parts list →L | 1 | ||
| 2 | R909411235 | ROTARY GROUP Assembly parts list →L | 1 | |
| R909411234 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909412250 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909430595 | PUMP HOUSING | 1 | ||
| 6 | R909410980 | LOCKING RINGD | 1 | |
| R909425596 | TOOTHED WHEEL | 1 | ||
| 8 | R909422705 | PLUG-IN SHAFT | 1 | |
| R909083417 | RETAINING RING | 1 | ||
| R909831232 | SHAFT SEALING RINGD | 1 | ||
| 22 | R909086948 | O-RINGD | 1 | |
| R909153364 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 3 | ||
| 25 | R909085444 | DEEP-GROOVE BALL BEARING | 2 | |
| 26 | R909083980 | PARALLEL KEY | 1 | |
| R909423348 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| 31 | R909423349 | HYDRAULIC LINE Assembly parts list →L | 1 | |
| R909423350 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909423351 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| 34 | R909423352 | HYDRAULIC LINE Assembly parts list →L | 1 | |
| R909423353 | HYDRAULIC LINE Assembly parts list →L | 1 |
