Unit · AXIAL-PISTON MOTOR
AA6VM160HD2D/60W-PSD52OBR909438437
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM160HD2D/60W-PSD52OB, material number R909438437. Nominal size: NG 160. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: proportional control, hydraulic ΔpSt = 25 bar (HD2). Pressure control (only for HD and EP): pressure control Fixed setting (D). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: parallel keyed shaft DIN 6885 (P). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R909438437
- Type code
- AA6VM160HD2D/60W-PSD52OB
- Group
- A6VM 160
- Edition
- 06/2020

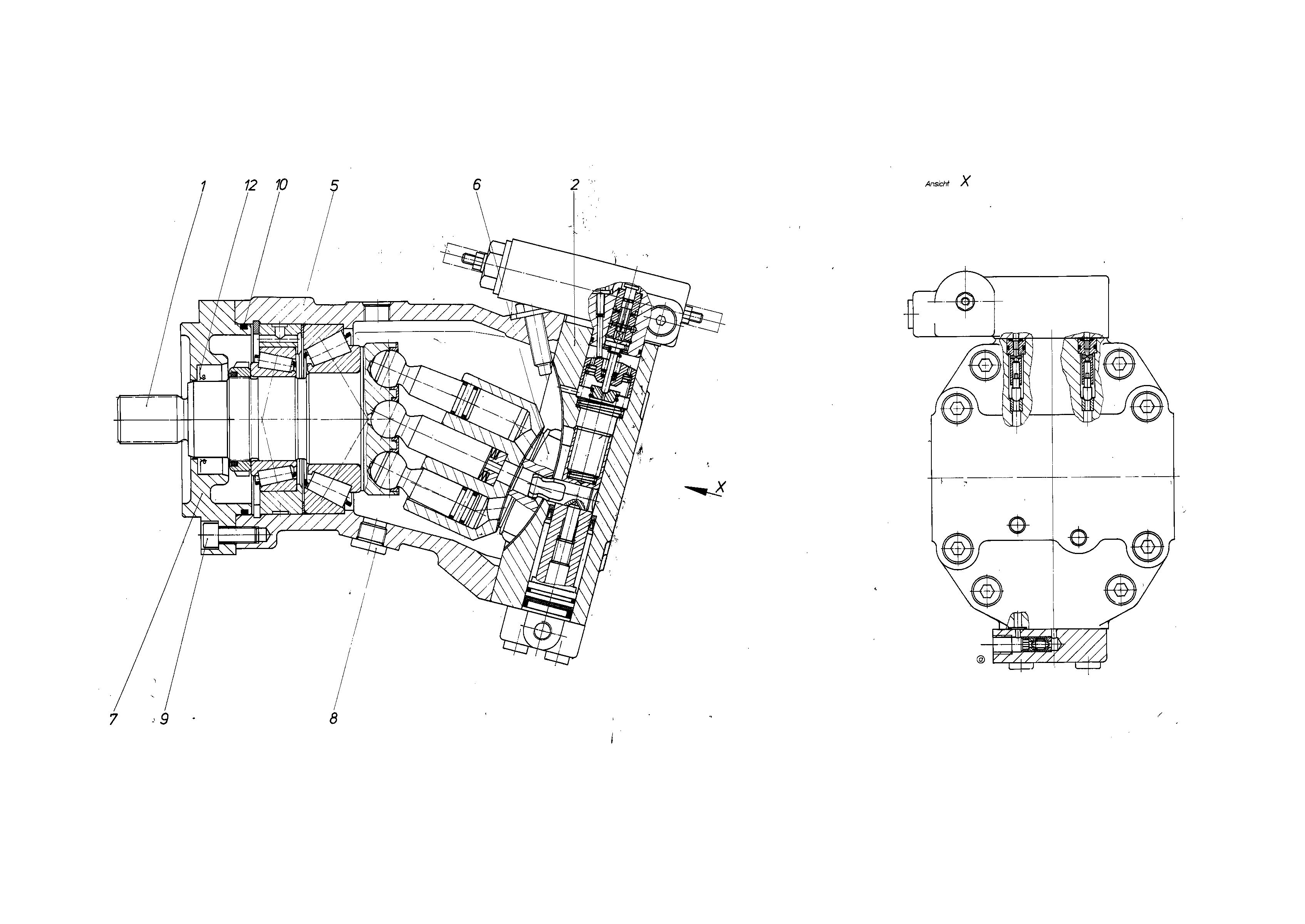

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909414757 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909438438 | CONTROL Assembly parts list →L | 1 | ||
| R909416970 | HOUSING | 1 | ||
| R909921790 | CONTROL LENS | 1 | ||
| R909422226 | FLANGE | 1 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| R909083034 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083832 | O-RINGD | 1 | ||
| R909831662 | ROTARY SHAFT LIP SEALD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 160 | 160 |
| Control device | Proportional control, hydraulic ΔpSt = 25 bar | HD2 |
| Pressure control (only for HD and EP) | Pressure control Fixed setting | D |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
