Unit · AXIAL-PISTON PUMP
A7VTO200LRC/61L-PZB01-SR909438566
Axial piston pump Bosch Rexroth series A7VTO, type code A7VTO200LRC/61L-PZB01-S, material number R909438566.
- Number
- R909438566
- Type code
- A7VTO200LRC/61L-PZB01-S
- Group
- A7VTO 200
- Edition
- 06/2020

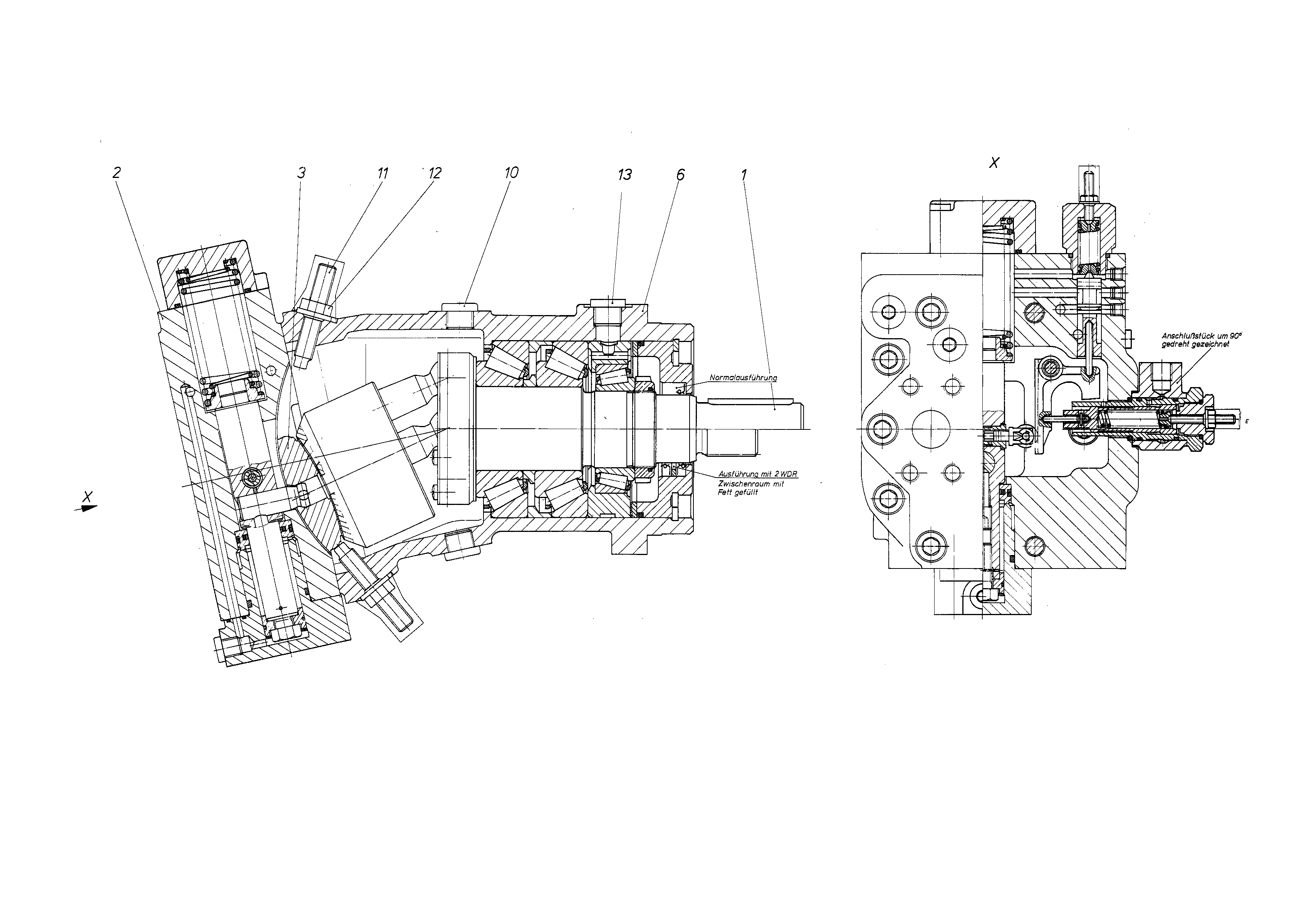

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909418608 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R909438567 | CONTROL Assembly parts list →L | 1 | |
| 3 | R909650458 | CONTROL LENS, LEFT-HAND ROTATION | 1 | |
| R909425284 | HOUSING | 1 | ||
| R909151694 | SCREW PLUGD | 2 | ||
| 11 | R909447152 | SETSCREW Assembly parts list →L | 2 | |
| R909152459 | SEALING NUTD | 2 | ||
| R909151694 | SCREW PLUGD | 1 |
