Unit · AXIAL-PISTON PUMP
A7VTO200LRGU/61R-DPB01R909438589
Axial piston pump Bosch Rexroth series A7VTO, type code A7VTO200LRGU/61R-DPB01, material number R909438589.
- Number
- R909438589
- Type code
- A7VTO200LRGU/61R-DPB01
- Group
- A7VTO 200
- Edition
- 06/2020

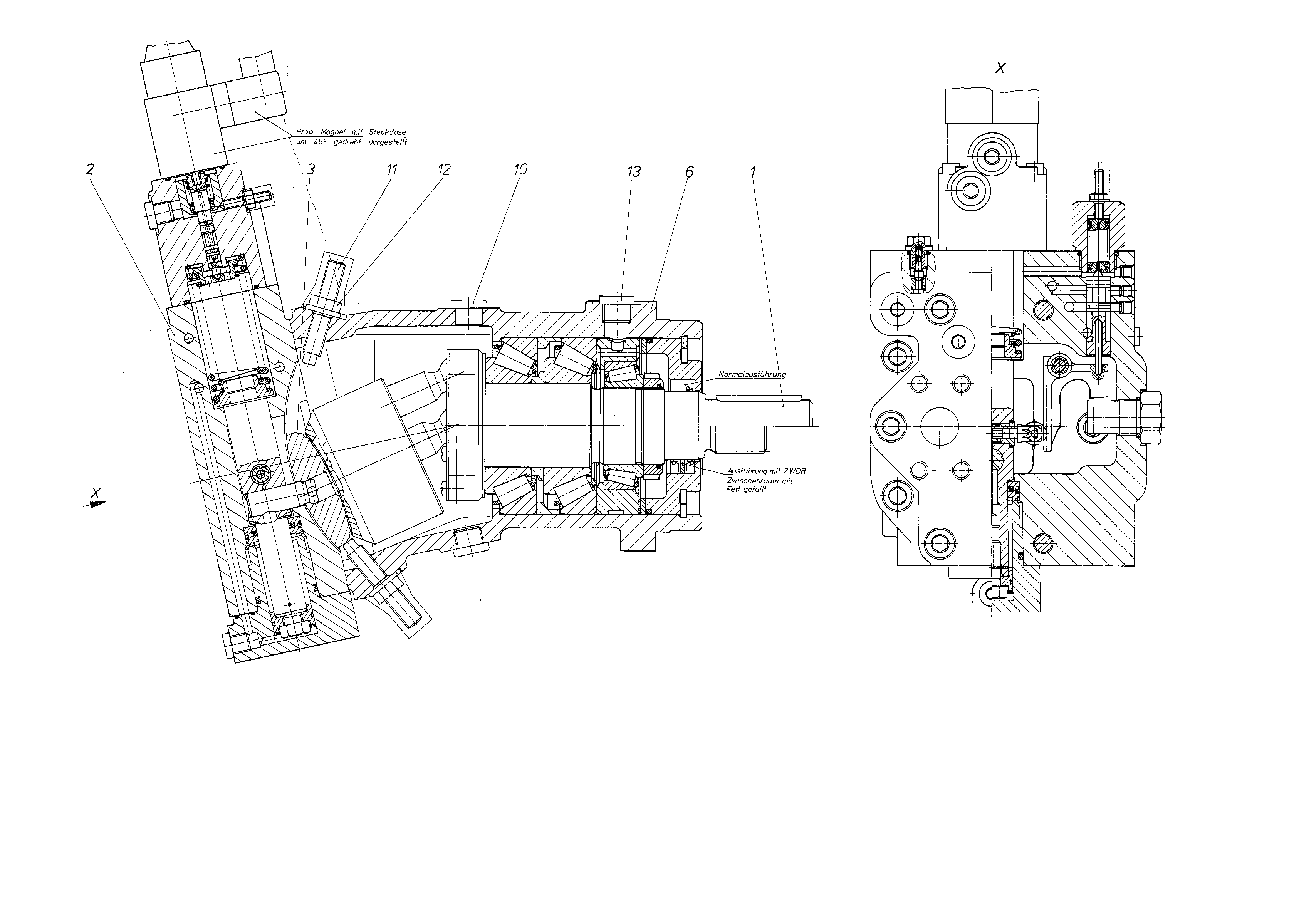

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909421964 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R909438590 | CONTROL Assembly parts list →L | 1 | |
| 3 | R909650457 | CONTROL LENS, RIGHT-HAND ROTATION | 1 | |
| R909425284 | HOUSING | 1 | ||
| R909151694 | SCREW PLUGD | 2 | ||
| 11 | R909447152 | SETSCREW Assembly parts list →L | 2 | |
| R909152459 | SEALING NUTD | 2 | ||
| R909151694 | SCREW PLUGD | 1 |
