Unit · AXIAL-PISTON PUMP
A11VG19HD1/10R-438924*G*R909438924
Axial piston pump Bosch Rexroth series A11VO, type code A11VG19HD1/10R-438924*G*, material number R909438924. Nominal size: NG 19. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Direction of rotation: viewed on drive shaft clockwise (R).
- Number
- R909438924
- Type code
- A11VG19HD1/10R-438924*G*
- Group
- A11VG 19
- Edition
- 06/2020

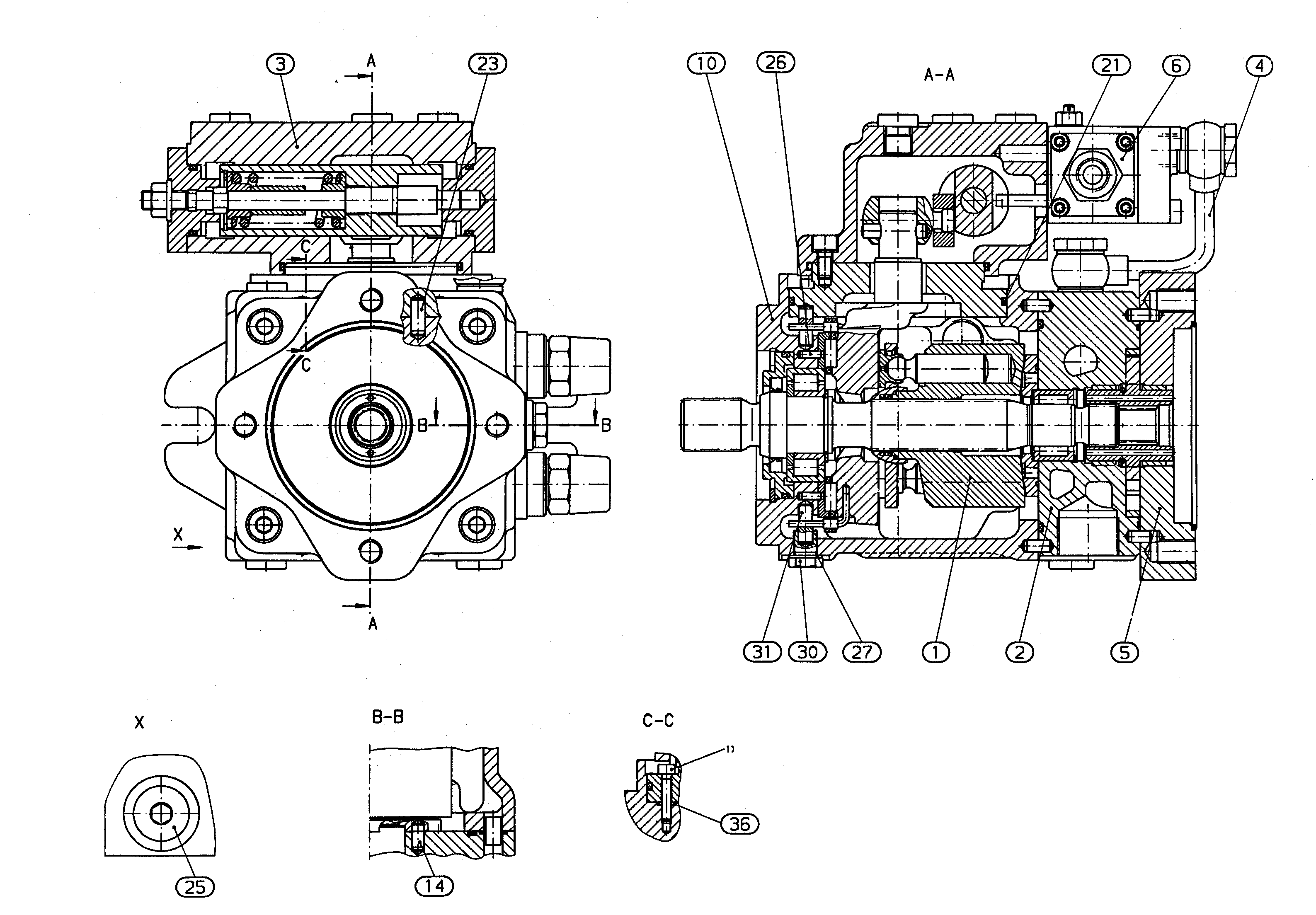

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909438459 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909429700 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909441789 | CONTROL Assembly parts list →L | 1 | ||
| R909429271 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909434235 | INTERNAL GEAR PUMP ASSEMBLY Assembly parts list →L | 1 | ||
| R909071506 | CONTROL UNIT Assembly parts list →L | 1 | ||
| R909443437 | HOUSING | 1 | ||
| R909436324 | ECCENTRIC BOLT | 1 | ||
| R909085568 | O-RINGD | 1 | ||
| R913009677 | STRAIGHT PIN | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R913017227 | SLOTTED SPRING PIN | 2 | ||
| R909152725 | SEAL RINGD | 1 | ||
| R909436089 | SCREW PLUG | 1 | ||
| R909436088 | PIVOT PIN | 2 | ||
| 33 | R909081717 | LOCKING PIN | 1 | |
| R909157248 | O-RINGD | 6 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Size (NG) | 19 | 19 |
| Index | Size 40 … 130 | 0 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
