Unit · AXIAL-PISTON MOTOR
A6VMN160HD1D/60W-PZB016BR909441080
Axial piston motor Bosch Rexroth series A6VM, type code A6VMN160HD1D/60W-PZB016B, material number R909441080. Nominal size: NG 160. Axial piston unit: bent-axis design, variable (A6V). Control device: proportional control, hydraulic ΔpSt = 10 bar (HD1). Pressure control (only for HD and EP): pressure control Fixed setting (D). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 4-hole (B). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R909441080
- Type code
- A6VMN160HD1D/60W-PZB016B
- Group
- A6VMN 160
- Edition
- 06/2020

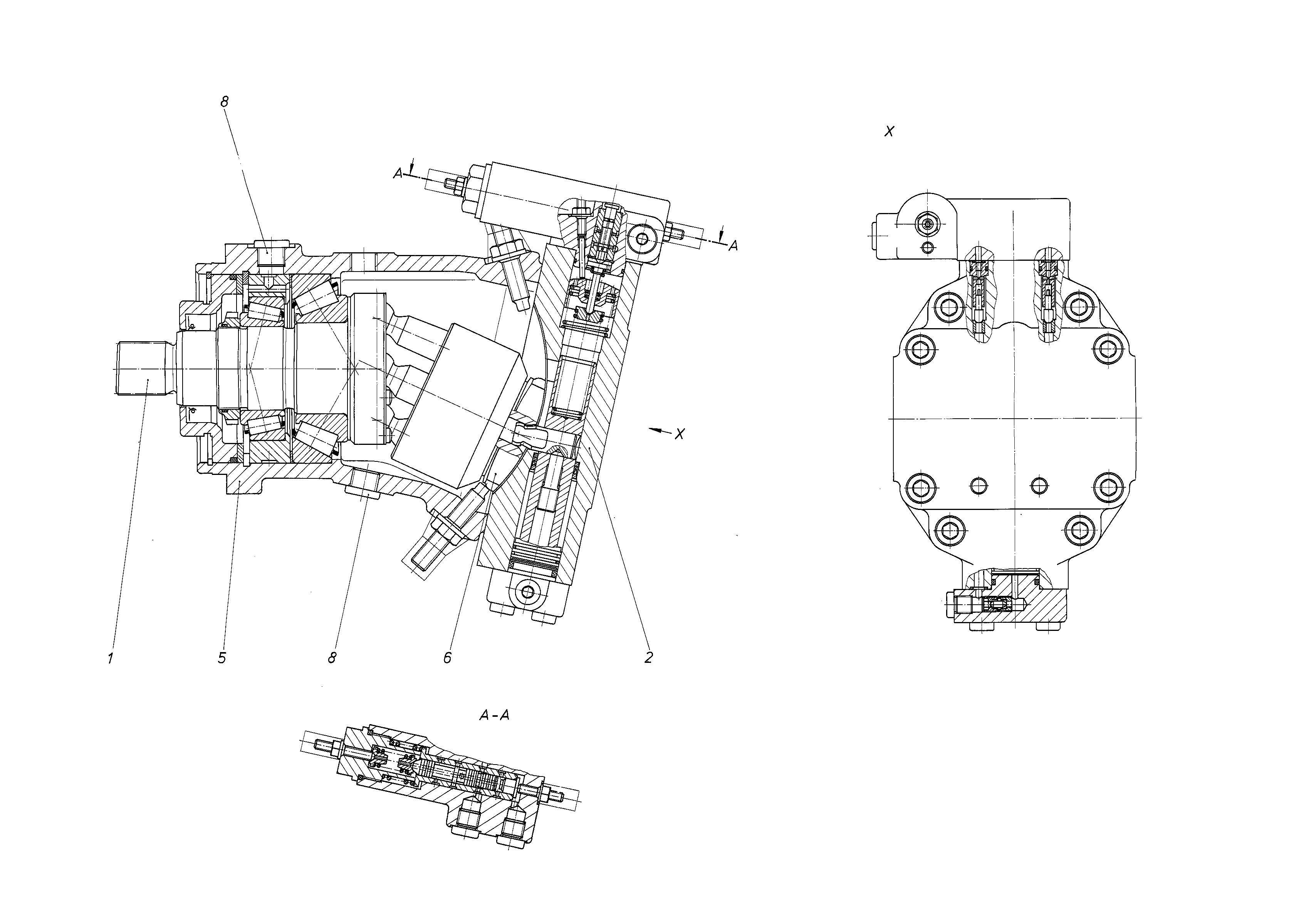

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909416230 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909441081 | CONTROL Assembly parts list →L | 1 | ||
| R909431761 | HOUSING | 1 | ||
| R909427635 | CONTROL LENS | 1 | ||
| R909151694 | SCREW PLUGD | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 160 | 160 |
| Control device | Proportional control, hydraulic ΔpSt = 10 bar | HD1 |
| Pressure control (only for HD and EP) | Pressure control Fixed setting | D |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2 4-hole | B |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
