Unit · AXIAL-PISTON PUMP
AA11VG50EP11/12L-PSC60F042DR909441244
Axial piston pump Bosch Rexroth series A11VO, type code AA11VG50EP11/12L-PSC60F042D, material number R909441244. Nominal size: NG 50. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Direction of rotation: viewed on drive shaft counter-clockwise (L). Drive shaft: splined shaft ANSI B92.1a‒1976 for single pump (S). Mounting flange: SAE J744 ‒ 2-hole (C).
- Number
- R909441244
- Type code
- AA11VG50EP11/12L-PSC60F042D
- Group
- A11VG 50
- Edition
- 06/2020

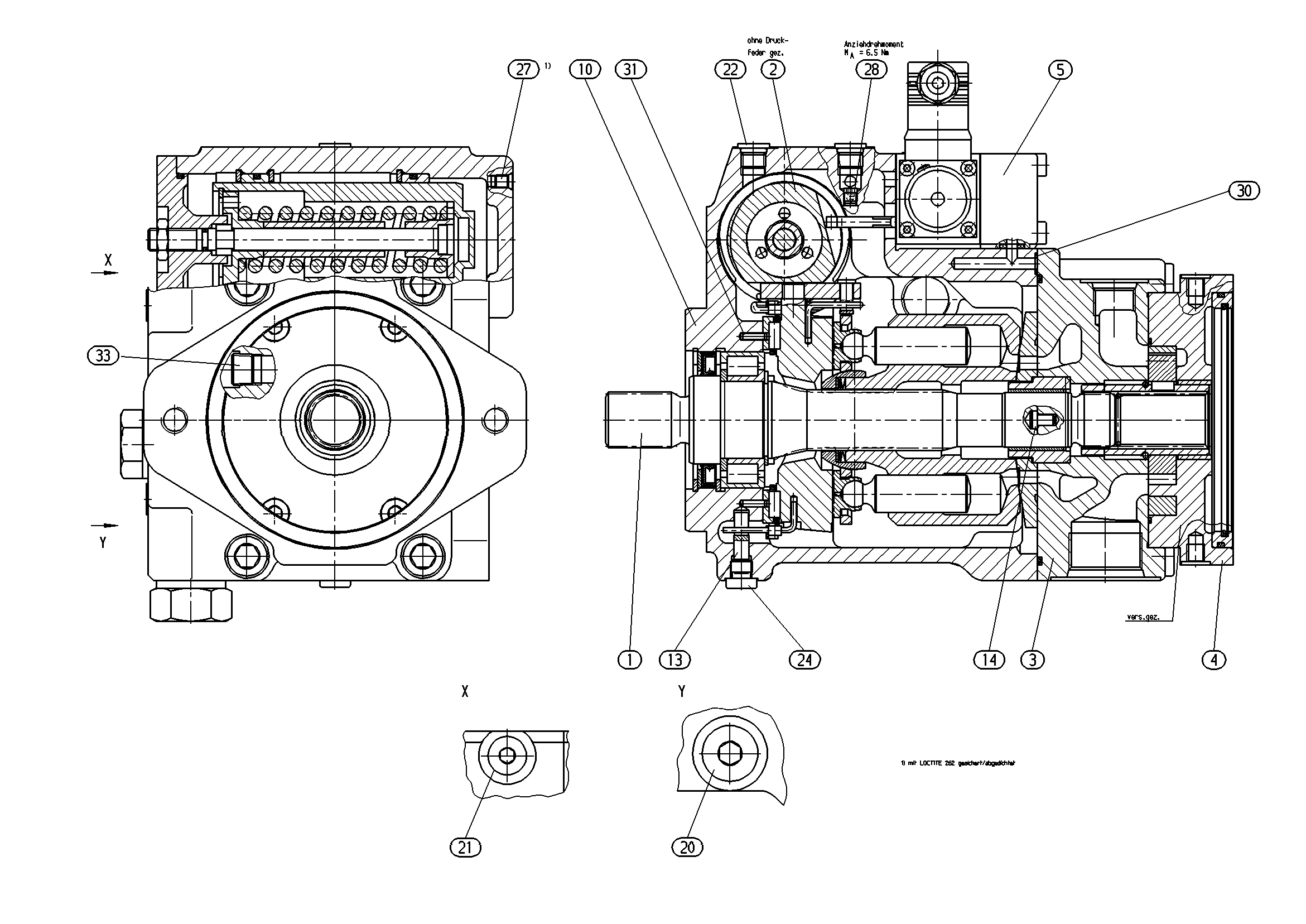

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909438122 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909441233 | CONTROL Assembly parts list →L | 1 | ||
| R909446989 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909441843 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909601622 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R909651362 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 1 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| R909154478 | SCREW PLUGD | 3 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909156493 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909087912 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Size (NG) | 50 | 50 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Drive shaft | Splined shaft ANSI B92.1a‒1976 for single pump | S |
| Mounting flange | SAE J744 ‒ 2-hole | C |
