Unit · AXIAL-PISTON MOTOR
A2FE107/61W-VZL190JR909441512
Axial piston motor Bosch Rexroth series A2FE, type code A2FE107/61W-VZL190J, material number R909441512. Axial piston unit: bent-axis design, fixed (A2F). Operating mode: motor, plug-in version (E). Direction of rotation: viewed on drive shaft, bidirectional (W). Seal material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 2-whole (L).
- Number
- R909441512
- Type code
- A2FE107/61W-VZL190J
- Group
- A2FE 107
- Edition
- 07/2020

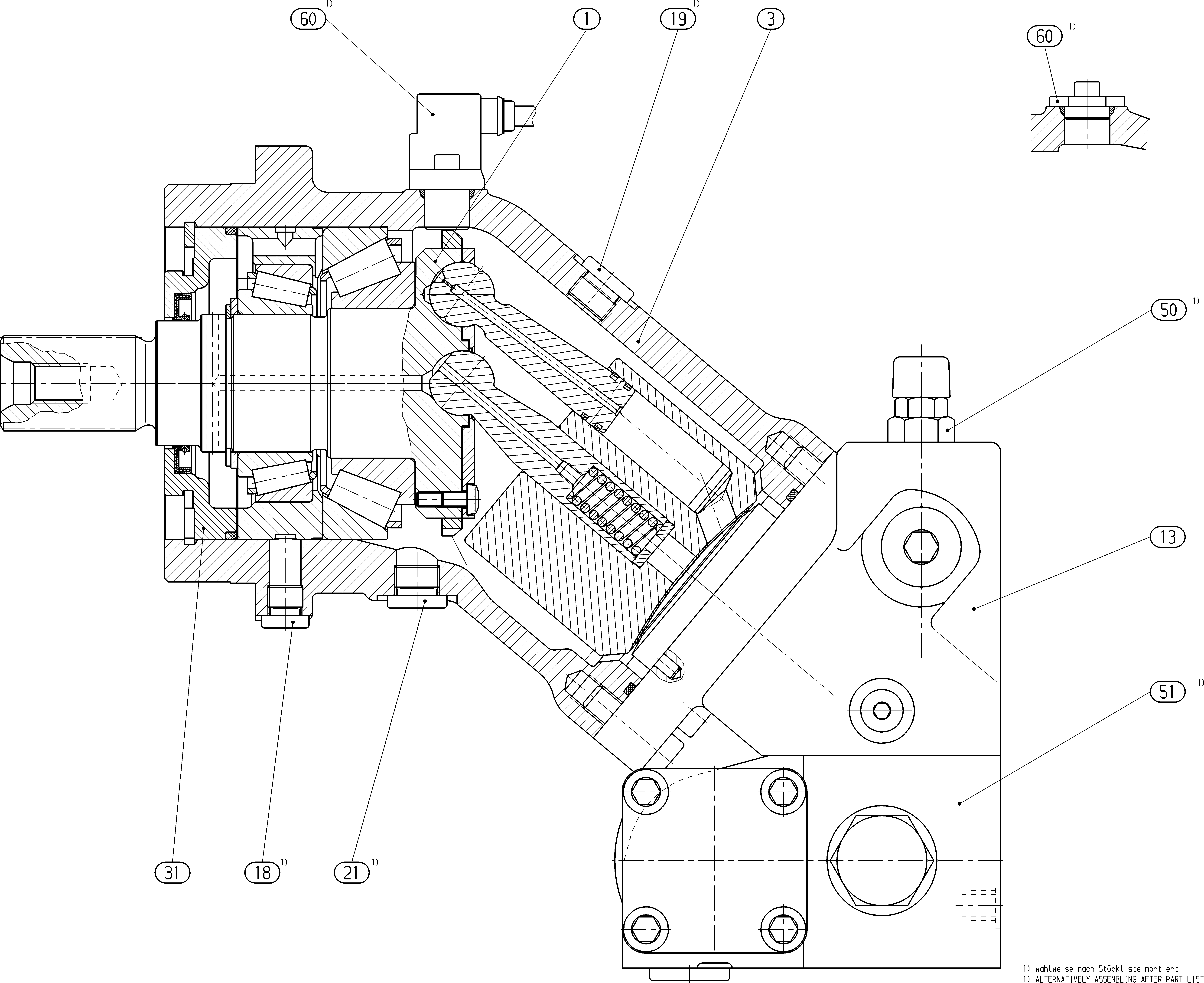

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902033345 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902042335 | HOUSING | 1 | ||
| R909611009 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902153544 | LOCKING RING Assembly parts list →L | 1 | ||
| 98 | R902002219 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, fixed | A2F |
| Operating mode | Motor, plug-in version | E |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Seal material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2 2-whole | L |
