Unit · AXIAL-PISTON PUMP
A8VO80LR3DS/60R1-PZG05K04R909441522
Axial piston pump Bosch Rexroth series A8VO, type code A8VO80LR3DS/60R1-PZG05K04, material number R909441522.
- Number
- R909441522
- Type code
- A8VO80LR3DS/60R1-PZG05K04
- Group
- A8VO 80
- Edition
- 06/2020

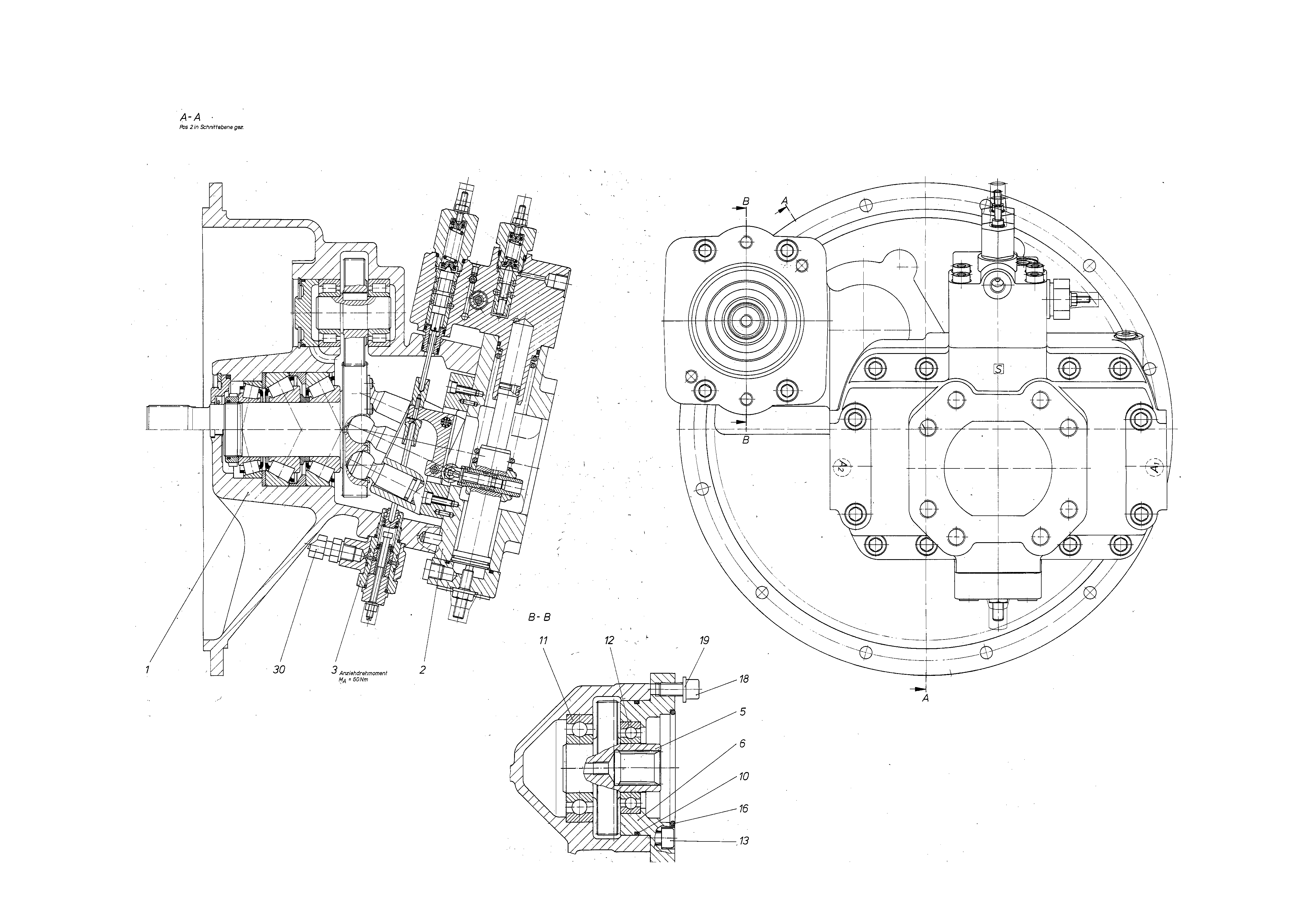

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909441523 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | |
| 2 | R909441524 | CONTROL Assembly parts list →L | 1 | |
| R909434668 | CONTROL VALVE Assembly parts list →L | 1 | ||
| 5 | R902045096 | TOOTHED WHEEL | 1 | |
| 6 | R902099415 | FLANGE | 1 | |
| 10 | R909152647 | O-RINGD | 1 | |
| 11 | R913023203 | DEEP-GROOVE BALL BEARING | 1 | |
| R909150668 | DEEP-GROOVE BALL BEARING | 1 | ||
| R909083086 | SOCKET HEAD CAP SCREW | 4 | ||
| R909085365 | O-RINGD | 1 | ||
| 18 | R909083087 | SOCKET HEAD CAP SCREW | 2 | |
| 2916010115 | WASHER | 2 | ||
| 30 | R909441551 | HYDRAULIC LINE Assembly parts list →L | 1 |
