Unit · AXIAL-PISTON PUMP
A8VO107LA1KH1/60R1-NZG05F00R909441800
Axial piston pump Bosch Rexroth series A8VO, type code A8VO107LA1KH1/60R1-NZG05F00, material number R909441800. Axial piston unit: bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar (A8V). Operating mode: double pump (parallel design), open circuit (O). Control devices: individual power controller with pilot pressure power override, with hydraulic power coupling and hydraulic lift limitation Negative control (LA1KH1). Direction of rotation: viewed on drive shaft, right (R). Transmission ratio (ndrive / nrotary groups): i = 1 (1). Service line ports: SAE fl ange ports A and A on opposite sides (metric fastening thread) SAE fl ange port S at rear (metric fastening thread) (5). Auxiliary pump: with integrated auxiliary pump Standard (F). Valves: without valves (only for the version without auxiliary pump, U) (0). Standard / special version: standard version (0).
- Number
- R909441800
- Type code
- A8VO107LA1KH1/60R1-NZG05F00
- Group
- A8VO 107
- Edition
- 06/2020

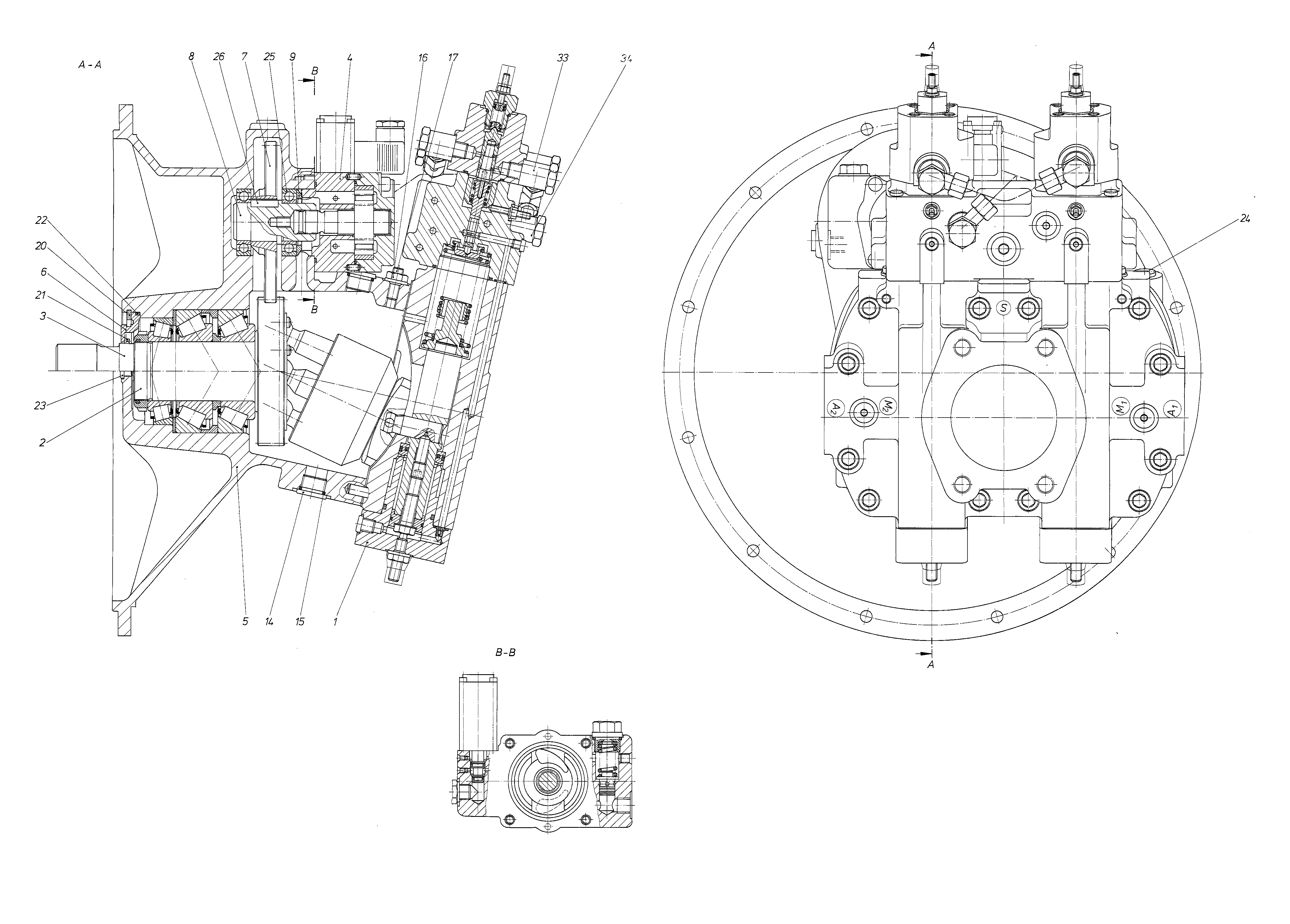

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909441799 | CONTROL Assembly parts list →L | 1 | ||
| R909411736 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909411737 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909438217 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909439514 | PUMP HOUSING | 1 | ||
| R909652033 | LOCKING RING | 1 | ||
| R909425597 | TOOTHED WHEEL | 1 | ||
| R909439534 | PLUG-IN SHAFT | 1 | ||
| R909443895 | SPACER RING | 1 | ||
| R909083225 | SCREW PLUG | 1 | ||
| R909083758 | O-RINGD | 1 | ||
| R909152426 | SEALING NUTD | 1 | ||
| R909083500 | SETSCREW | 1 | ||
| R909083418 | RETAINING RING | 1 | ||
| R909831233 | ROTARY SHAFT LIP SEALD | 1 | ||
| R909084426 | O-RINGD | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 4 | ||
| R909085444 | DEEP-GROOVE BALL BEARING | 2 | ||
| R909083980 | PARALLEL KEY | 1 | ||
| R909441796 | HYDRAULIC LINE Assembly parts list →L | 2 | ||
| R909441797 | HYDRAULIC LINE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar | A8V |
| Operating mode | Double pump (parallel design), open circuit | O |
| Control devices | Individual power controller with pilot pressure power override, with hydraulic power coupling and hydraulic lift limitation Negative control | LA1KH1 |
| Direction of rotation | Viewed on drive shaft, right | R |
| Transmission ratio (ndrive / nrotary groups) | i = 1 | 1 |
| Service line ports | SAE fl ange ports A and A on opposite sides (metric fastening thread) SAE fl ange port S at rear (metric fastening thread) | 5 |
| Auxiliary pump | With integrated auxiliary pump Standard | F |
| Valves | Without valves (only for the version without auxiliary pump, U) | 0 |
| Standard / special version | Standard version | 0 |
