Unit · AXIAL-PISTON PUMP
AA11VG35HW1/12R-PSC60N004E-SR909442017
Axial piston pump Bosch Rexroth series A11VO, type code AA11VG35HW1/12R-PSC60N004E-S, material number R909442017. Nominal size: NG 35. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: splined shaft ANSI B92.1a‒1976 for single pump (S). Mounting flange: SAE J744 ‒ 2-hole (C). Through drive: ‒ ‒ (N00). Standard/special version: special version (S).
- Number
- R909442017
- Type code
- AA11VG35HW1/12R-PSC60N004E-S
- Group
- A11VG 35
- Edition
- 06/2020

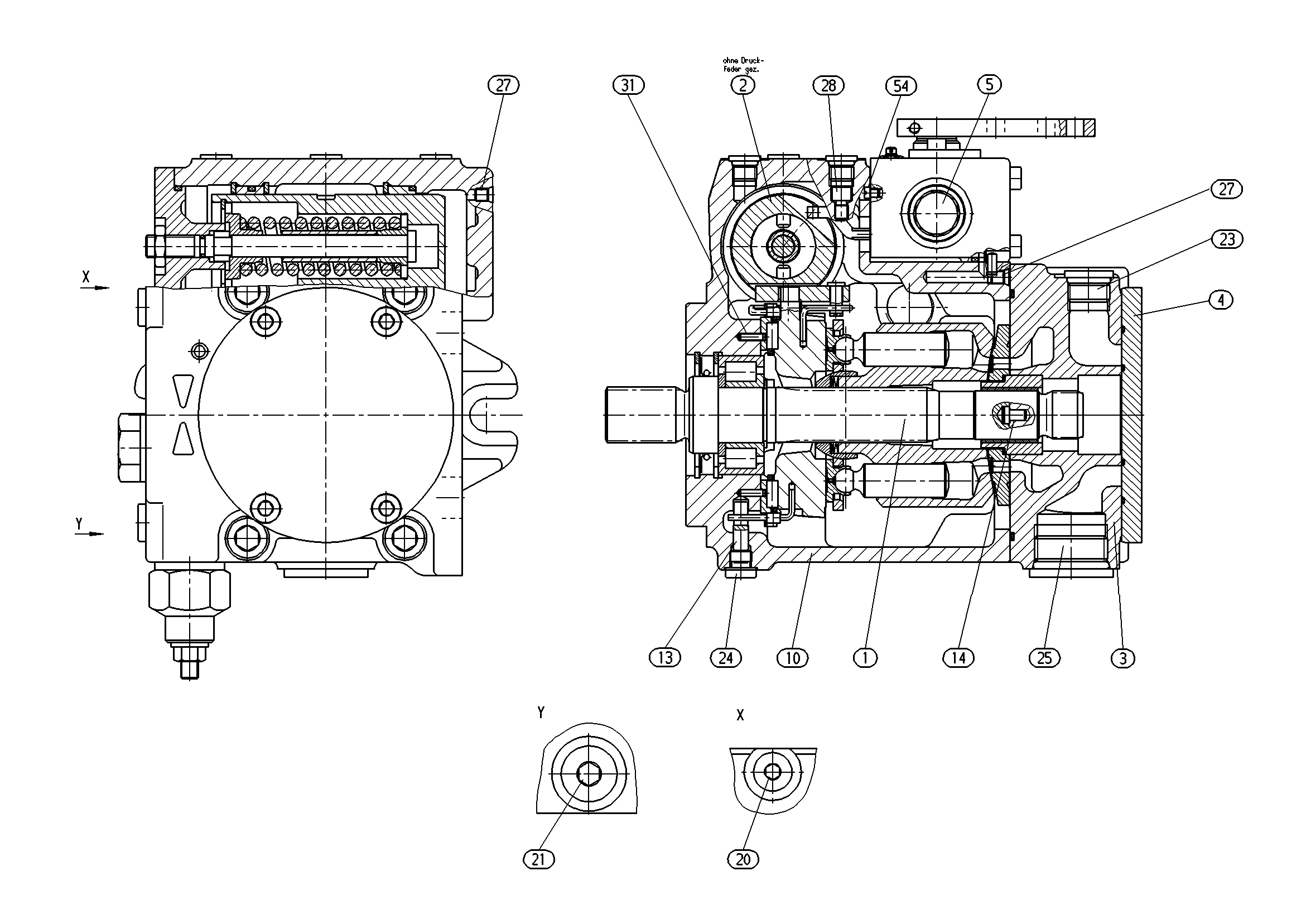

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909438034 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909441557 | CONTROL Assembly parts list →L | 1 | ||
| R909441989 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909441940 | PUMP COVER Assembly parts list →L | 1 | ||
| R902010416 | CONTROL UNIT Assembly parts list →L | 1 | ||
| R909651349 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 1 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| 22 | R909154478 | SCREW PLUGD | 5 | |
| R909153338 | SCREW PLUGD | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909153378 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R902190718 | THROTTLE VALVE Assembly parts list →L | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R902601866 | NOZZLE | 1 | ||
| 98 | R902221172 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Size (NG) | 35 | 35 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Splined shaft ANSI B92.1a‒1976 for single pump | S |
| Mounting flange | SAE J744 ‒ 2-hole | C |
| Through drive | ‒ ‒ | N00 |
| Standard/special version | Special version | S |
