Unit · AXIAL-PISTON MOTOR
AA6VM200HD1/60W-PSD527BR909442038
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM200HD1/60W-PSD527B, material number R909442038. Axial piston unit: bent-axis design, variable (AA6V). Operating mode: motor (M). Control device: proportional control, hydraulic ΔpSt = 145 psi (10 bar) (HD1). Direction of rotation: viewed on drive shaft bidirectional (W). Drive shaft: splined shaft ANSI B92.1a (S). Mounting flange: SAE J744 - 4-bolt 165-4 (D). Working port: SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 (527). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R909442038
- Type code
- AA6VM200HD1/60W-PSD527B
- Group
- A6VM 200
- Edition
- 06/2020

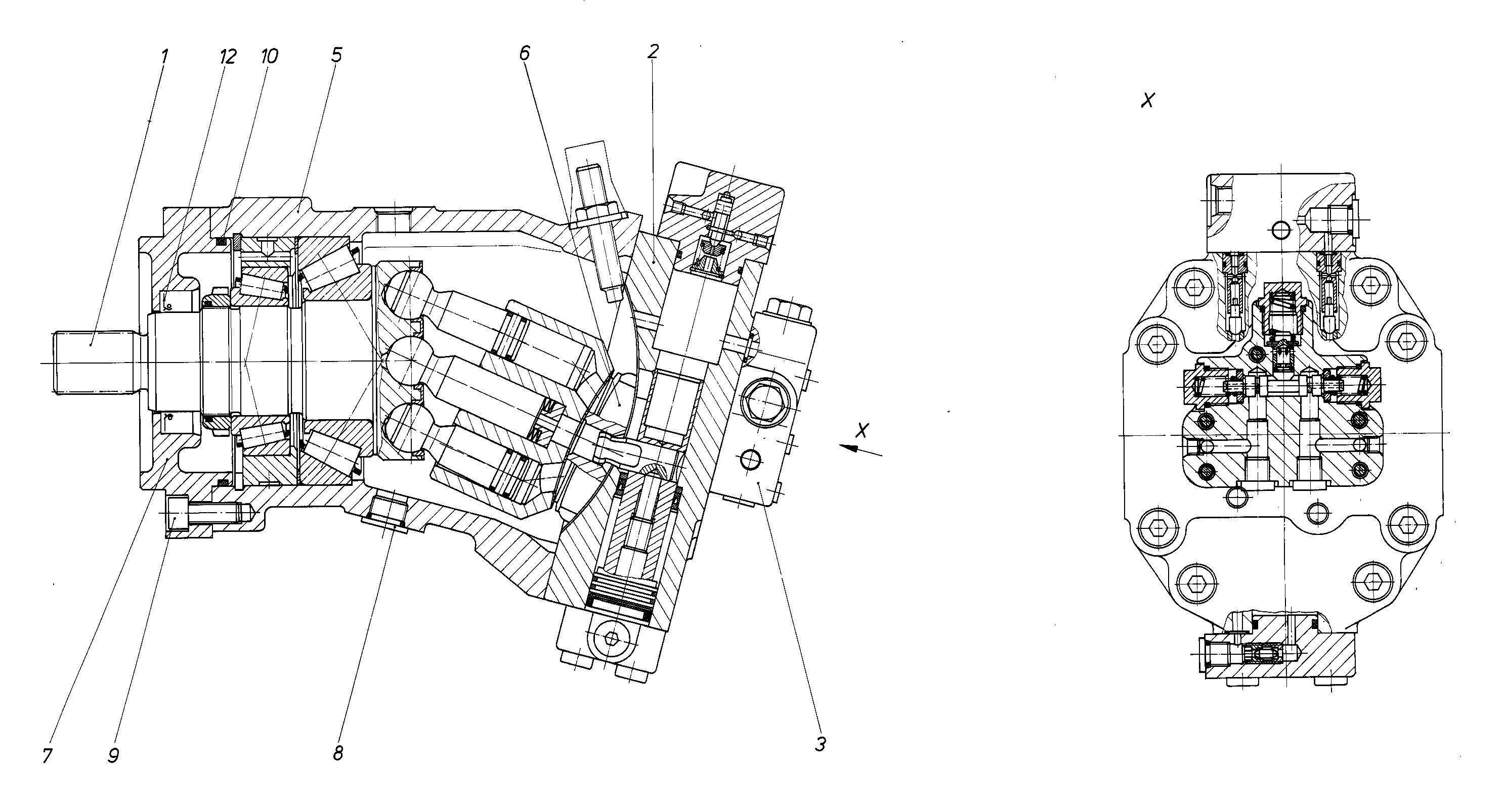

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909420125 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909442039 | CONTROL Assembly parts list →L | 1 | ||
| R909420889 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R909419602 | HOUSING | 1 | ||
| R909921791 | CONTROL LENS | 1 | ||
| R909419562 | FLANGE | 1 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| R909083189 | SOCKET HEAD CAP SCREW | 4 | ||
| R909157237 | O-RINGD | 1 | ||
| R909831663 | ROTARY SHAFT LIP SEALD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | AA6V |
| Operating mode | Motor | M |
| Control device | Proportional control, hydraulic ΔpSt = 145 psi (10 bar) | HD1 |
| Direction of rotation | Viewed on drive shaft bidirectional | W |
| Drive shaft | Splined shaft ANSI B92.1a | S |
| Mounting flange | SAE J744 - 4-bolt 165-4 | D |
| Working port | SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 | 527 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
