Unit · AXIAL-PISTON MOTOR
A6VM200HD1/60W-PXB020B-SR909442088
Axial piston motor Bosch Rexroth series A6VM, type code A6VM200HD1/60W-PXB020B-S, material number R909442088. Nominal size: NG 200. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: proportional control, hydraulic ΔpSt = 10 bar (HD1). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: parallel keyed shaft DIN 6885 (P). Working port: SAE working ports Without valve 0 A and B at side, opposite 02 (020). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B). Standard/special version: special version (-S).
- Number
- R909442088
- Type code
- A6VM200HD1/60W-PXB020B-S
- Group
- A6VM 200
- Edition
- 06/2020

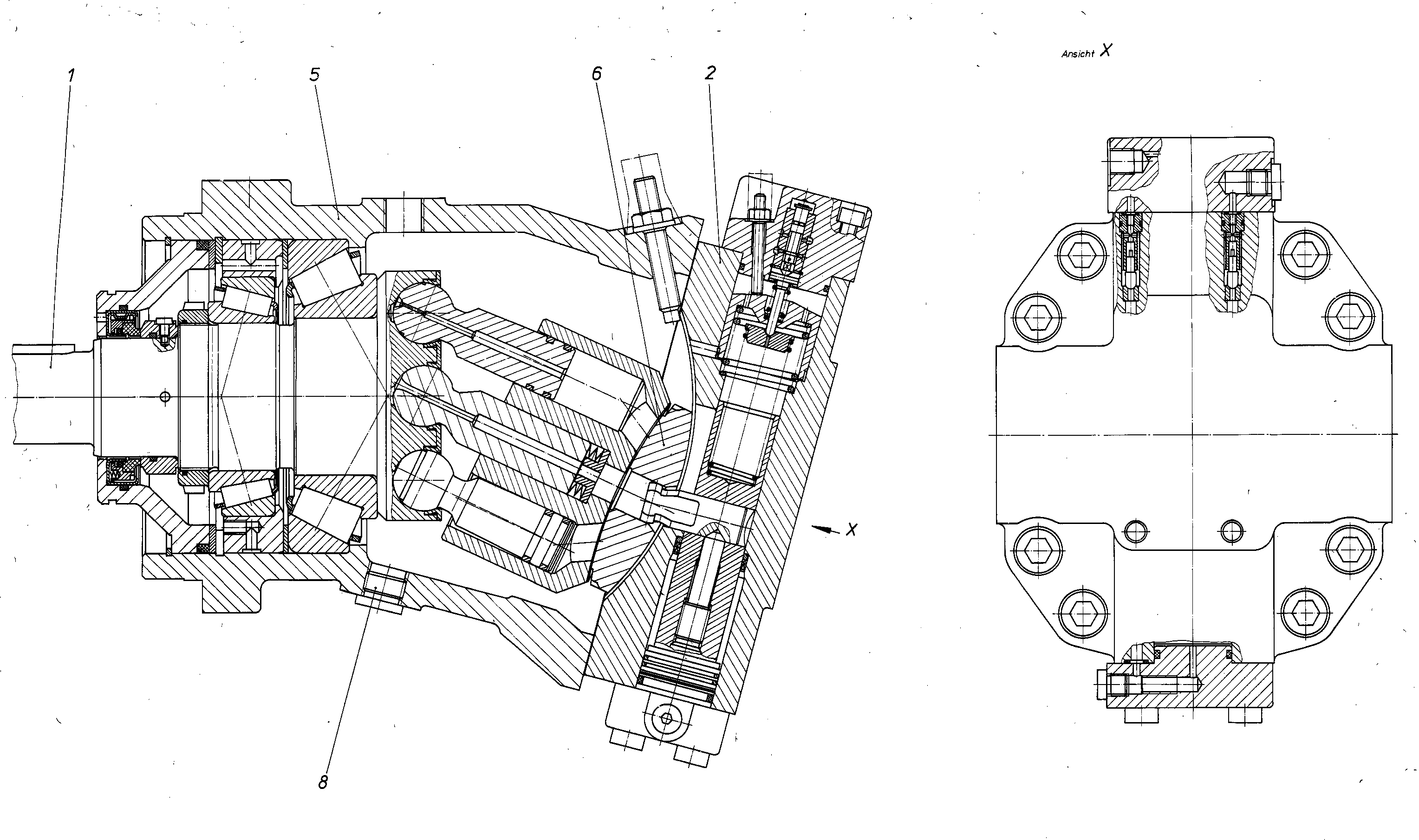

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909429315 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909442102 | CONTROL Assembly parts list →L | 1 | ||
| R909431041 | HOUSING | 1 | ||
| R909921791 | CONTROL LENS | 1 | ||
| R909156654 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 200 | 200 |
| Control device | Proportional control, hydraulic ΔpSt = 10 bar | HD1 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 02 | 020 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
| Standard/special version | Special version | -S |
