Unit · AXIAL-PISTON MOTOR
A6VMN160HA1/60W-PZB027AR909442187
Axial piston motor Bosch Rexroth series A6VM, type code A6VMN160HA1/60W-PZB027A, material number R909442187. Nominal size: NG 160. Axial piston unit: bent-axis design, variable (A6V). Control device: automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 10 bar (HA1). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 4-hole (B). Working port: SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 (027). Beginning of control: at Vg min (standard for HA) (A).
- Number
- R909442187
- Type code
- A6VMN160HA1/60W-PZB027A
- Group
- A6VMN 160
- Edition
- 06/2020

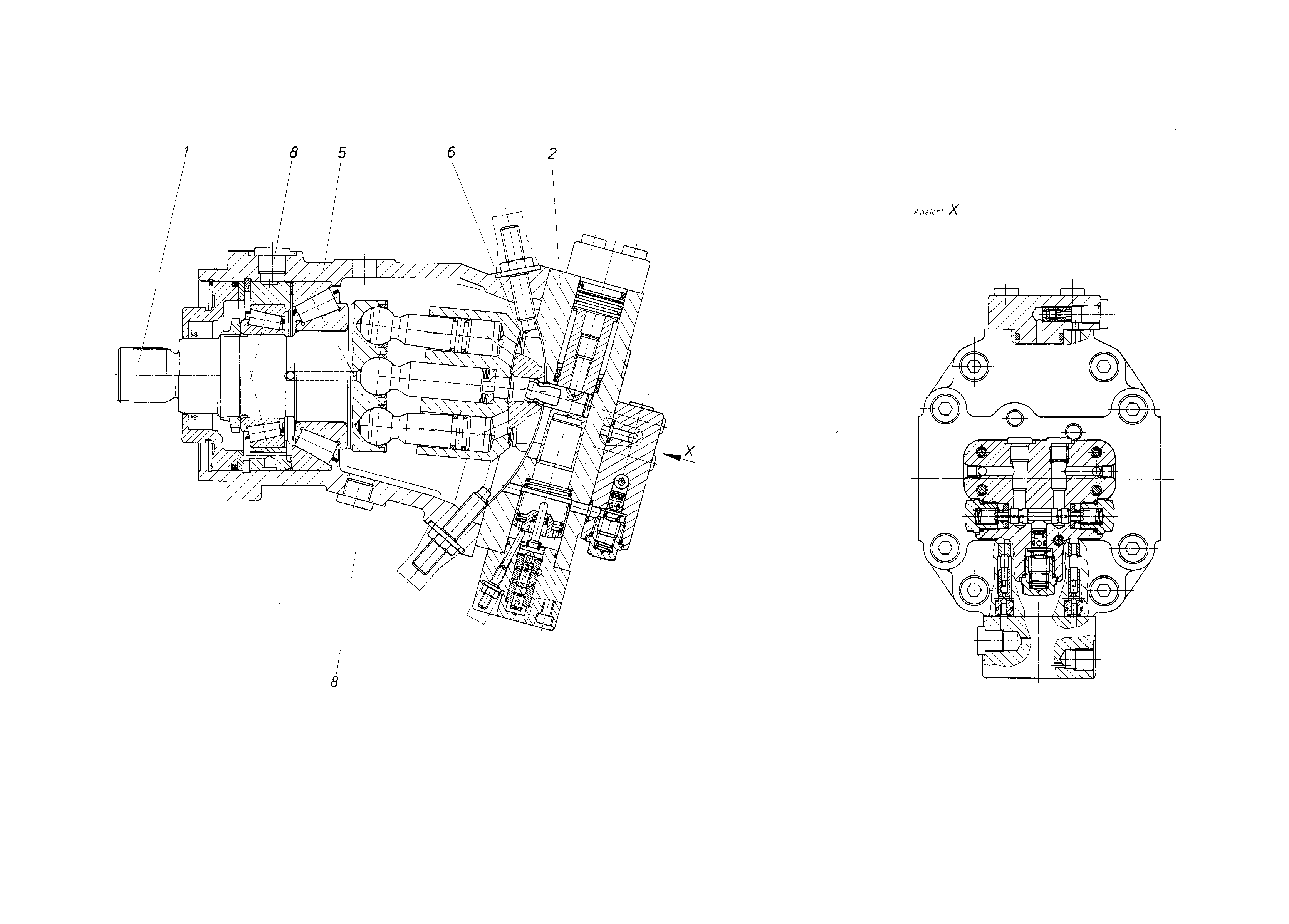

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909416230 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R909442188 | CONTROL Assembly parts list →L | 1 | |
| 3 | R909420889 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | |
| 5 | R909431761 | HOUSING | 1 | |
| 6 | R909921790 | CONTROL LENS | 1 | |
| 8 | R909151694 | SCREW PLUGD | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 160 | 160 |
| Control device | Automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 10 bar | HA1 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2 4-hole | B |
| Working port | SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 | 027 |
| Beginning of control | At Vg min (standard for HA) | A |
