Unit · AXIAL-PISTON PUMP
A8VO160/60R1-NZG-S 27028.R909442267
Axial piston pump Bosch Rexroth series A8VO, type code A8VO160/60R1-NZG-S27028., material number R909442267. Axial piston unit: bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar (A8V). Operating mode: double pump (parallel design), open circuit (O). Swivel angle indicator: without swivel angle indicator (0). Direction of rotation: viewed on drive shaft, right (R). Transmission ratio (ndrive / nrotary groups): i = 1 (1). Standard / special version: special version (S).
- Number
- R909442267
- Type code
- A8VO160/60R1-NZG-S 27028.
- Group
- A8VO 160
- Edition
- 06/2020

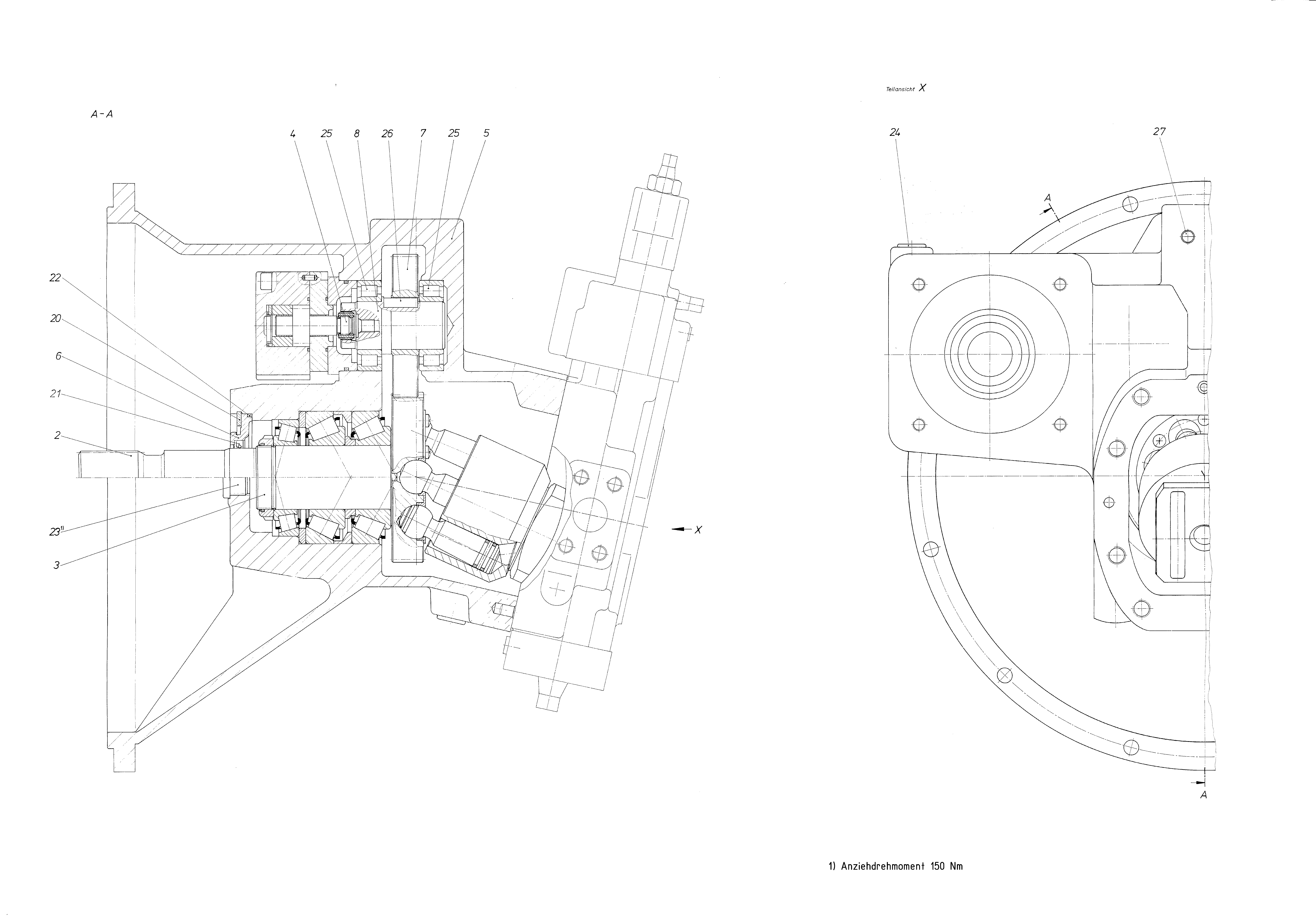

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909438929 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909437337 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909605417 | HYDRAULIC GEAR PUMP Assembly parts list →L | 1 | ||
| R909921418 | PUMP HOUSING | 1 | ||
| R909416121 | LOCKING RINGD | 1 | ||
| R902036640 | TOOTHED WHEEL | 1 | ||
| R909436640 | PLUG-IN SHAFT | 1 | ||
| R909083419 | RETAINING RING | 1 | ||
| R913043034 | ROTARY SHAFT LIP SEALD | 1 | ||
| R909083829 | O-RINGD | 1 | ||
| R909153861 | SCREW PLUGD | 1 | ||
| R909151694 | SCREW PLUGD | 3 | ||
| R909150742 | CYL. ROLLER BEARING | 2 | ||
| R909830361 | PARALLEL KEY | 1 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar | A8V |
| Operating mode | Double pump (parallel design), open circuit | O |
| Swivel angle indicator | Without swivel angle indicator | 0 |
| Direction of rotation | Viewed on drive shaft, right | R |
| Transmission ratio (ndrive / nrotary groups) | i = 1 | 1 |
| Standard / special version | Special version | S |
