Unit · CONTROL
VERSTELLUNG F.A8VO160LGDH2/60 41128.R909442572
Control Bosch Rexroth series A8VO, type code VERSTELLUNGF.A8VO160LGDH2/6041128., material number R909442572.
- Number
- R909442572
- Type code
- VERSTELLUNG F.A8VO160LGDH2/60 41128.
- Group
- A8VO 160
- Edition
- 05/2020

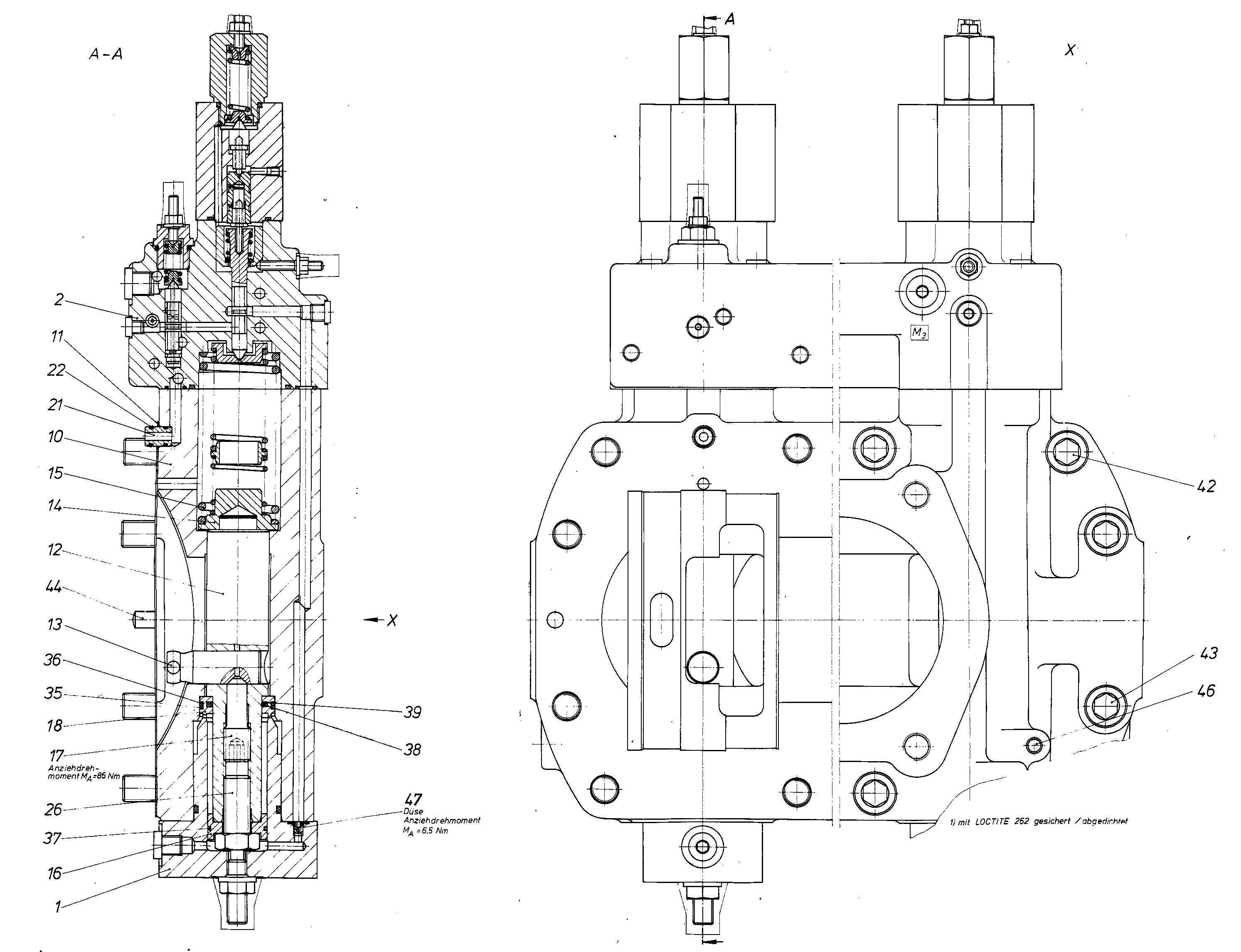

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909446602 | COVER Assembly parts list →L | 2 | ||
| R909442560 | CONTROL UNIT Assembly parts list →L | 1 | ||
| R909436270 | CONTROL HOUSING | 1 | ||
| R909651475 | SEALD | 1 | ||
| R909430144 | POSITIONING PISTON | 2 | ||
| R909425458 | POSITIONING STUD | 2 | ||
| R909449915 | SPRING DISK | 2 | ||
| R909432558 | COMPRESSION SPRING | 2 | ||
| R909430148 | PISTON | 2 | ||
| R909408958 | SETSCREW | 2 | ||
| R909430147 | SEAL RING | 2 | ||
| R909436679 | SEAL BUSHING | 1 | ||
| R909085709 | O-RINGD | 2 | ||
| R909086150 | HEXAGON SCREW | 2 | ||
| R909086334 | O-RINGD | 2 | ||
| R909157785 | BACKUP RINGD | 2 | ||
| R909156647 | R-RINGD | 2 | ||
| R909157786 | ROD SEALD | 2 | ||
| R909152146 | O-RINGD | 2 | ||
| R909083136 | SOCKET HEAD CAP SCREW | 8 | ||
| R909083142 | SOCKET HEAD CAP SCREW | 4 | ||
| R913007909 | STRAIGHT PIN | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909156494 | NOZZLE | 2 |
