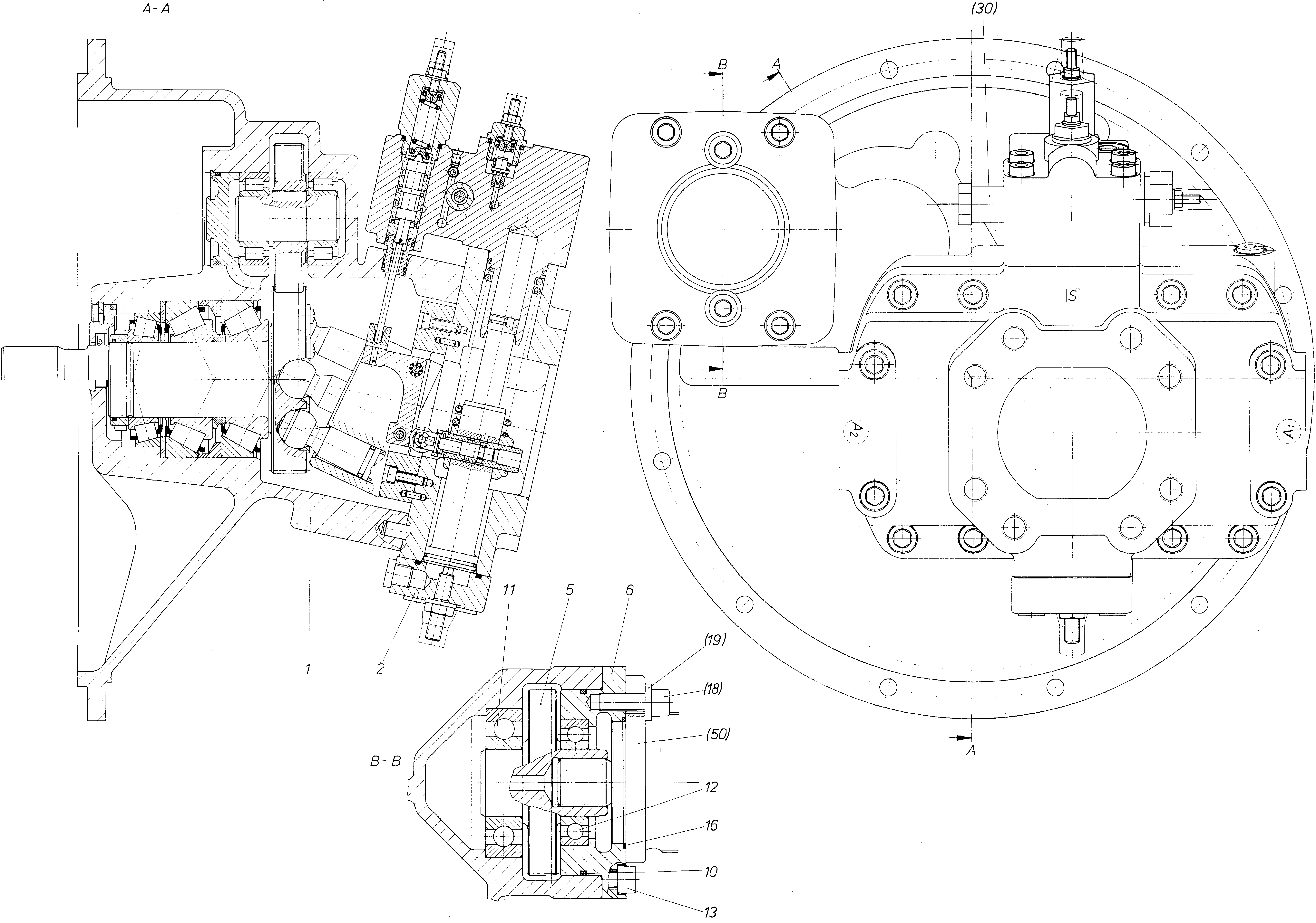

Unit · AXIAL-PISTON PUMP
A8VO80LR3DS/60R1-PZG05K02R909442647
Axial piston pump Bosch Rexroth series A8VO, type code A8VO80LR3DS/60R1-PZG05K02, material number R909442647.
- Number
- R909442647
- Type code
- A8VO80LR3DS/60R1-PZG05K02
- Group
- A8VO 80
- Edition
- 06/2018
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909429162 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909442731 | CONTROL Assembly parts list →L | 1 | ||
| 3 | — | AXIAL-PISTON PUMP Assembly parts list →L | 1 | |
| R902036650 | TOOTHED WHEEL | 1 | ||
| R902099415 | FLANGE | 1 | ||
| R909152647 | O-RINGD | 1 | ||
| R909085478 | DEEP-GROOVE BALL BEARING | 1 | ||
| R909150668 | DEEP-GROOVE BALL BEARING | 1 | ||
| R909083086 | SOCKET HEAD CAP SCREW | 4 | ||
| R909085365 | O-RINGD | 1 | ||
| R909083090 | SOCKET HEAD CAP SCREW | 2 | ||
| R909430409 | WASHER | 2 | ||
| R909442732 | HYDRAULIC LINE Assembly parts list →L | 1 |
