Unit · AXIAL-PISTON MOTOR
A6VE80DA/61W-PAU020BR909442671
Axial piston motor Bosch Rexroth series A6VM, type code A6VE80DA/61W-PAU020B, material number R909442671. Nominal size: NG 80. Axial piston unit: bent-axis design, variable (A6V). Control device: automatic control, speed related pSt/pHD = 3/100, hydraulic travel direction valve (DA). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: parallel keyed shaft DIN 6885 (P). Working port: SAE working ports Without valve 0 A and B at side, opposite 02 (020). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R909442671
- Type code
- A6VE80DA/61W-PAU020B
- Group
- A6VE 80
- Edition
- 06/2020

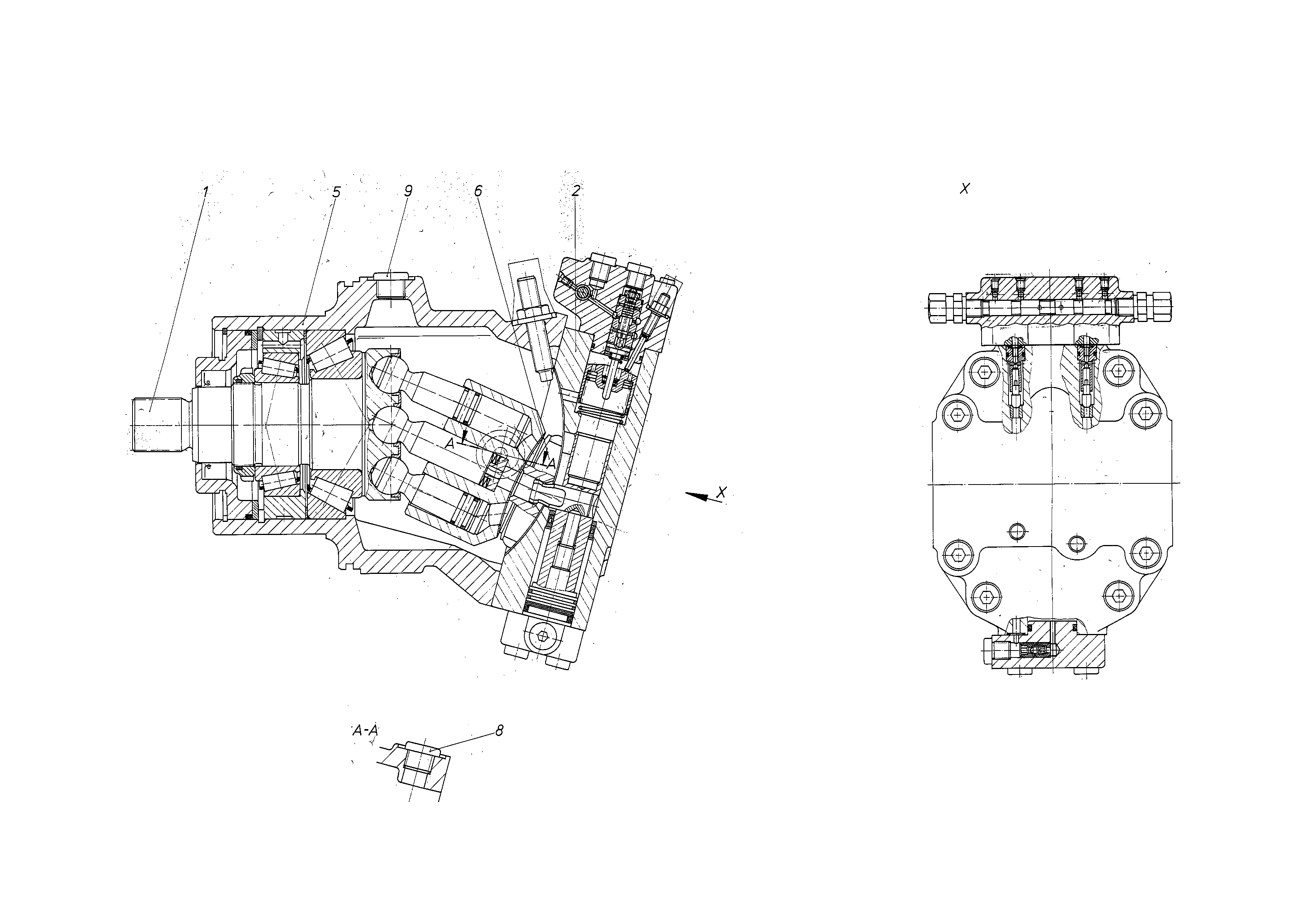

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909441945 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R909420583 | CONTROL Assembly parts list →L | 1 | |
| 5 | R909436891 | HOUSING | 1 | |
| 6 | R909921787 | CONTROL LENS | 1 | |
| 8 | R909153815 | SCREW PLUGD | 1 | |
| 9 | R909153815 | SCREW PLUGD | 1 | |
| 98 | R902166565 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 80 | 80 |
| Control device | Automatic control, speed related pSt/pHD = 3/100, hydraulic travel direction valve | DA |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 02 | 020 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
