Unit · AXIAL-PISTON MOTOR
AA6VM200HA2/60W-VSD520AR909442863
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM200HA2/60W-VSD520A, material number R909442863. Axial piston unit: bent-axis design, variable (AA6V). Operating mode: motor (M). Control device: automatic control, high-pressure related with pressure increase Δp = 1450 psi (100 bar) (HA2). Direction of rotation: viewed on drive shaft bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft ANSI B92.1a (S). Mounting flange: SAE J744 - 4-bolt 165-4 (D). Working port: SAE working ports Without valve 0 A and B at side, opposite 52 (520). Beginning of control: at Vg min (standard for HA) (A).
- Number
- R909442863
- Type code
- AA6VM200HA2/60W-VSD520A
- Group
- A6VM 200
- Edition
- 06/2020

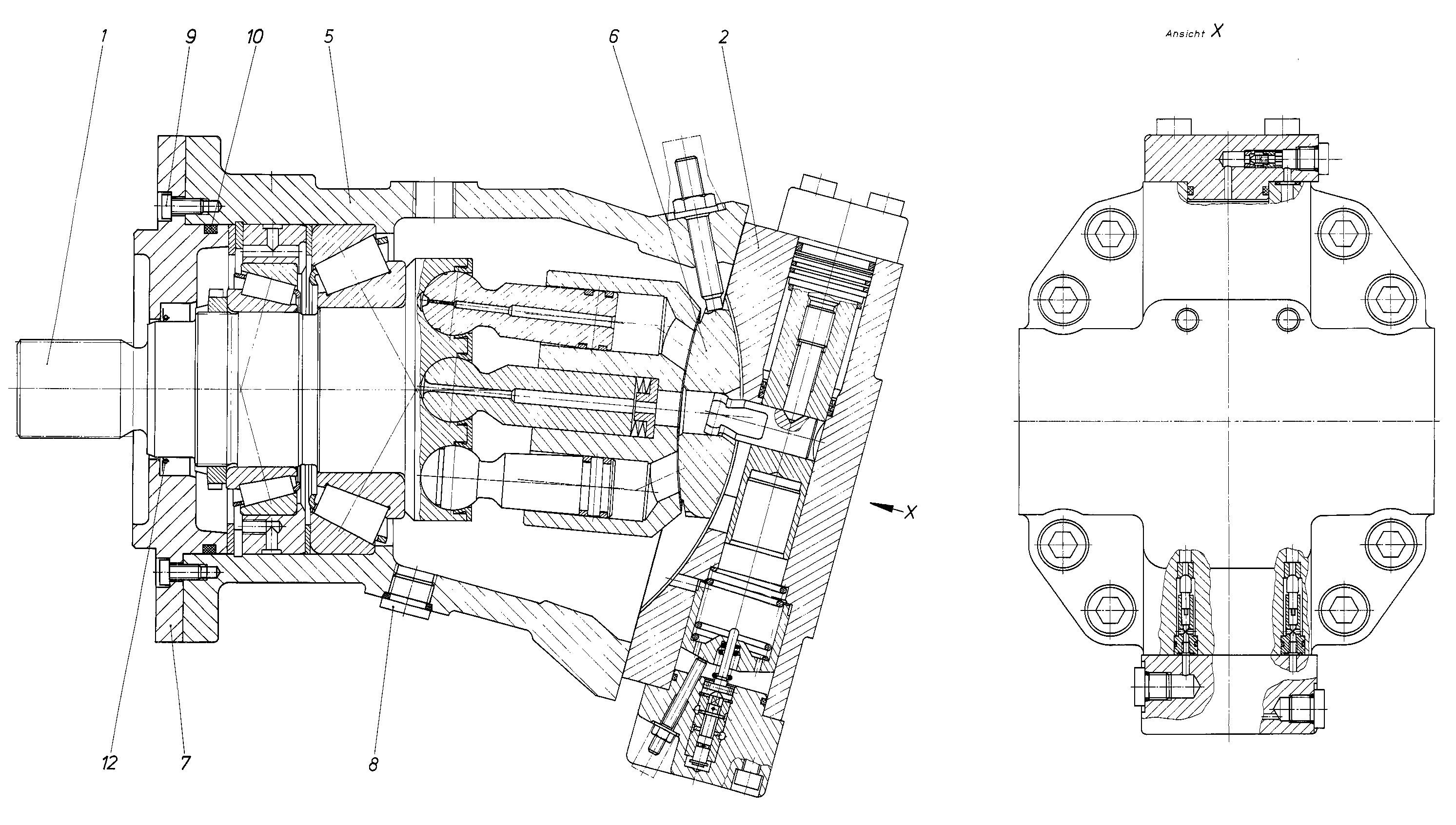

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909420125 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909442864 | CONTROL Assembly parts list →L | 1 | ||
| R909419602 | HOUSING | 1 | ||
| R909921791 | CONTROL LENS | 1 | ||
| R909419562 | FLANGE | 1 | ||
| R910967343 | SCREW PLUGD | 1 | ||
| R909083189 | SOCKET HEAD CAP SCREW | 4 | ||
| R909157542 | O-RINGD | 1 | ||
| R909831663 | ROTARY SHAFT LIP SEALD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | AA6V |
| Operating mode | Motor | M |
| Control device | Automatic control, high-pressure related with pressure increase Δp = 1450 psi (100 bar) | HA2 |
| Direction of rotation | Viewed on drive shaft bidirectional | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft ANSI B92.1a | S |
| Mounting flange | SAE J744 - 4-bolt 165-4 | D |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 52 | 520 |
| Beginning of control | At Vg min (standard for HA) | A |
