Unit · AXIAL-PISTON PUMP
A11VG35EP2M1/12L-PSC10F012SR909446312
Axial piston pump Bosch Rexroth series A11VO, type code A11VG35EP2M1/12L-PSC10F012S, material number R909446312. Nominal size: NG 35. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Control device: electrical control with proportional solenoid positive control U = 24 V (EP2). Drive shaft: splined shaft ANSI B92.1a‒1976 for single pump (S). Mounting flange: SAE J744 ‒ 2-hole (C).
- Number
- R909446312
- Type code
- A11VG35EP2M1/12L-PSC10F012S
- Group
- A11VG 35
- Edition
- 06/2020

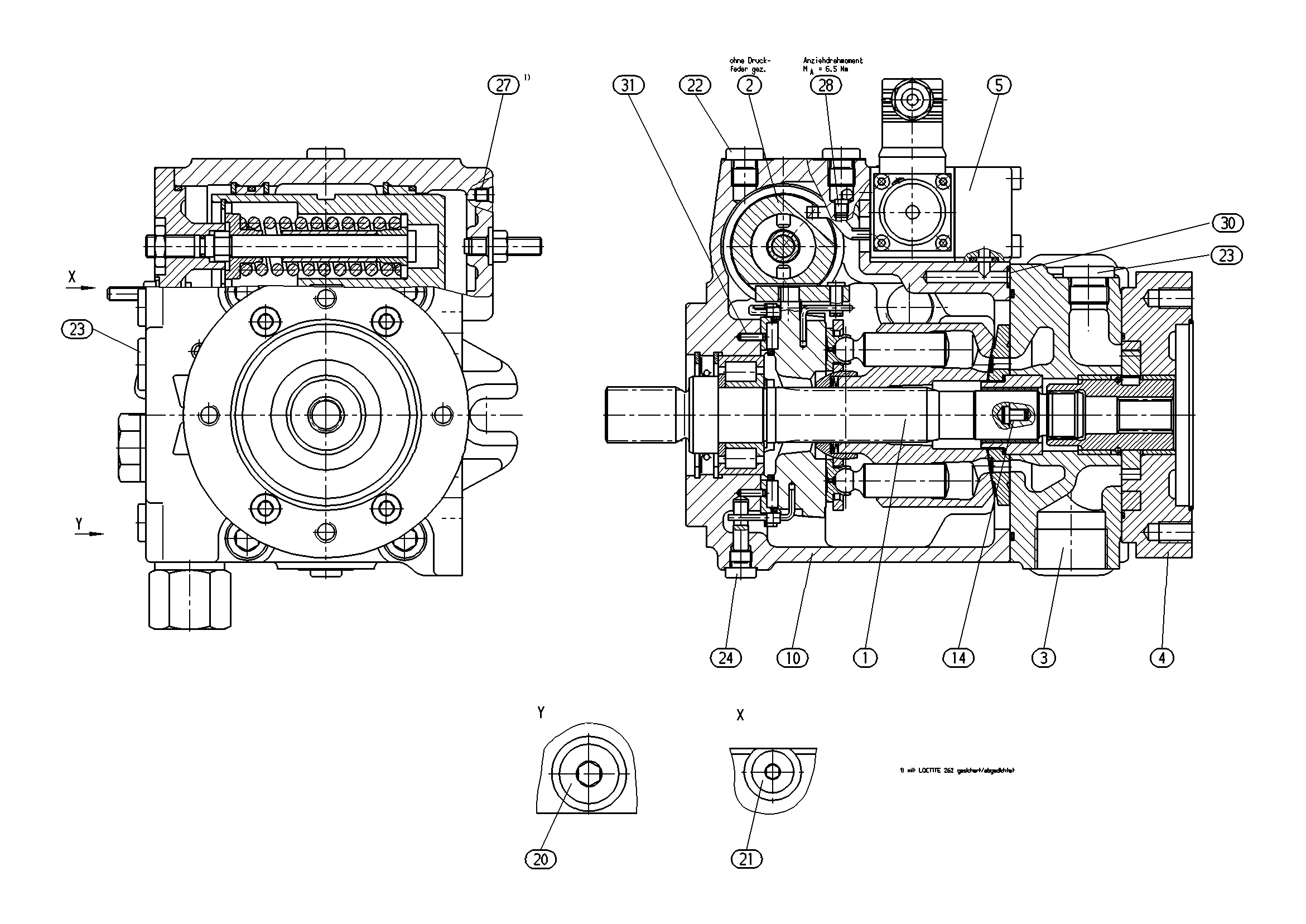

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909438034 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909441559 | CONTROL Assembly parts list →L | 1 | ||
| R909438165 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909438616 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909438042 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R909651341 | HOUSING | 1 | ||
| 13 | R902114380 | PIVOT PIN | 1 | |
| R909405732 | POITIONING PIN | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R909153815 | SCREW PLUGD | 2 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909156493 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Size (NG) | 35 | 35 |
| Control device | Electrical control with proportional solenoid positive control U = 24 V | EP2 |
| Index | Size 145 … 260 | 1 |
| Drive shaft | Splined shaft ANSI B92.1a‒1976 for single pump | S |
| Mounting flange | SAE J744 ‒ 2-hole | C |
