Unit · AXIAL-PISTON PUMP
A4VG28EP11/30L-NZC10K011ER909446480
Axial piston pump Bosch Rexroth series A4VG, type code A4VG28EP11/30L-NZC10K011E, material number R909446480. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar (A4V). Operating mode: pump, closed circuit (G). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft for single pump DIN 5480 (Z). Mounting flange: SAE J744 2-hole (C). Working port (port plate): SAE working port A and B, same side right suction port S bottom (10). Boost pump: without integrated boost pump with through drive (K). Through drive: flange SAE J744 Hub for splined shaft, 82-2 (A) 5/8 in 9T 16/32DP (01). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve, pilot operated 100 … 420 bar with bypass (1). Filtration boost circuit/external boost pressure supply: external boost pressure supply (version without integrated boost pump – N00, K...) (E).
- Number
- R909446480
- Type code
- A4VG28EP11/30L-NZC10K011E
- Group
- A4VG 28
- Edition
- 06/2020

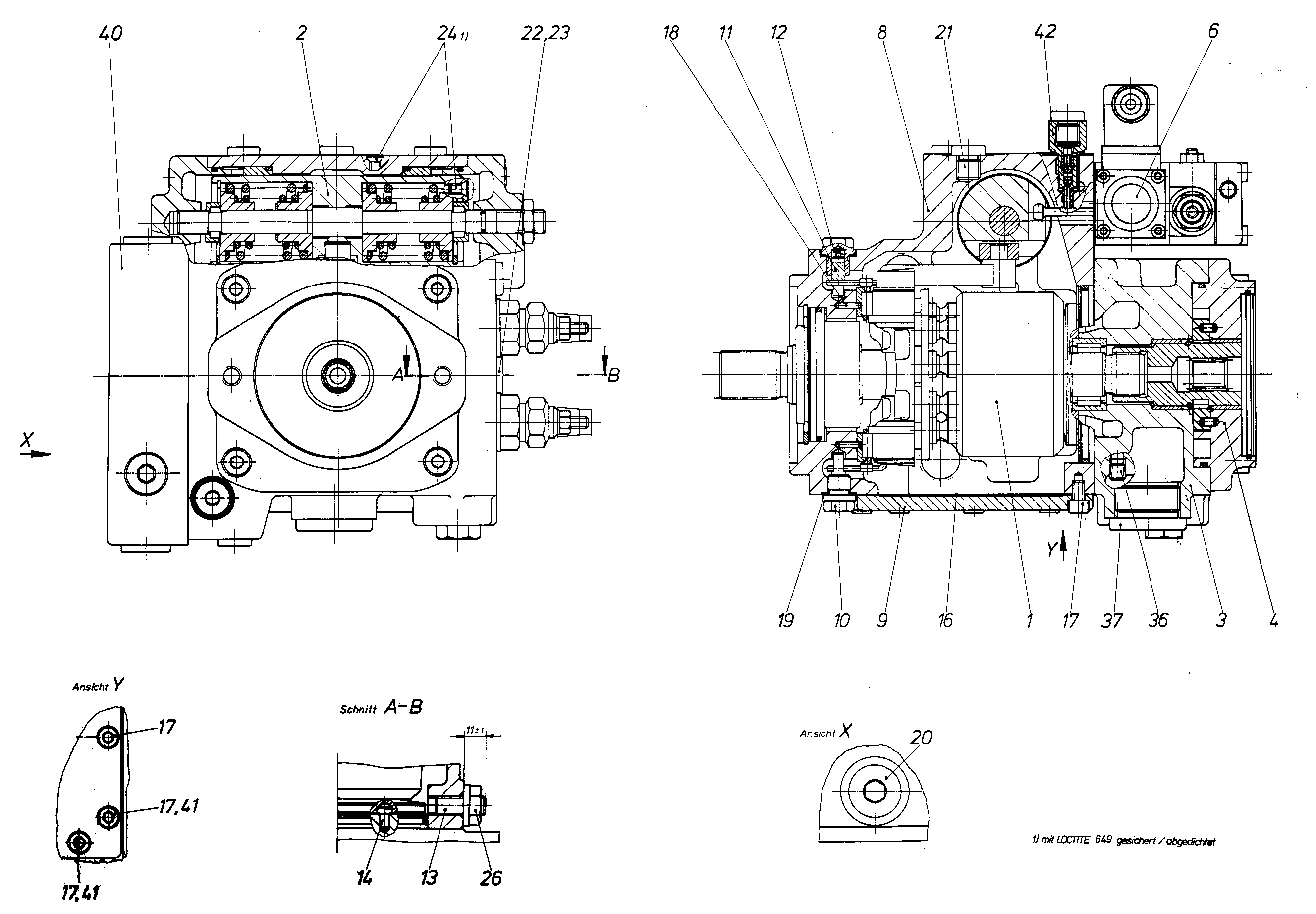

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909446448 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909600897 | CONTROL Assembly parts list →L | 1 | ||
| R909427590 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909606118 | BELL HOUSING Assembly parts list →L | 1 | ||
| R909600960 | CONTROL UNIT Assembly parts list →L | 1 | ||
| R909426341 | HOUSING | 1 | ||
| R909426076 | HOUSING COVER | 1 | ||
| R909414228 | SCREW PLUG | 2 | ||
| R909449291 | PIVOT PIN | 2 | ||
| R909154981 | SETSCREW | 1 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909435277 | SEALD | 1 | ||
| R909083018 | SOCKET HEAD CAP SCREW | 11 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909152726 | SEAL RINGD | 2 | ||
| R909151694 | SCREW PLUGD | 3 | ||
| R909151692 | SCREW PLUGD | 5 | ||
| R909084400 | SCREW PLUG | 1 | ||
| R909083761 | O-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909153271 | SEALING NUTD | 1 | ||
| R909153572 | SCREW PLUG | 1 | ||
| R909153861 | SCREW PLUGD | 1 | ||
| R909447097 | FLUSHING VALVE Assembly parts list →L | 1 | ||
| R909084302 | SEAL RINGD | 2 | ||
| R902190720 | THROTTLE VALVE Assembly parts list →L | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 28 | 28 |
| DA control valve | Without DA control valve | 1 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft for single pump DIN 5480 | Z |
| Mounting flange | SAE J744 2-hole | C |
| Working port (port plate) | SAE working port A and B, same side right suction port S bottom | 10 |
| Boost pump | Without integrated boost pump with through drive | K |
| Through drive | Flange SAE J744 Hub for splined shaft, 82-2 (A) 5/8 in 9T 16/32DP | 01 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve, pilot operated 100 … 420 bar with bypass | 1 |
| Filtration boost circuit/external boost pressure supply | External boost pressure supply (version without integrated boost pump – N00, K...) | E |
