Unit · AXIAL-PISTON MOTOR
A6VM107EP2/60W-PABO17BR909446659
Axial piston motor Bosch Rexroth series A6VM, type code A6VM107EP2/60W-PABO17B, material number R909446659. Nominal size: NG 107. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: motor (M). Control device: proportional control, positive control electric U = 24 V (EP2). Connector for solenoids: DEUTSCH - molded connector, 2-pin, without suppressor diode (P). Stroking time damping: damping One-sided in outlet from large stroking chamber (7). Setting range for displacement: without setting screw moderate (B).
- Number
- R909446659
- Type code
- A6VM107EP2/60W-PABO17B
- Group
- A6VM 107
- Edition
- 06/2020

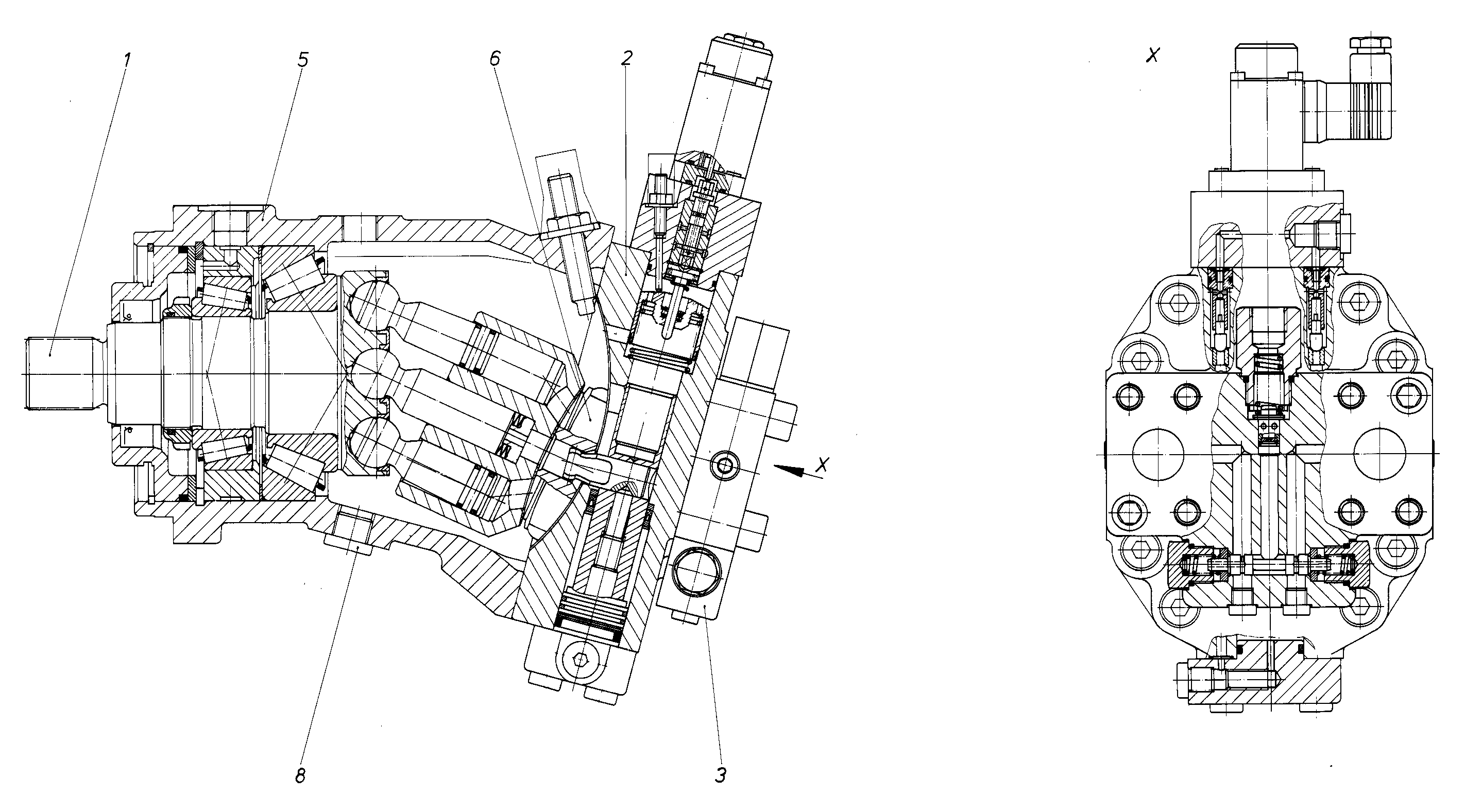

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909442878 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909416026 | CONTROL Assembly parts list →L | 1 | ||
| R909442253 | FLUSHING VALVE Assembly parts list →L | 1 | ||
| R909443260 | HOUSING | 1 | ||
| R909921788 | CONTROL LENS | 1 | ||
| R909153815 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Motor | M |
| Size (NG) | 107 | 107 |
| Control device | Proportional control, positive control electric U = 24 V | EP2 |
| Connector for solenoids | DEUTSCH - molded connector, 2-pin, without suppressor diode | P |
| Stroking time damping | Damping One-sided in outlet from large stroking chamber | 7 |
| Setting range for displacement | Without setting screw moderate | B |
