Unit · AXIAL-PISTON MOTOR
A6VE55EZ2/61W-PZL027DBR909446963
Axial piston motor Bosch Rexroth series A6VM, type code A6VE55EZ2/61W-PZL027DB, material number R909446963. Nominal size: NG 55. Axial piston unit: bent-axis design, variable (A6V). Control device: two-point control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V (EZ2). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: parallel keyed shaft DIN 6885 (P). Working port: SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 (027). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R909446963
- Type code
- A6VE55EZ2/61W-PZL027DB
- Group
- A6VE 55
- Edition
- 06/2020

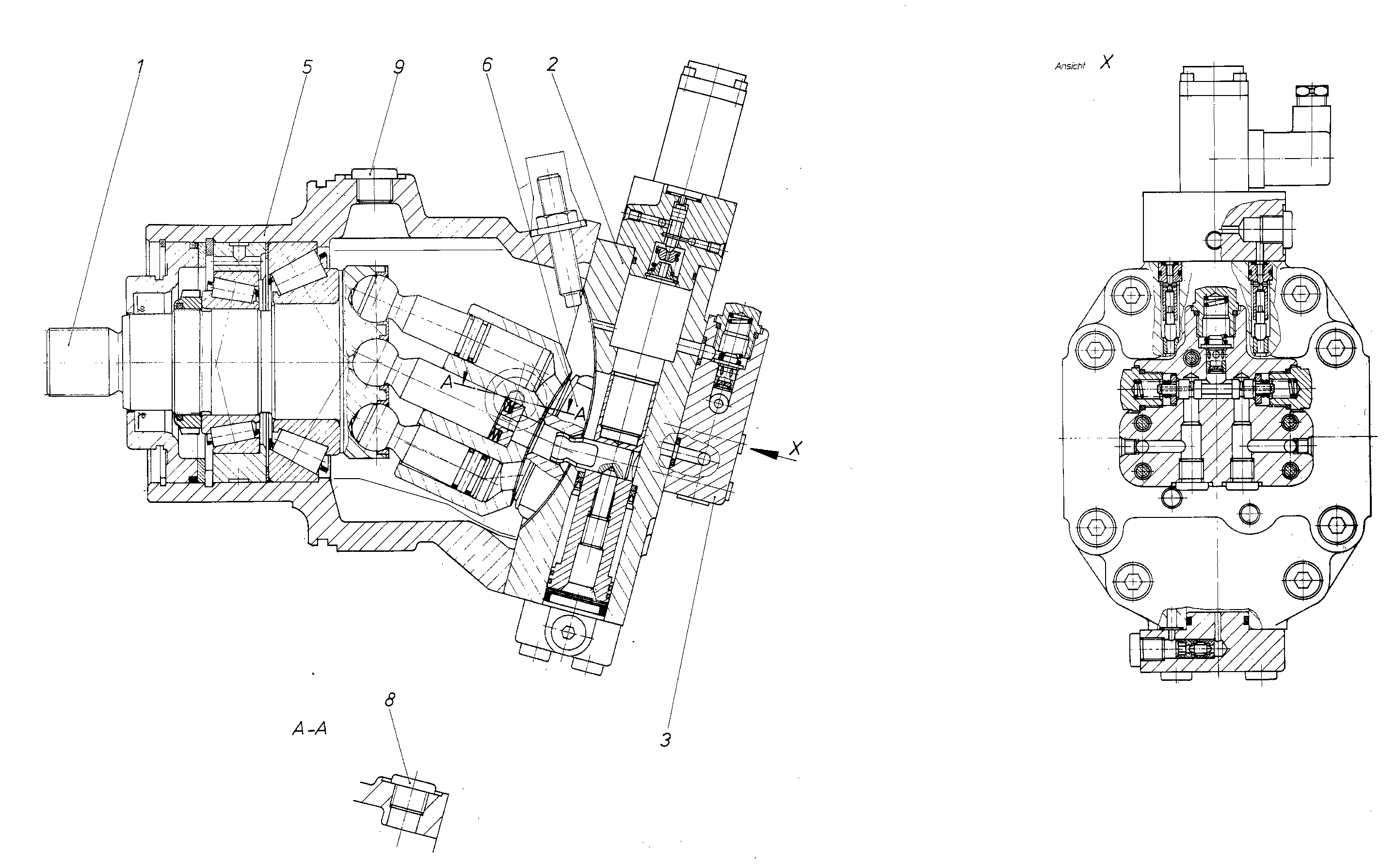

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909447091 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909438919 | CONTROL Assembly parts list →L | 1 | ||
| R909420889 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R909440386 | HOUSING | 1 | ||
| R909921786 | CONTROL LENS | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909153815 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 55 | 55 |
| Control device | Two-point control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V | EZ2 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Working port | SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 | 027 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
