Unit · AXIAL-PISTON PUMP
A11VG35HW1/12R-NSC10N002ER909447094
Axial piston pump Bosch Rexroth series A11VO, type code A11VG35HW1/12R-NSC10N002E, material number R909447094. Nominal size: NG 35. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal ring FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft ANSI B92.1a‒1976 for single pump (S). Mounting flange: SAE J744 ‒ 2-hole (C). Through drive: ‒ ‒ (N00).
- Number
- R909447094
- Type code
- A11VG35HW1/12R-NSC10N002E
- Group
- A11VG 35
- Edition
- 06/2020

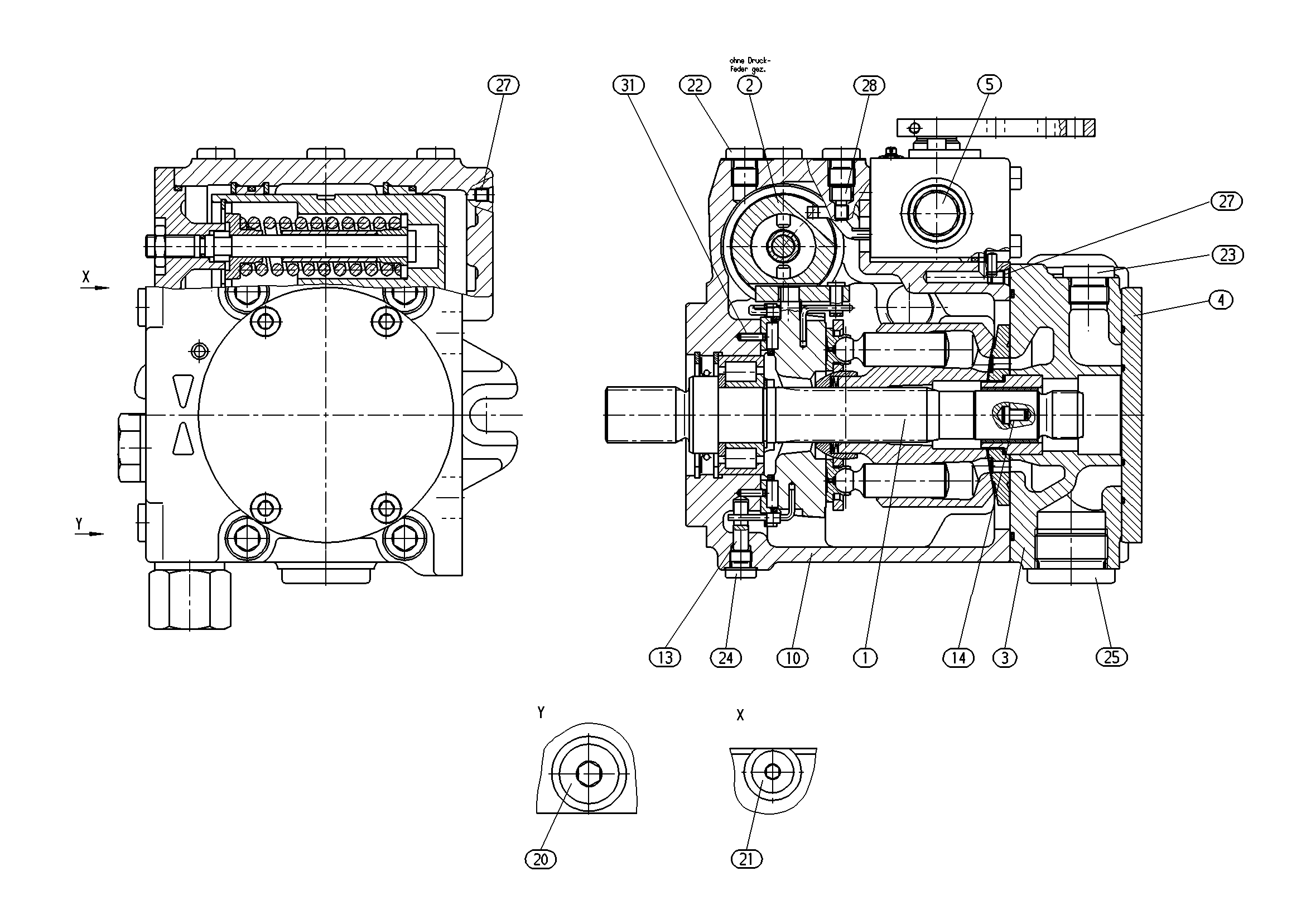

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909441573 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909441557 | CONTROL Assembly parts list →L | 1 | ||
| R909441193 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909441940 | PUMP COVER Assembly parts list →L | 1 | ||
| R902025355 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R909651343 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 1 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 5 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909153861 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R902190718 | THROTTLE VALVE Assembly parts list →L | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Size (NG) | 35 | 35 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal ring FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft ANSI B92.1a‒1976 for single pump | S |
| Mounting flange | SAE J744 ‒ 2-hole | C |
| Through drive | ‒ ‒ | N00 |
