Unit · AXIAL-PISTON MOTOR
A6VMN160DA/60W-PZB010BR909447466
Axial piston motor Bosch Rexroth series A6VM, type code A6VMN160DA/60W-PZB010B, material number R909447466. Nominal size: NG 160. Axial piston unit: bent-axis design, variable (A6V). Control device: automatic control, speed related pSt/pHD = 3/100, hydraulic travel direction valve (DA). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 4-hole (B). Working port: SAE working ports Without valve 0 A and B at rear 01 (010). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R909447466
- Type code
- A6VMN160DA/60W-PZB010B
- Group
- A6VMN 160
- Edition
- 06/2020

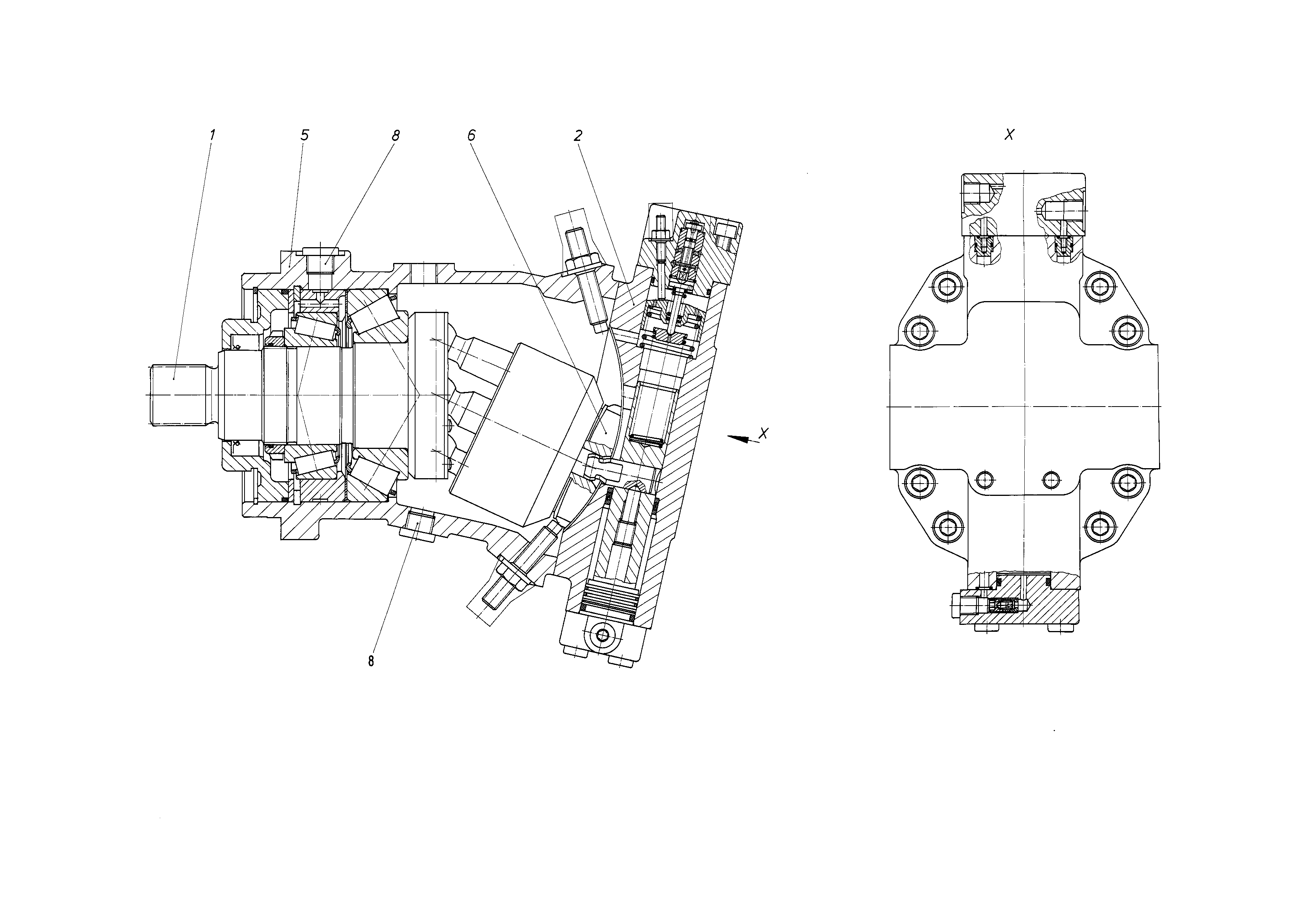

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909416230 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R909447467 | CONTROL Assembly parts list →L | 1 | |
| R909431761 | HOUSING | 1 | ||
| 6 | R909921790 | CONTROL LENS | 1 | |
| 8 | R909151694 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 160 | 160 |
| Control device | Automatic control, speed related pSt/pHD = 3/100, hydraulic travel direction valve | DA |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2 4-hole | B |
| Working port | SAE working ports Without valve 0 A and B at rear 01 | 010 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
