Unit · AXIAL-PISTON MOTOR
A6VM55HA1/62W-NZB380AR909447765
Axial piston motor Bosch Rexroth series A6VM, type code A6VM55HA1/62W-NZB380A, material number R909447765. Nominal size: NG 55. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 10 bar (HA1). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 4-hole (B). Working port: port plate with 1-stage pressure relief valves Without valve 0 (pilot operated) for mounting a counterbalance valve MHB 38 (380). Beginning of control: at Vg min (standard for HA) (A).
- Number
- R909447765
- Type code
- A6VM55HA1/62W-NZB380A
- Group
- A6VM 55
- Edition
- 06/2020

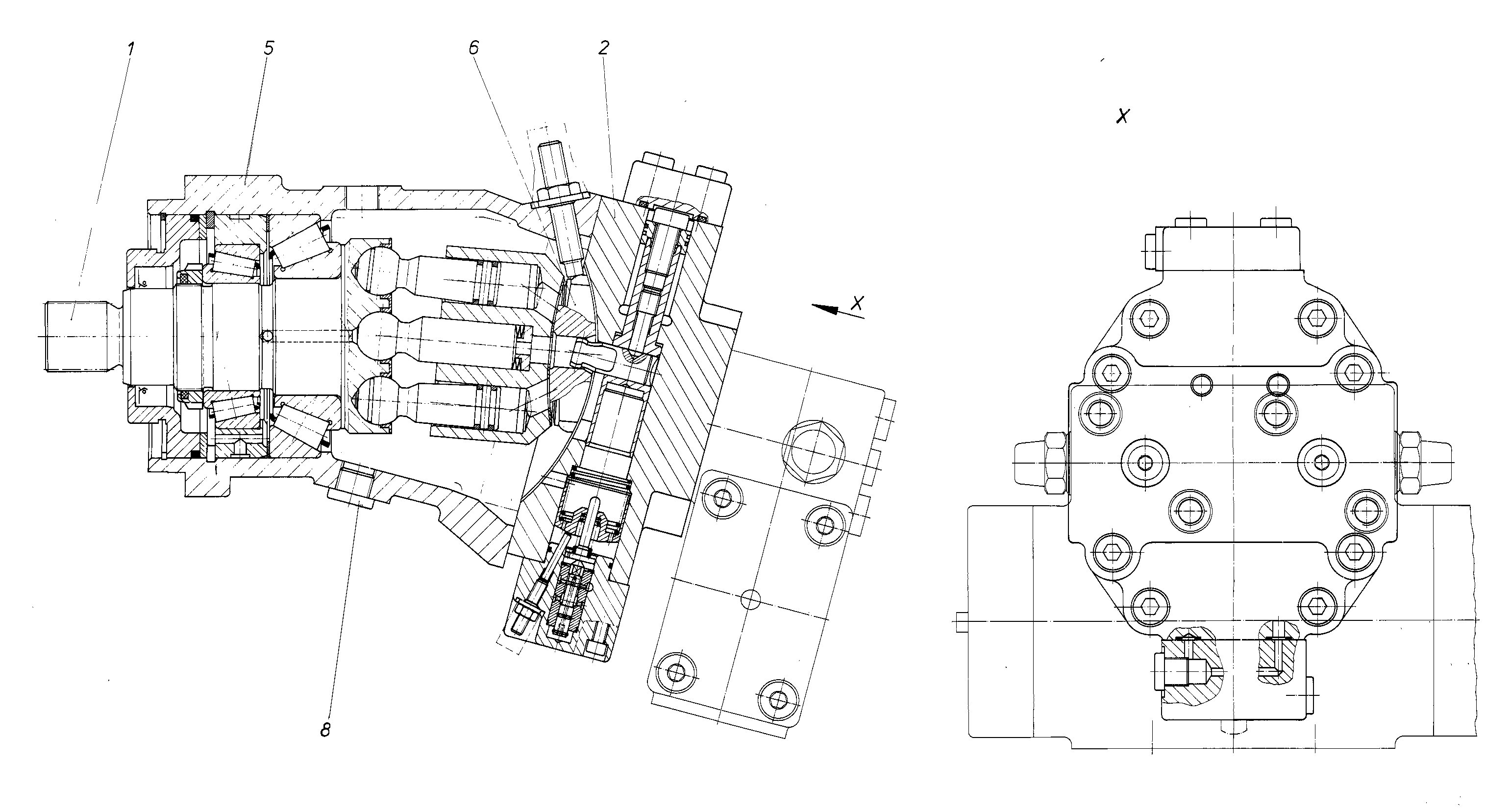

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909416233 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909447742 | CONTROL Assembly parts list →L | 1 | ||
| R909413103 | HOUSING | 1 | ||
| R909921786 | CONTROL LENS | 1 | ||
| R909153815 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 55 | 55 |
| Control device | Automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 10 bar | HA1 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2 4-hole | B |
| Working port | Port plate with 1-stage pressure relief valves Without valve 0 (pilot operated) for mounting a counterbalance valve MHB 38 | 380 |
| Beginning of control | At Vg min (standard for HA) | A |
