Unit · AXIAL-PISTON PUMP
A4VG125EZ2DM1/32R-NAF02F741M-SR909448356
Axial piston pump Bosch Rexroth series A4VG, type code A4VG125EZ2DM1/32R-NAF02F741M-S, material number R909448356. Nominal size: NG 125. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar (A4V). Operating mode: pump, closed circuit (G). Control device: two-point control, electric U = 24 V (EZ2). Pressure cut-off: pressure cut-off (D). Mechanical stroke limiter: mechanical stroke limiter, externally adjustable (M). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft DIN 5480 for combination pump – 1st pump (A). Mounting flange: SAE J744 2+4-hole (F). Working port (port plate): SAE working port A and B, top and bottom suction port S bottom (02). Boost pump: integrated boost pump with and without through drive (F). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve direct operated, fixed setting 100 … 250 bar without bypass (4). Standard/special version: special version (-S).
- Number
- R909448356
- Type code
- A4VG125EZ2DM1/32R-NAF02F741M-S
- Group
- A4VG 125
- Edition
- 03/2020

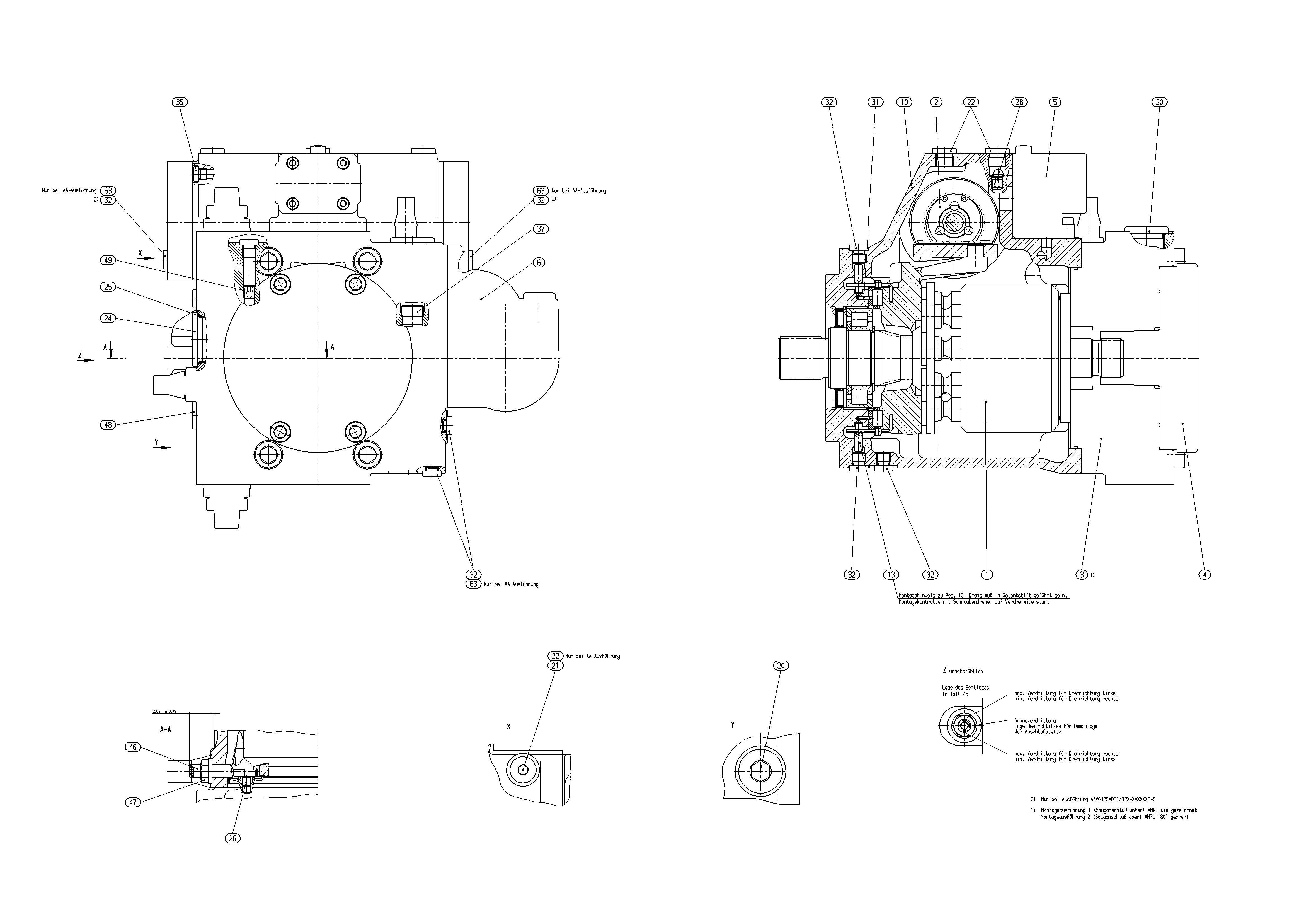

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909607938 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909607676 | CONTROL Assembly parts list →L | 1 | ||
| R909609519 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909606325 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909437190 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R902033761 | FILTER Assembly parts list →L | 1 | ||
| R909922009 | HOUSING | 1 | ||
| R902118633 | PIVOT PIN | 2 | ||
| R909153861 | SCREW PLUGD | 2 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909153816 | SCREW PLUGD | 3 | ||
| R909083229 | SCREW PLUG | 1 | ||
| R909085545 | O-RINGD | 1 | ||
| R909153572 | SCREW PLUG | 1 | ||
| R909426700 | NOZZLE | 2 | ||
| R913016374 | SLOTTED SPRING PIN | 2 | ||
| R909151692 | SCREW PLUGD | 5 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909156570 | SCREW PLUG | 1 | ||
| R902035616 | ECCENTRIC SCREW | 1 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909426707 | NOZZLE | 1 | ||
| 98 | R902095628 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 125 | 125 |
| Control device | Two-point control, electric U = 24 V | EZ2 |
| Pressure cut-off | Pressure cut-off | D |
| Mechanical stroke limiter | Mechanical stroke limiter, externally adjustable | M |
| DA control valve | Without DA control valve | 1 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft DIN 5480 for combination pump – 1st pump | A |
| Mounting flange | SAE J744 2+4-hole | F |
| Working port (port plate) | SAE working port A and B, top and bottom suction port S bottom | 02 |
| Boost pump | Integrated boost pump with and without through drive | F |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve direct operated, fixed setting 100 … 250 bar without bypass | 4 |
| Standard/special version | Special version | -S |
