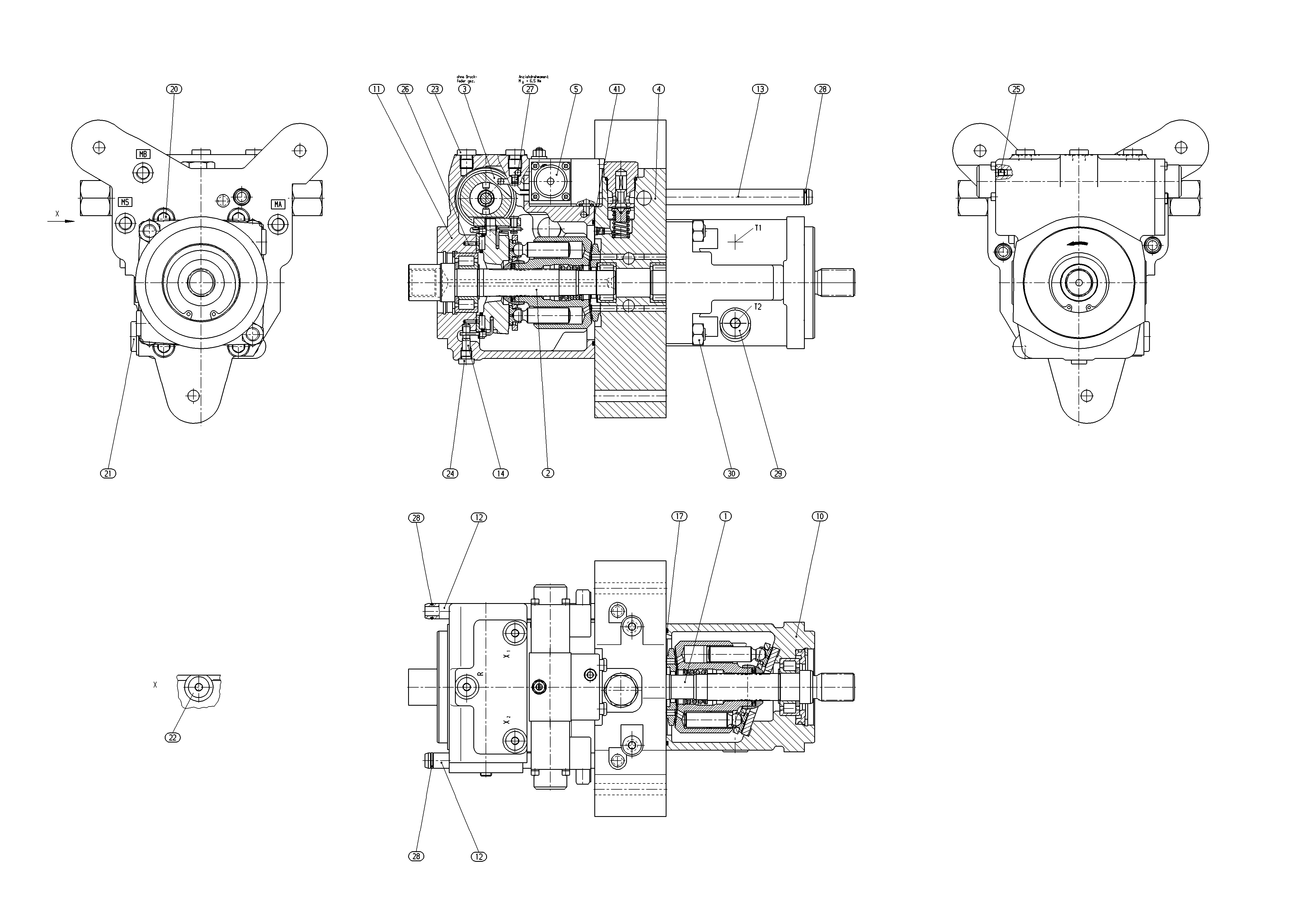

Unit · AXIAL-PISTON PUMP
A10VG28EP1R909448444
Axial piston pump Bosch Rexroth series A10VG, type code A10VG28EP1, material number R909448444. Nominal size: NG 28. Operating mode: pump, closed circuit (G). DA control valve: without DA control valve (1).
- Number
- R909448444
- Type code
- A10VG28EP1
- Group
- A10VG 28
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909448447 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909448445 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909448449 | CONTROL Assembly parts list →L | 1 | ||
| R909448446 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909606986 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R909650178 | HOUSING | 1 | ||
| R909650179 | HOUSING | 1 | ||
| R909650181 | SOCKET PIPE | 2 | ||
| R909650290 | SOCKET PIPE | 1 | ||
| R902114380 | PIVOT PIN | 1 | ||
| R909154589 | O-RINGD | 1 | ||
| R909083098 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151694 | SCREW PLUGD | 2 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909150772 | SLOTTED SPRING PIN | 2 | ||
| R909156493 | NOZZLE | 2 | ||
| R909086332 | O-RINGD | 6 | ||
| R909153815 | SCREW PLUGD | 2 | ||
| R909083615 | HEXAGON NUT | 4 | ||
| R909086547 | O-RINGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 28 | 28 |
| DA control valve | Without DA control valve | 1 |
