Unit · AXIAL-PISTON MOTOR
A6VM160EP2/60W-PAB027DAR909448507
Axial piston motor Bosch Rexroth series A6VM, type code A6VM160EP2/60W-PAB027DA, material number R909448507. Nominal size: NG 160. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V (EP2). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: parallel keyed shaft DIN 6885 (P). Working port: SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 (027). Beginning of control: at Vg min (standard for HA) (A).
- Number
- R909448507
- Type code
- A6VM160EP2/60W-PAB027DA
- Group
- A6VM 160
- Edition
- 06/2020

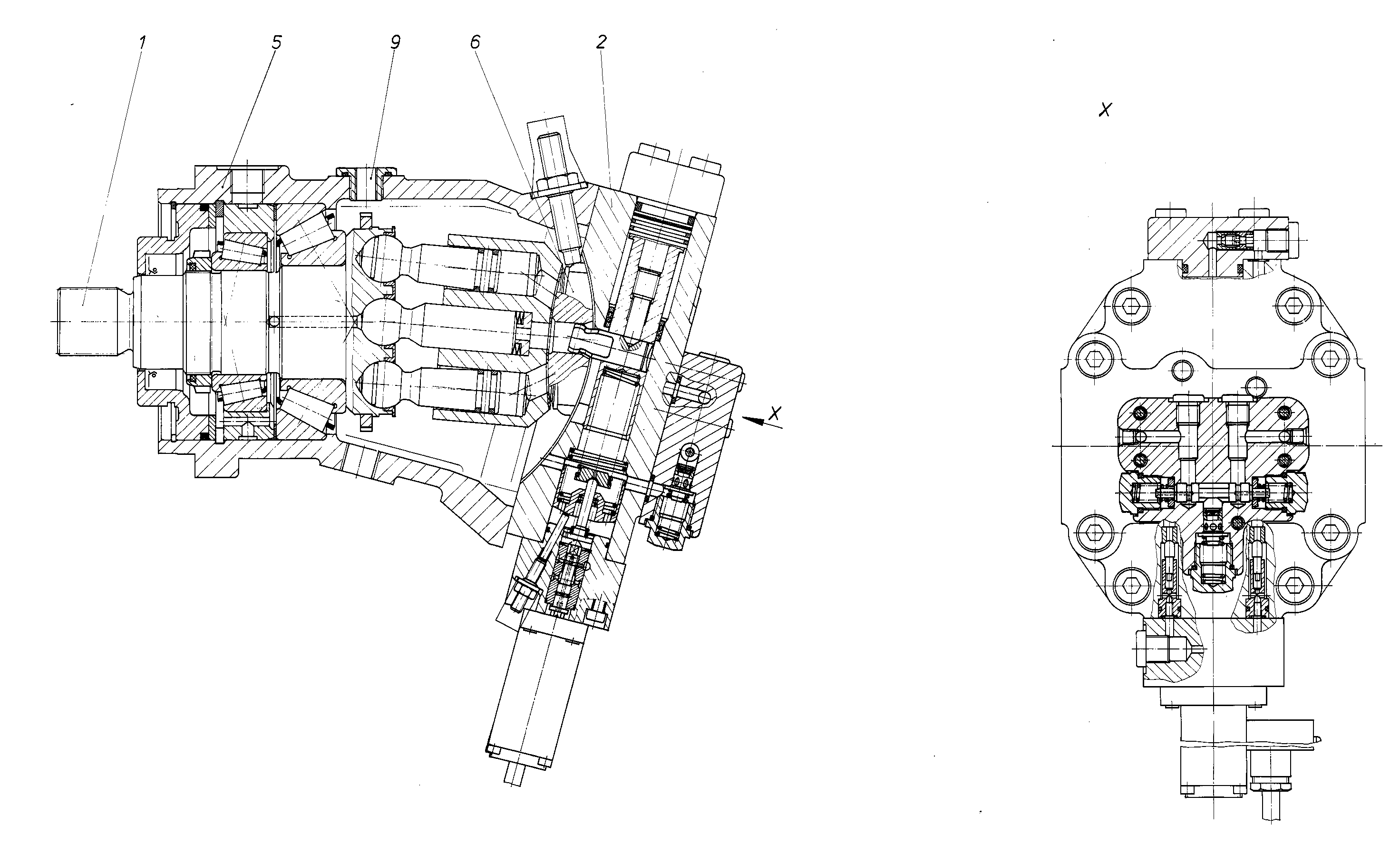

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909434125 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909423589 | CONTROL Assembly parts list →L | 1 | ||
| 3 | R909420889 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | |
| R909420696 | HOUSING | 1 | ||
| R909921790 | CONTROL LENS | 1 | ||
| R909432055 | THREADED REDUCING STUD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 160 | 160 |
| Control device | Proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V | EP2 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Working port | SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 | 027 |
| Beginning of control | At Vg min (standard for HA) | A |
