Unit · AXIAL-PISTON MOTOR
A6VMN160EP2/60W-PZB016DA-SR909448515
Axial piston motor Bosch Rexroth series A6VM, type code A6VMN160EP2/60W-PZB016DA-S, material number R909448515. Nominal size: NG 160. Axial piston unit: bent-axis design, variable (A6V). Control device: proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V (EP2). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 4-hole (B). Beginning of control: at Vg min (standard for HA) (A). Standard/special version: special version (-S).
- Number
- R909448515
- Type code
- A6VMN160EP2/60W-PZB016DA-S
- Group
- A6VMN 160
- Edition
- 06/2020

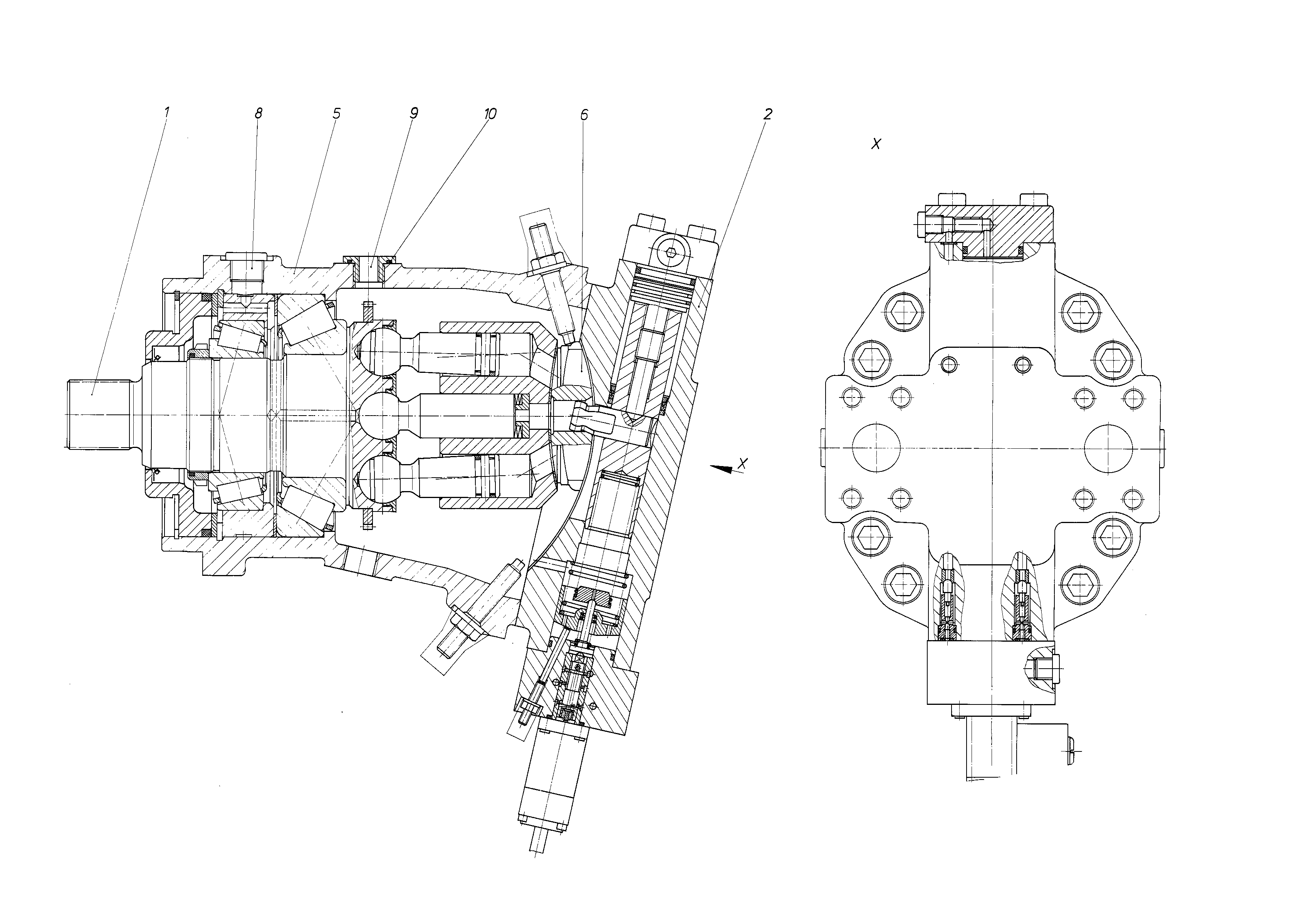

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909429798 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R909448516 | CONTROL Assembly parts list →L | 1 | |
| R909431761 | HOUSING | 1 | ||
| R909427635 | CONTROL LENS | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| 9 | R909432055 | THREADED REDUCING STUD | 1 | |
| R909087513 | O-RINGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 160 | 160 |
| Control device | Proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V | EP2 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2 4-hole | B |
| Beginning of control | At Vg min (standard for HA) | A |
| Standard/special version | Special version | -S |
