Unit · AXIAL-PISTON MOTOR
A6VMN80EP1/60W-PAB010DBR909448569
Axial piston motor Bosch Rexroth series A6VM, type code A6VMN80EP1/60W-PAB010DB, material number R909448569. Nominal size: NG 80. Axial piston unit: bent-axis design, variable (A6V). Control device: proportional control, electric (with HIRSCHMANN U = 12 V connector – without suppressor diode) (EP1). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: parallel keyed shaft DIN 6885 (P). Working port: SAE working ports Without valve 0 A and B at rear 01 (010). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R909448569
- Type code
- A6VMN80EP1/60W-PAB010DB
- Group
- A6VMN 80
- Edition
- 06/2020

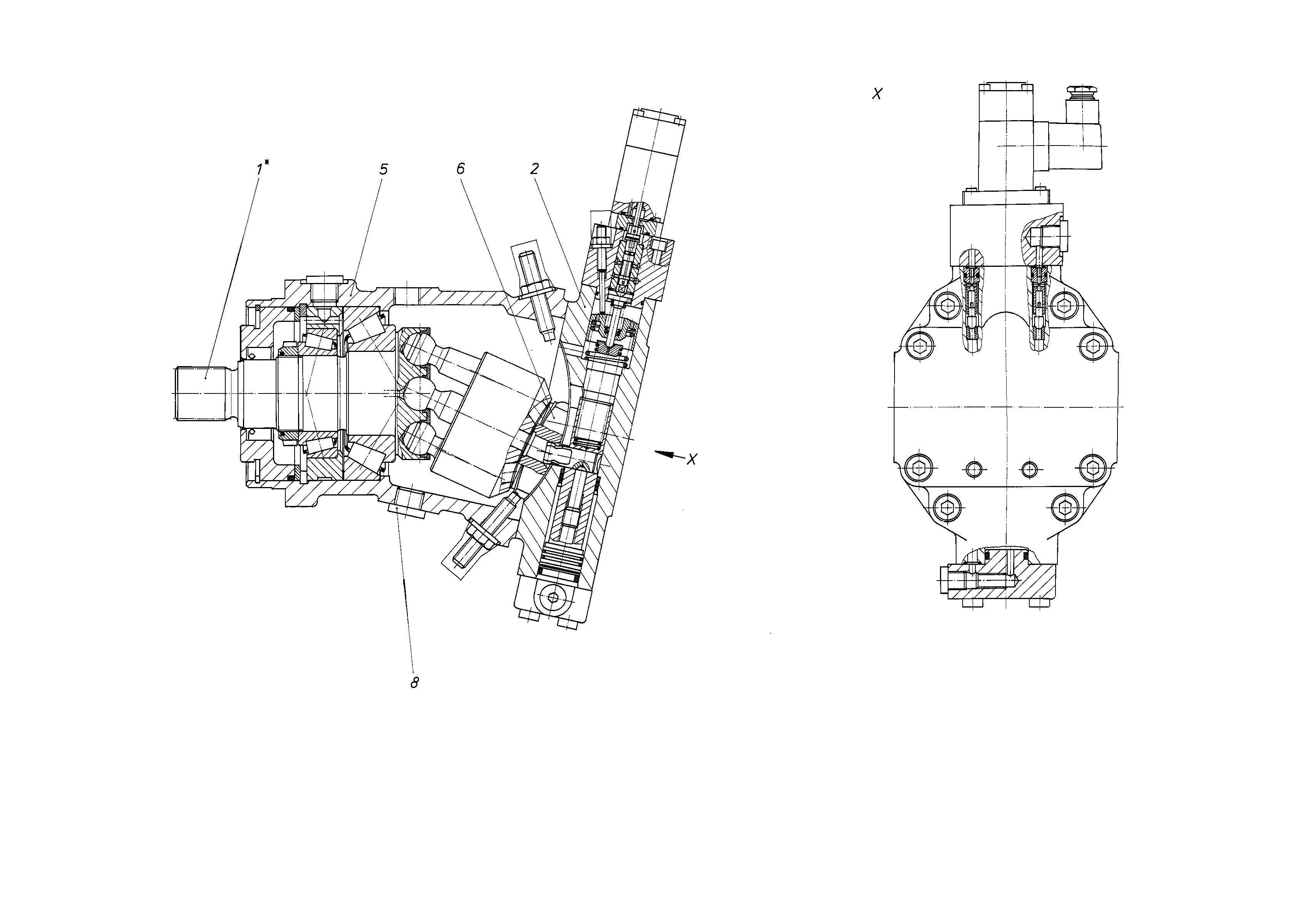

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909437184 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909438914 | CONTROL Assembly parts list →L | 1 | ||
| R909436333 | HOUSING | 1 | ||
| R909921787 | CONTROL LENS | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 80 | 80 |
| Control device | Proportional control, electric (with HIRSCHMANN U = 12 V connector – without suppressor diode) | EP1 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Working port | SAE working ports Without valve 0 A and B at rear 01 | 010 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
