Unit · AXIAL-PISTON MOTOR
AA6VTMN107EP1/60W-NSD527DAR909448621
Axial piston motor Bosch Rexroth series A6VM, type code AA6VTMN107EP1/60W-NSD527DA, material number R909448621. Axial piston unit: bent-axis design, variable (AA6V). Operating mode: motor (M). Control device: proportional control, electric (with HIRSCHMANN U = 12 V connector – without suppressor diode) (EP1). Direction of rotation: viewed on drive shaft bidirectional (W). Drive shaft: splined shaft ANSI B92.1a (S). Mounting flange: SAE J744 - 4-bolt 165-4 (D). Working port: SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 (527). Beginning of control: at Vg min (standard for HA) (A).
- Number
- R909448621
- Type code
- AA6VTMN107EP1/60W-NSD527DA
- Group
- A6VTMN 107
- Edition
- 06/2020

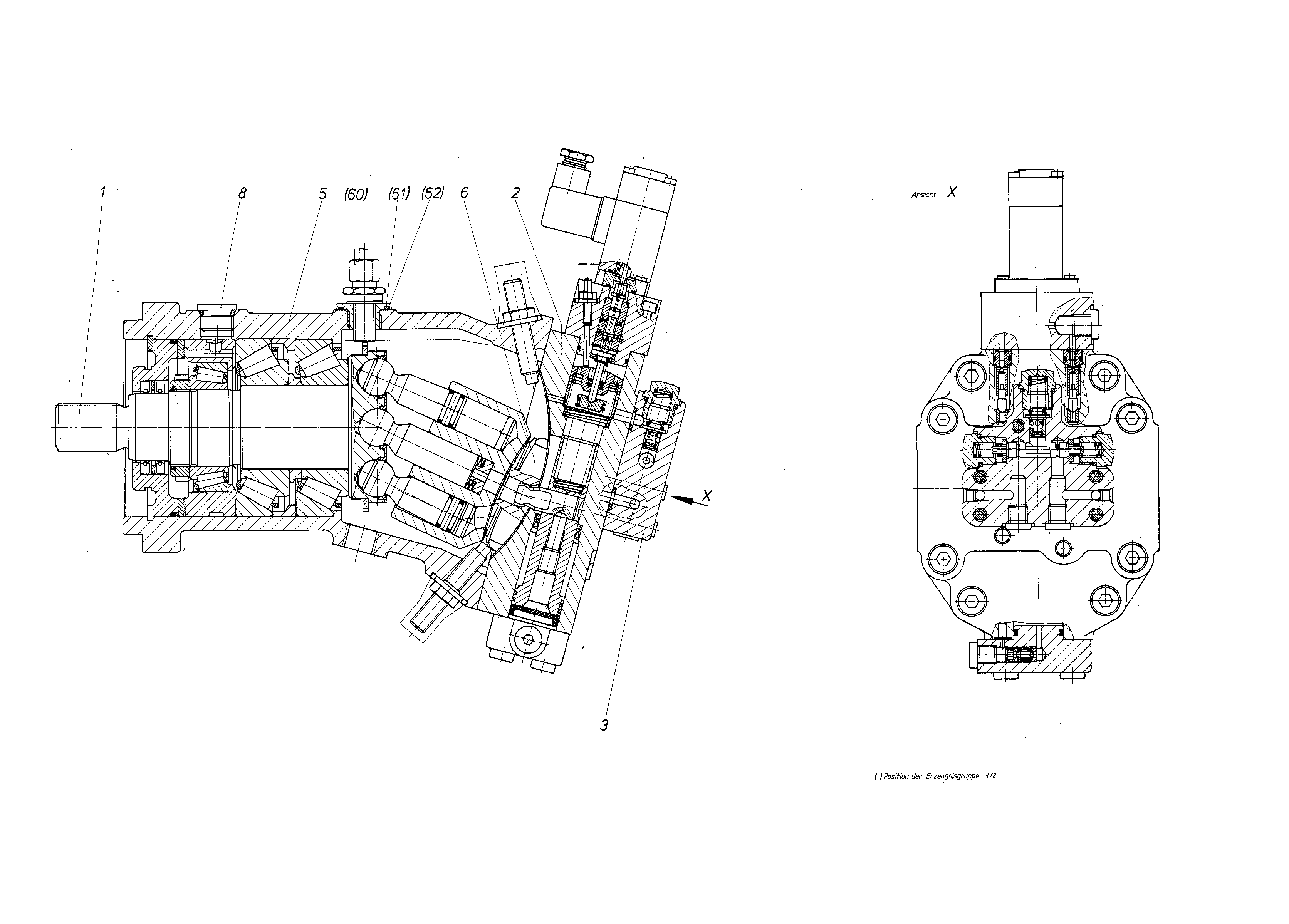

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909448622 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | |
| 60 | R909446675 | ROTATIONAL SPEED SENSOR Assembly parts list →L | 1 | |
| 61 | R909432056 | THREADED REDUCING STUD | 1 | |
| 62 | R909153359 | O-RINGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | AA6V |
| Operating mode | Motor | M |
| Control device | Proportional control, electric (with HIRSCHMANN U = 12 V connector – without suppressor diode) | EP1 |
| Direction of rotation | Viewed on drive shaft bidirectional | W |
| Drive shaft | Splined shaft ANSI B92.1a | S |
| Mounting flange | SAE J744 - 4-bolt 165-4 | D |
| Working port | SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 | 527 |
| Beginning of control | At Vg min (standard for HA) | A |
