Unit · AXIAL-PISTON PUMP
A8VO55SR3/60R1-PZG05F48R909448669
Axial piston pump Bosch Rexroth series A8VO, type code A8VO55SR3/60R1-PZG05F48, material number R909448669.
- Number
- R909448669
- Type code
- A8VO55SR3/60R1-PZG05F48
- Group
- A8VO 55
- Edition
- 06/2020

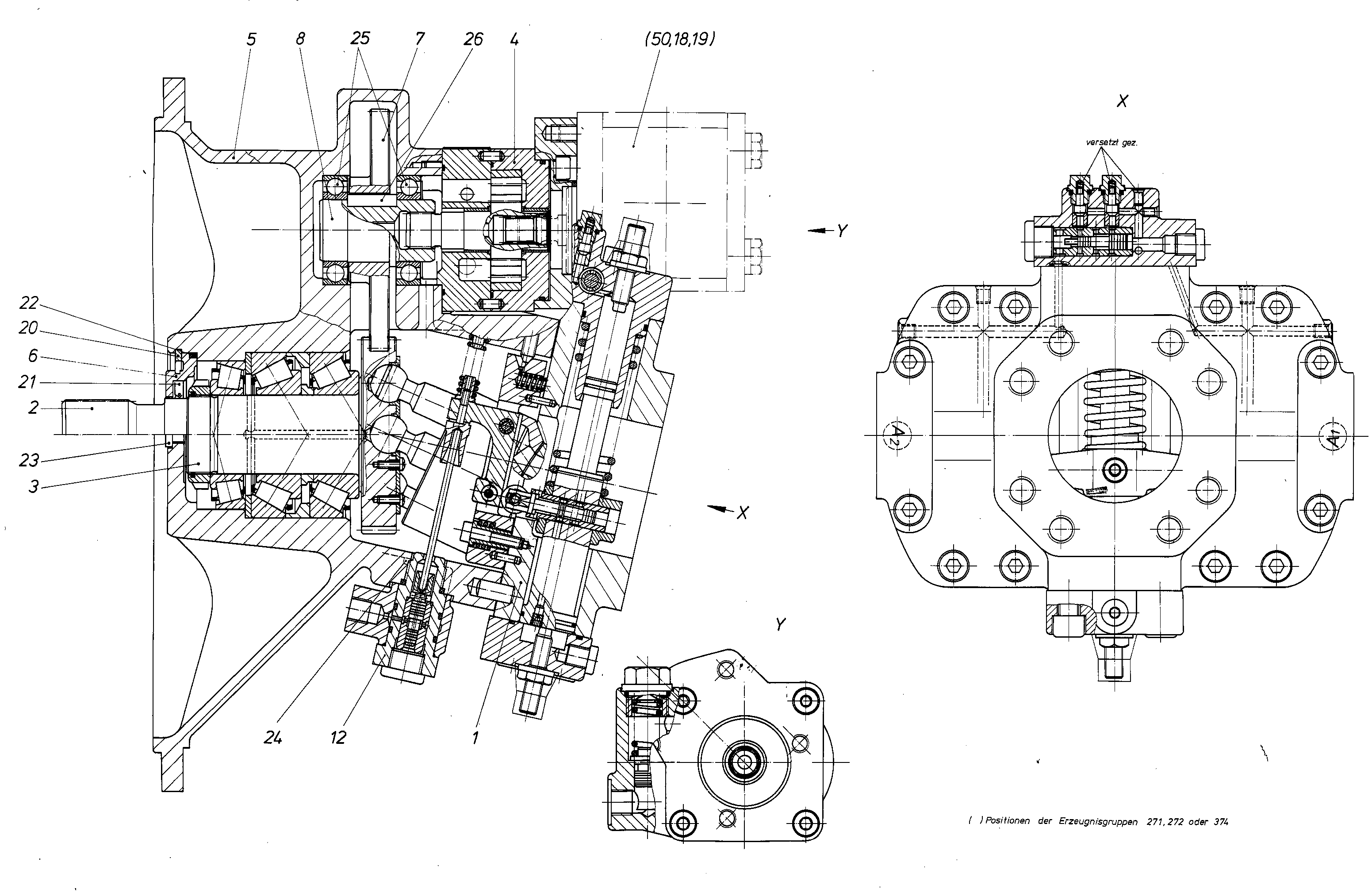

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909422368 | CONTROL Assembly parts list →L | 1 | ||
| R909411241 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909411242 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909412250 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| 5 | R909426179 | PUMP HOUSING | 1 | |
| R909410982 | LOCKING RINGD | 1 | ||
| 7 | R909425596 | TOOTHED WHEEL | 1 | |
| 8 | R909422705 | PLUG-IN SHAFT | 1 | |
| R909448668 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R909154609 | RETAINING RING | 1 | ||
| R909832131 | ROTARY SHAFT LIP SEALD | 1 | ||
| R909083824 | O-RINGD | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 3 | ||
| 25 | R909085444 | DEEP-GROOVE BALL BEARING | 2 | |
| R909083980 | PARALLEL KEY | 1 |
