Unit · AXIAL-PISTON MOTOR
A2FM28/61W-PAB191-SR909448715
Axial piston motor Bosch Rexroth series A2FM, type code A2FM28/61W-PAB191-S, material number R909448715. Axial piston unit: bent-axis design, fixed (A2F). Operating mode: motor (M). Direction of rotation: viewed on drive shaft, bidirectional (W). Drive shaft: splined shaft DIN 5480 (A). Mounting flange: ISO 3019-2 4-hole (B). Working ports: port plate with pressure relief valves 1 19 (191). Standard / special version: special version (-S).
- Number
- R909448715
- Type code
- A2FM28/61W-PAB191-S
- Group
- A2FM 28
- Edition
- 01/2018

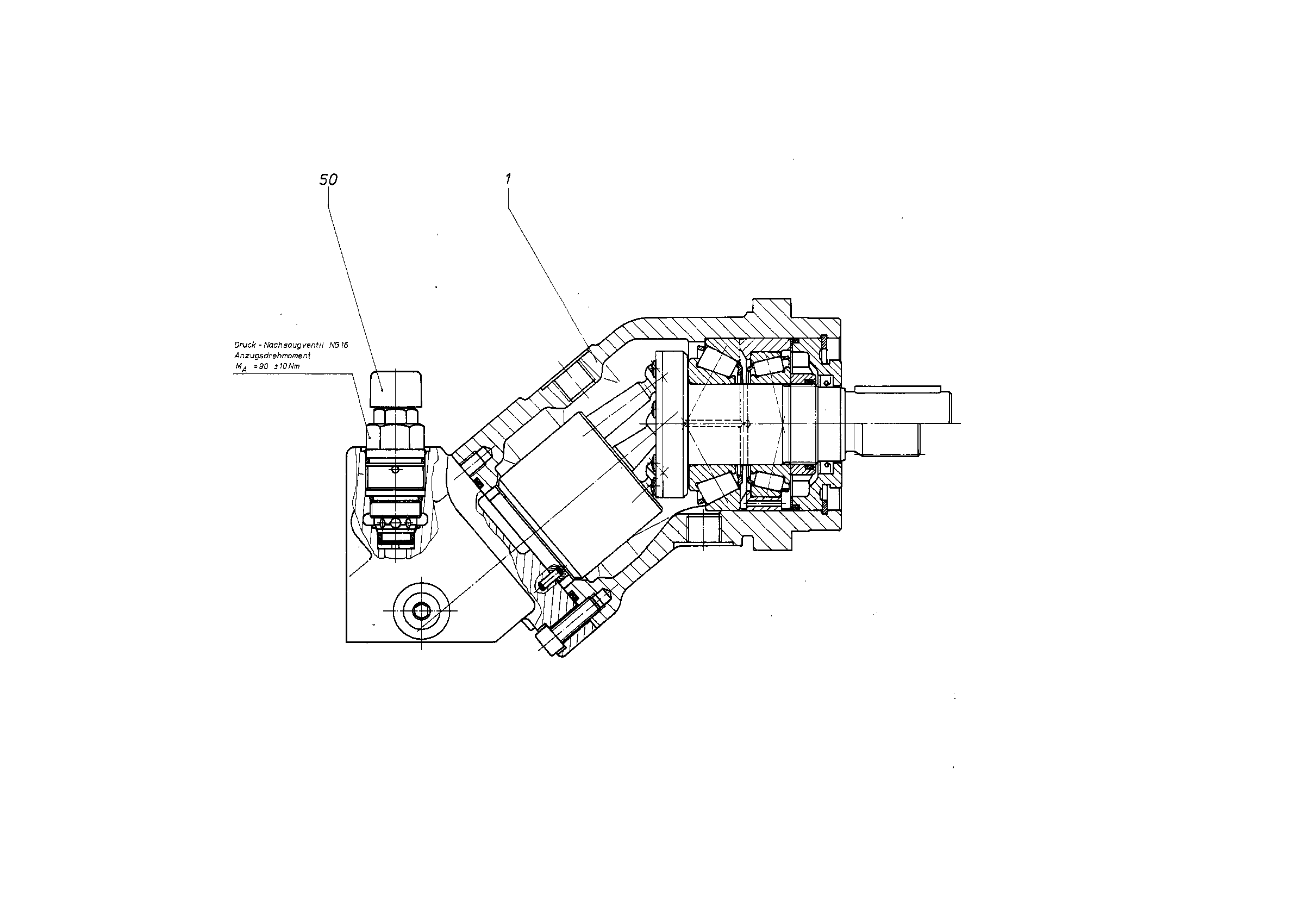

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909446629 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | ||
| R902603804 | DELIVERY-VALVE ASSEMBLY Assembly parts list →L | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, fixed | A2F |
| Operating mode | Motor | M |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Drive shaft | Splined shaft DIN 5480 | A |
| Mounting flange | ISO 3019-2 4-hole | B |
| Working ports | Port plate with pressure relief valves 1 19 | 191 |
| Standard / special version | Special version | -S |
