Unit · AXIAL-PISTON MOTOR
A6VE80EZ2/62W-NZL020BR909448735
Axial piston motor Bosch Rexroth series A6VM, type code A6VE80EZ2/62W-NZL020B, material number R909448735. Nominal size: NG 80. Axial piston unit: bent-axis design, variable (A6V). Control device: two-point control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V (EZ2). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: splined shaft DIN 5480 (Z). Working port: SAE working ports Without valve 0 A and B at side, opposite 02 (020). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R909448735
- Type code
- A6VE80EZ2/62W-NZL020B
- Group
- A6VE 80
- Edition
- 07/2020

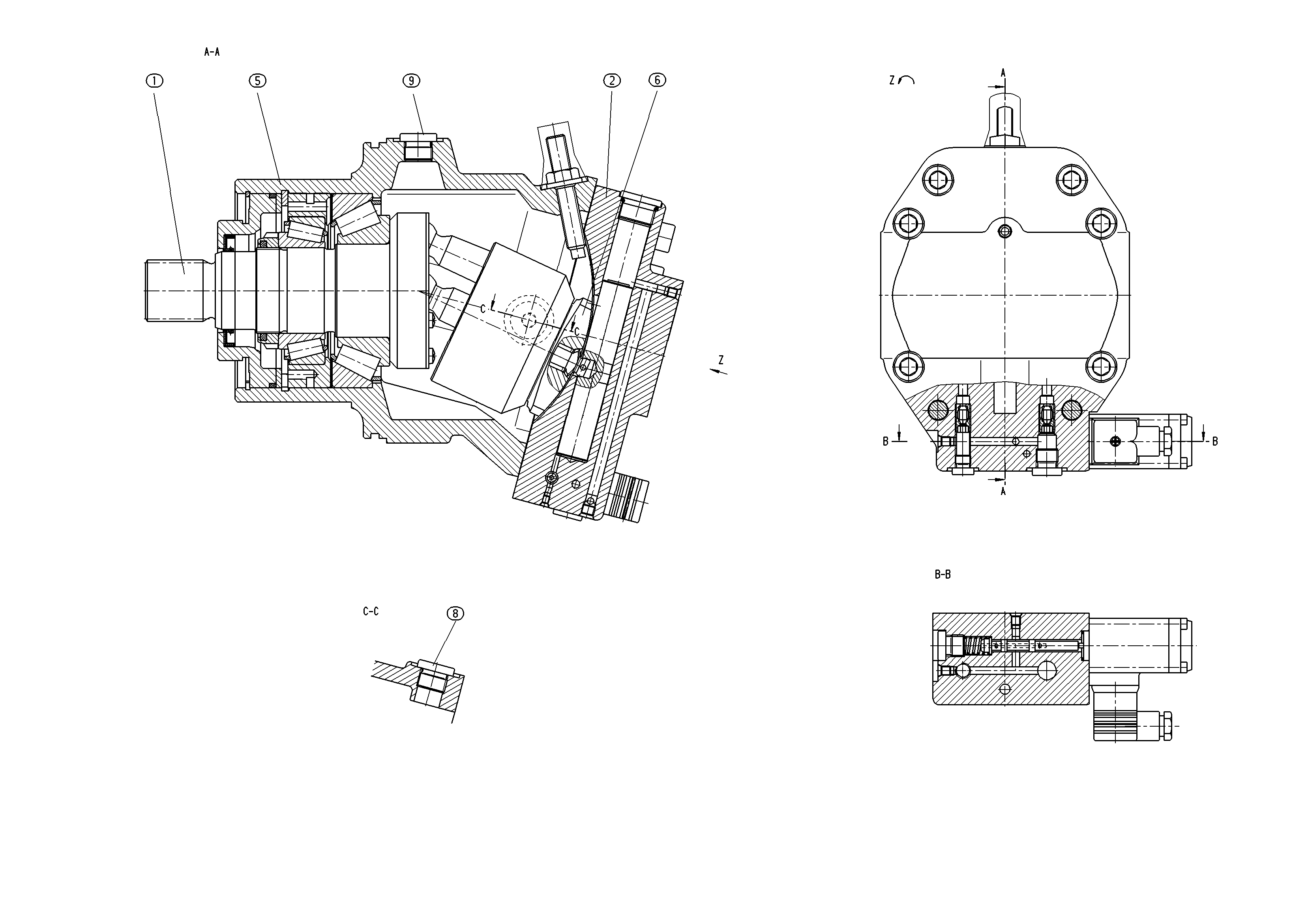

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909416232 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R909446065 | CONTROL Assembly parts list →L | 1 | |
| 5 | R909435951 | HOUSING | 1 | |
| R909921787 | CONTROL LENS | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| 9 | R909153815 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 80 | 80 |
| Control device | Two-point control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V | EZ2 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 02 | 020 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
