Unit · AXIAL-PISTON PUMP
A11VG12MDN1/10R-NSC16K011E-SR909600432
Axial piston pump Bosch Rexroth series A11VO, type code A11VG12MDN1/10R-NSC16K011E-S, material number R909600432. Nominal size: NG 12. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal ring FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft ANSI B92.1a‒1976 for single pump (S). Mounting flange: SAE J744 ‒ 2-hole (C). Through drive: 82-2 (A) 5/8 in 9T 16/32DP A (K01). Standard/special version: special version (S).
- Number
- R909600432
- Type code
- A11VG12MDN1/10R-NSC16K011E-S
- Group
- A11VG 12
- Edition
- 06/2020

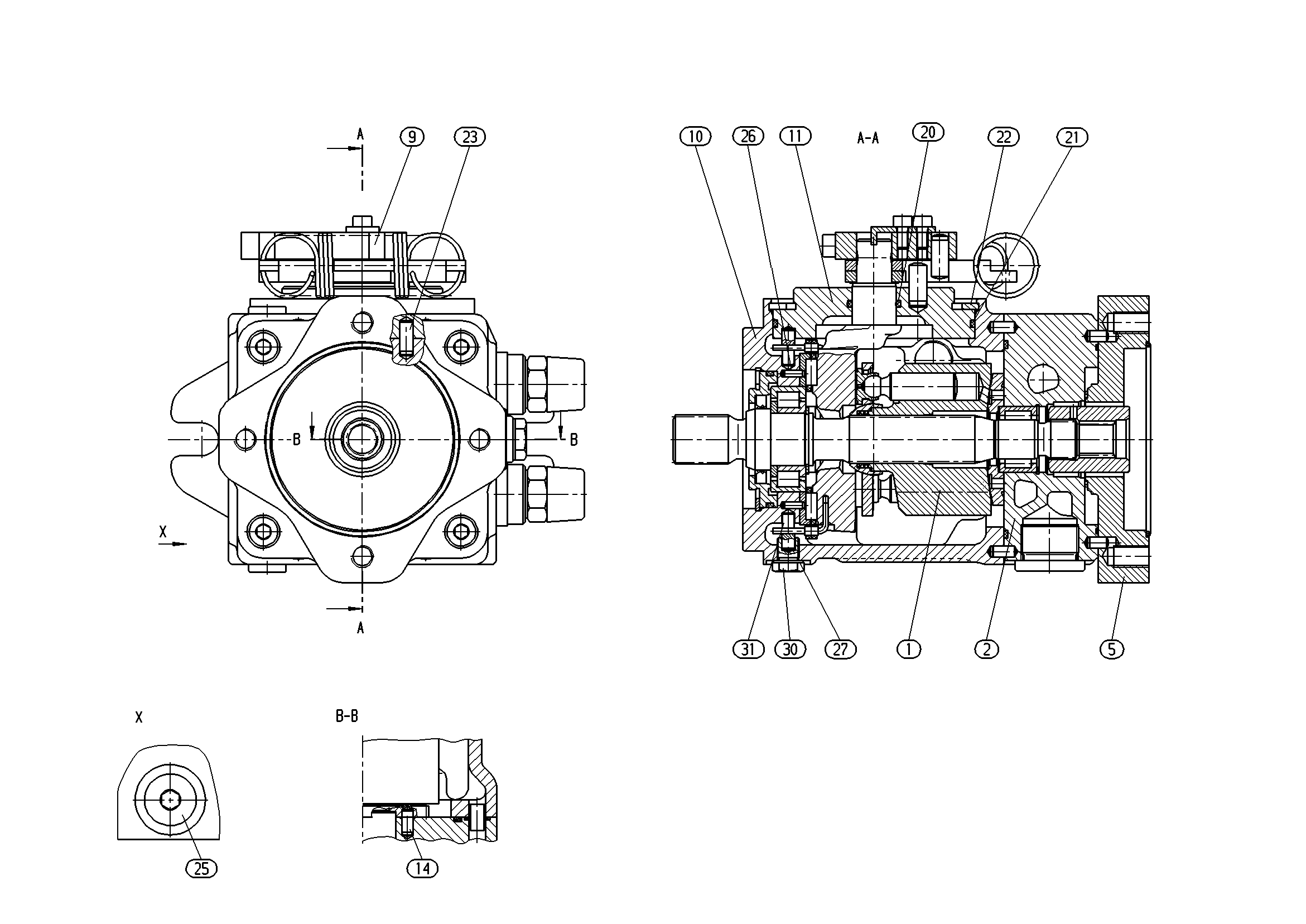

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909447433 | ROTARY GROUP Assembly parts list →L | 1 | |
| R909600433 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909434233 | BELL HOUSING Assembly parts list →L | 1 | ||
| 9 | R909447362 | CONTROL Assembly parts list →L | 1 | |
| R909436386 | HOUSING | 1 | ||
| R913009664 | STRAIGHT PIN | 1 | ||
| R909083760 | O-RINGD | 1 | ||
| R909086495 | O-RINGD | 1 | ||
| R909157169 | RETAINING RING | 1 | ||
| R913009677 | STRAIGHT PIN | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R913017227 | SLOTTED SPRING PIN | 2 | ||
| R909152725 | SEAL RINGD | 1 | ||
| R909436089 | SCREW PLUG | 1 | ||
| R909436088 | PIVOT PIN | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Size (NG) | 12 | 12 |
| Index | Size 40 … 130 | 0 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal ring FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft ANSI B92.1a‒1976 for single pump | S |
| Mounting flange | SAE J744 ‒ 2-hole | C |
| Through drive | 82-2 (A) 5/8 in 9T 16/32DP A | K01 |
| Standard/special version | Special version | S |
