Unit · AXIAL-PISTON PUMP
A11VG50EP21/12R-PSC10K022ER909600528
Axial piston pump Bosch Rexroth series A11VO, type code A11VG50EP21/12R-PSC10K022E, material number R909600528. Nominal size: NG 50. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Control device: electrical control with proportional solenoid positive control U = 24 V (EP2). Drive shaft: splined shaft ANSI B92.1a‒1976 for single pump (S). Mounting flange: SAE J744 ‒ 2-hole (C). Through drive: 101-2 (B) 7/8 in 13T 16/32DP B (K02).
- Number
- R909600528
- Type code
- A11VG50EP21/12R-PSC10K022E
- Group
- A11VG 50
- Edition
- 06/2020

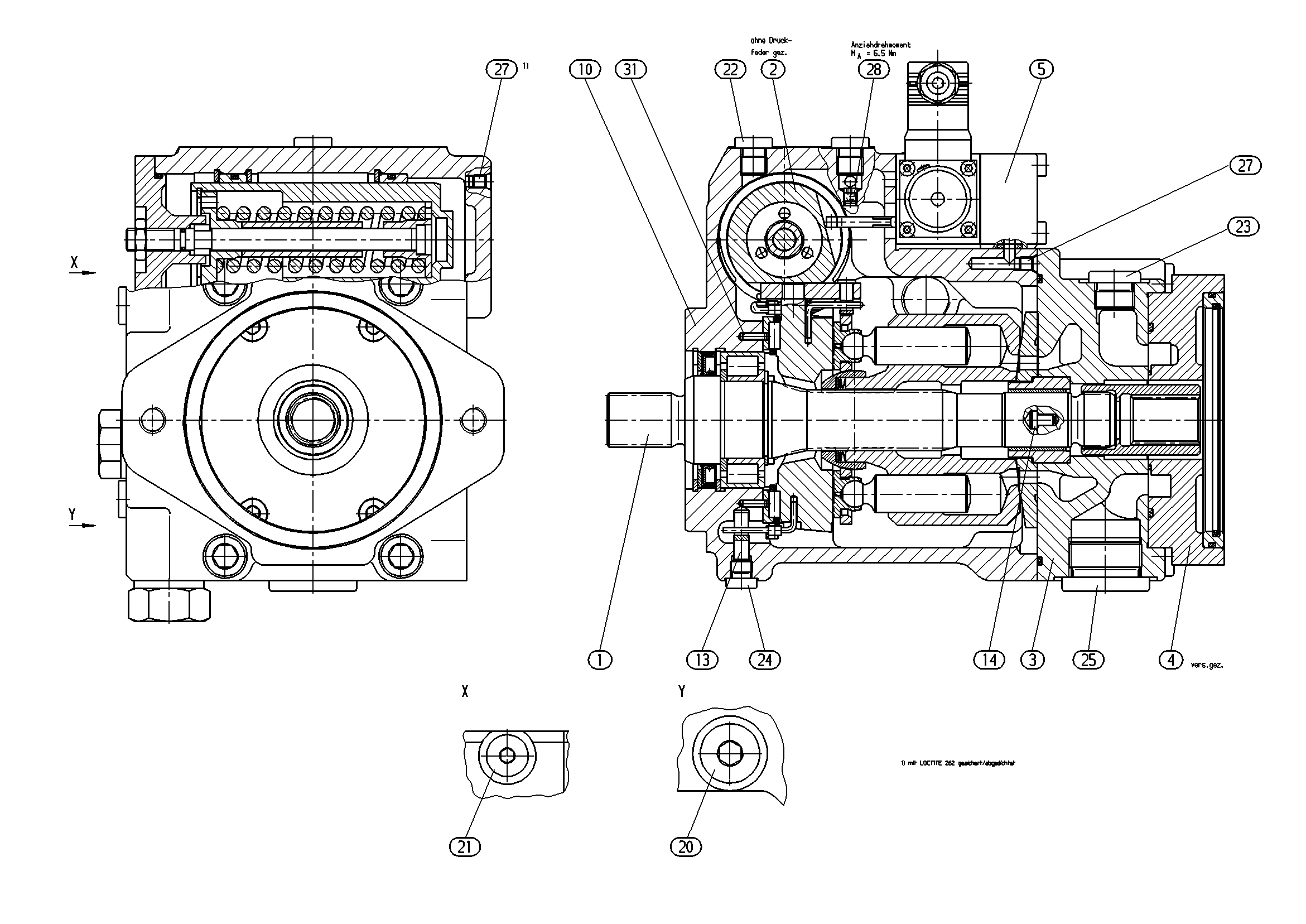

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909438122 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909441233 | CONTROL Assembly parts list →L | 1 | ||
| R909446984 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909441851 | BELL HOUSING Assembly parts list →L | 1 | ||
| R909601621 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R909651360 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 1 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909153861 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909156493 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Size (NG) | 50 | 50 |
| Control device | Electrical control with proportional solenoid positive control U = 24 V | EP2 |
| Index | Size 145 … 260 | 1 |
| Drive shaft | Splined shaft ANSI B92.1a‒1976 for single pump | S |
| Mounting flange | SAE J744 ‒ 2-hole | C |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP B | K02 |
