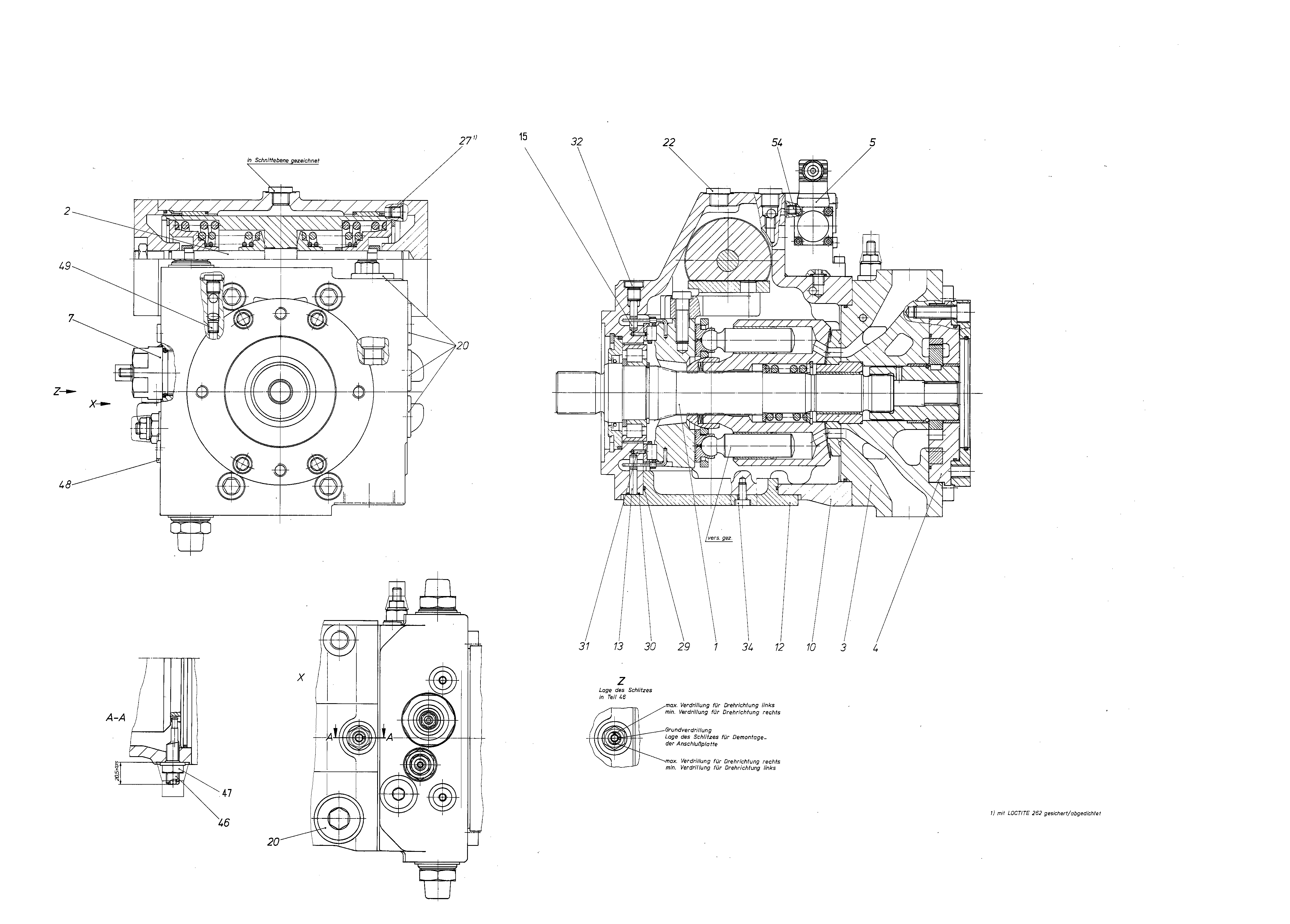

Unit · AXIAL-PISTON PUMP
A4VG125DA2D6/31L-NZF02F071SR909600568
Axial piston pump Bosch Rexroth series A4VG, type code A4VG125DA2D6/31L-NZF02F071S, material number R909600568. Nominal size: NG 125. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar (A4V). Operating mode: pump, closed circuit (G). Control device: automatic control, speed related U = 24 V (DA2). Pressure cut-off: pressure cut-off (D). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft for single pump DIN 5480 (Z). Mounting flange: SAE J744 2+4-hole (F). Working port (port plate): SAE working port A and B, top and bottom suction port S bottom (02). Boost pump: integrated boost pump with and without through drive (F). Through drive: flange SAE J744 Hub for splined shaft, 127-2 (C) 1 1/4 in 14T 12/24DP (07). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve, pilot operated 100 … 420 bar with bypass (1). Filtration boost circuit/external boost pressure supply: filtration in the boost pump suction line (S).
- Number
- R909600568
- Type code
- A4VG125DA2D6/31L-NZF02F071S
- Group
- A4VG 125
- Edition
- 02/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909437845 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R909442406 | CONTROL Assembly parts list →L | 1 | |
| R909438648 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902027746 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| 5 | R909437622 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | |
| R909446560 | CONTROL CARTRIDGE Assembly parts list →L | 1 | ||
| R909436787 | HOUSING | 1 | ||
| R909432369 | HOUSING COVER | 1 | ||
| R909435017 | PIVOT PIN | 1 | ||
| R902118633 | PIVOT PIN | 1 | ||
| R909153861 | SCREW PLUGD | 5 | ||
| R909153816 | SCREW PLUGD | 3 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909830207 | O-RINGD | 1 | ||
| R909157348 | QUAD RINGD | 1 | ||
| R913016374 | SLOTTED SPRING PIN | 2 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R909083034 | SOCKET HEAD CAP SCREW | 8 | ||
| R902035616 | ECCENTRIC SCREW | 1 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| 49 | R909426707 | NOZZLE | 1 | |
| R909073588 | THROTTLE SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 125 | 125 |
| Control device | Automatic control, speed related U = 24 V | DA2 |
| Pressure cut-off | Pressure cut-off | D |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft for single pump DIN 5480 | Z |
| Mounting flange | SAE J744 2+4-hole | F |
| Working port (port plate) | SAE working port A and B, top and bottom suction port S bottom | 02 |
| Boost pump | Integrated boost pump with and without through drive | F |
| Through drive | Flange SAE J744 Hub for splined shaft, 127-2 (C) 1 1/4 in 14T 12/24DP | 07 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve, pilot operated 100 … 420 bar with bypass | 1 |
| Filtration boost circuit/external boost pressure supply | Filtration in the boost pump suction line | S |
