Unit · AXIAL-PISTON PUMP
AA4VG125EP2D1/31L-NSF52KXX1E-SR909600579
Axial piston pump Bosch Rexroth series A4VG, type code AA4VG125EP2D1/31L-NSF52KXX1E-S, material number R909600579. Nominal size: NG 125. Axial piston unit: swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi (A4V). Operating mode: pump, closed circuit (G). Pressure cut-off: pressure cut-off (D). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft for single pump ANSI B92.1a (S). Mounting flange: SAE J744 2+4-hole (F). Working port (port plate): SAE working port A and B, top and bottom suction port S bottom (52). Boost pump: without integrated boost pump with through drive (K). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve, pilot operated 1450 to 6100 psi with bypass (100 to 420 bar) (1). Filtration boost circuit/external boost pressure supply: external boost pressure supply (version without integrated boost pump – N00, K...) (E). Standard/special version: special version (-S).
- Number
- R909600579
- Type code
- AA4VG125EP2D1/31L-NSF52KXX1E-S
- Group
- A4VG 125
- Edition
- 03/2020

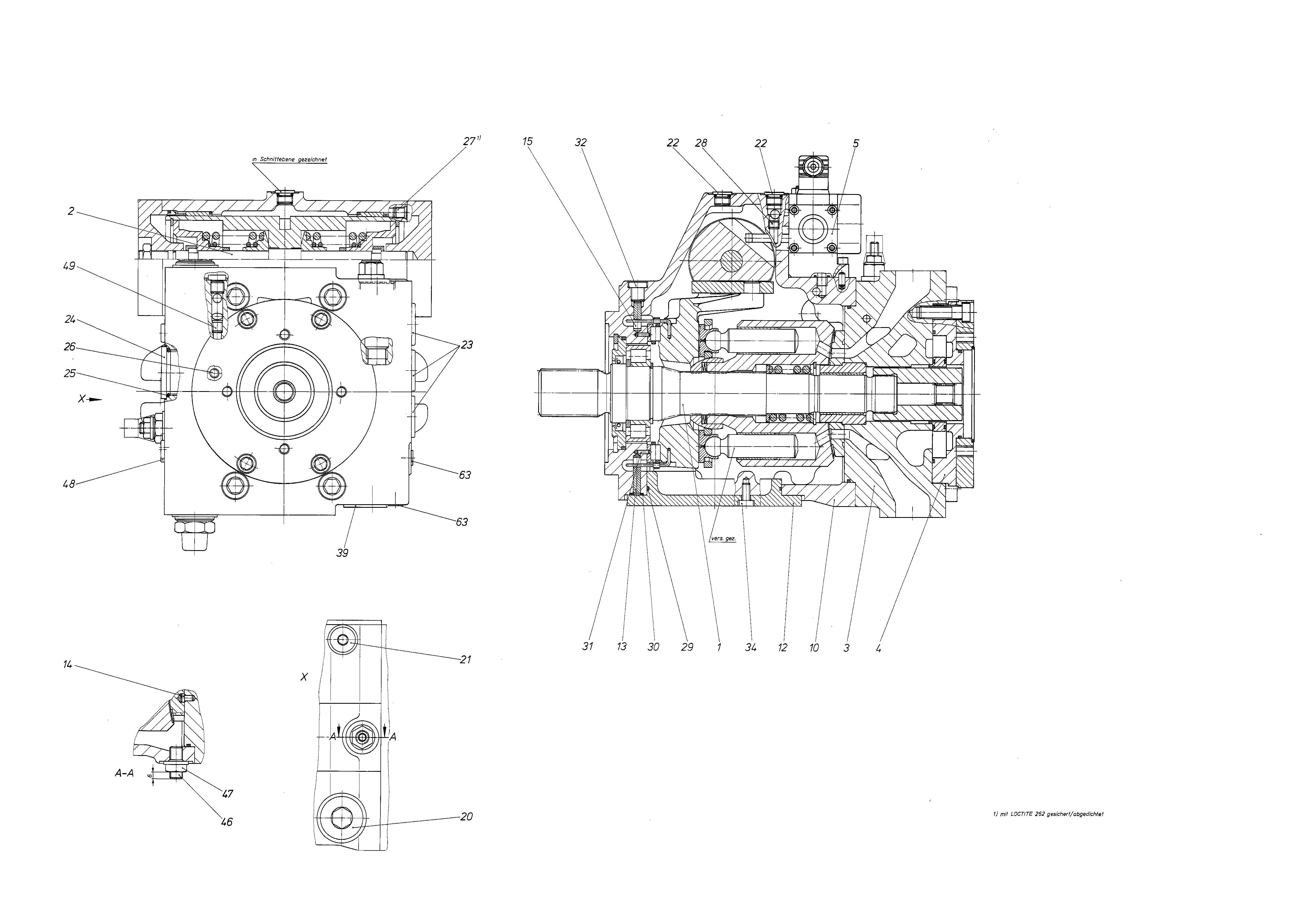

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909437734 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R909438692 | CONTROL Assembly parts list →L | 1 | |
| R909600754 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909448750 | BELL HOUSING Assembly parts list →L | 1 | ||
| 5 | R909602237 | CONTROL UNIT Assembly parts list →L | 1 | |
| R909436788 | HOUSING | 1 | ||
| R909432369 | HOUSING COVER | 1 | ||
| R909435017 | PIVOT PIN | 1 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R902118633 | PIVOT PIN | 1 | ||
| R909153378 | SCREW PLUGD | 1 | ||
| 21 | R909153338 | SCREW PLUGD | 1 | |
| R909153371 | SCREW PLUGD | 3 | ||
| R909153861 | SCREW PLUGD | 3 | ||
| 24 | R909083229 | SCREW PLUG | 1 | |
| 25 | R909085545 | O-RINGD | 1 | |
| R909153572 | SCREW PLUG | 1 | ||
| 27 | R909831320 | DOUBLE BREAK-OFF PLUG | 1 | |
| 28 | R909426700 | NOZZLE | 2 | |
| R909830207 | O-RINGD | 1 | ||
| R909157348 | QUAD RINGD | 1 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909083034 | SOCKET HEAD CAP SCREW | 8 | ||
| R909157392 | SCREW PLUGD | 1 | ||
| R909154982 | SETSCREW | 1 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| R909426707 | NOZZLE | 1 | ||
| R909154478 | SCREW PLUGD | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 125 | 125 |
| Pressure cut-off | Pressure cut-off | D |
| DA control valve | Without DA control valve | 1 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft for single pump ANSI B92.1a | S |
| Mounting flange | SAE J744 2+4-hole | F |
| Working port (port plate) | SAE working port A and B, top and bottom suction port S bottom | 52 |
| Boost pump | Without integrated boost pump with through drive | K |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve, pilot operated 1450 to 6100 psi with bypass (100 to 420 bar) | 1 |
| Filtration boost circuit/external boost pressure supply | External boost pressure supply (version without integrated boost pump – N00, K...) | E |
| Standard/special version | Special version | -S |
