Unit · CONNECTION PLATE
M.VENTILEN 23117.R909601229

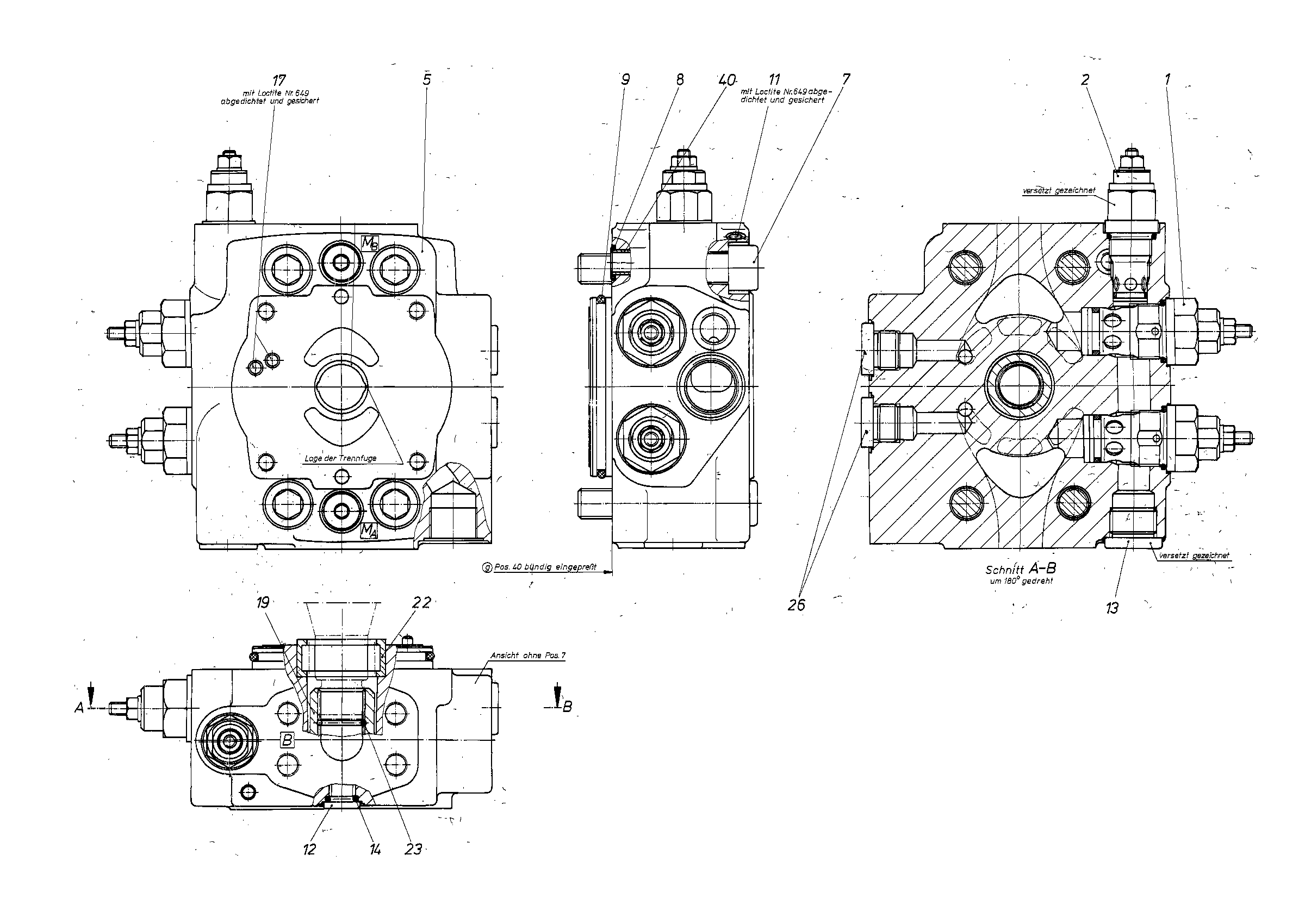

Connection plate Bosch Rexroth, type code M.VENTILEN23117., material number R909601229.
- Number
- R909601229
- Type code
- M.VENTILEN 23117.
- Group
- CONNECTION PLATE
- Edition
- 12/2021
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909419204 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R909423981 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R909080217 | CONNECTION PLATE | 1 | ||
| R909083099 | SOCKET HEAD CAP SCREW | 4 | ||
| R909157083 | QUAD RINGD | 2 | ||
| R909083821 | O-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083219 | SCREW PLUG | 2 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909083749 | O-RINGD | 2 | ||
| R909078295 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909078306 | COUPLING HUB | 1 | ||
| R909153245 | CYL. ROLLER BEARING | 1 | ||
| R909152509 | SNAP RING | 1 | ||
| R909153815 | SCREW PLUGD | 2 | ||
| R909830409 | SLOTTED SPRING PIN | 1 |
