Unit · AXIAL-PISTON MOTOR
A6VM55HA1R/60W-PZB026AR909603157
Axial piston motor Bosch Rexroth series A6VM, type code A6VM55HA1R/60W-PZB026A, material number R909603157. Nominal size: NG 55. Axial piston unit: bent-axis design, variable, nominal pressure 5800 psi (400 bar), maximum pressure (A6V). Operating mode: motor (M). Control device: automatic control with minimum pressure Δp ≤ approx. 145 psi (10 bar) high-pressure related, increase Positive control (HA1). Additional function 1: without additional function (0). Configuration of ports and fastening threads: ANSI, port threads with O-ring sealing according to ISO 11926 (A).
- Number
- R909603157
- Type code
- A6VM55HA1R/60W-PZB026A
- Group
- A6VM 55
- Edition
- 06/2020

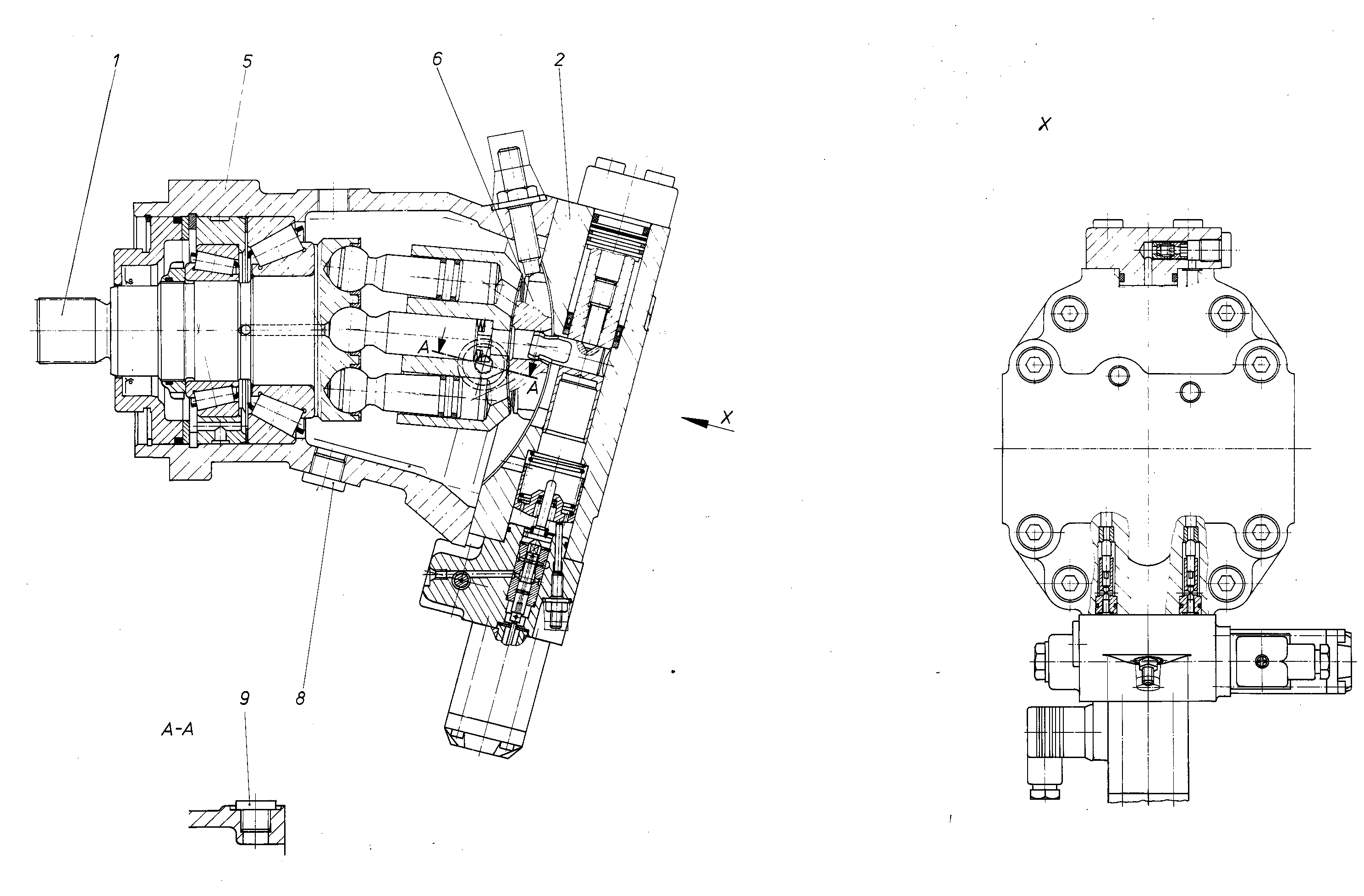

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909416233 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909603158 | CONTROL Assembly parts list →L | 1 | ||
| R909440050 | HOUSING | 1 | ||
| R909427917 | CONTROL LENS | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909153816 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 5800 psi (400 bar), maximum pressure | A6V |
| Operating mode | Motor | M |
| Size (NG) | 55 | 55 |
| Control device | Automatic control with minimum pressure Δp ≤ approx. 145 psi (10 bar) high-pressure related, increase Positive control | HA1 |
| Additional function 1 | Without additional function | 0 |
| Setting range for displacement | 26 | 026 |
| Configuration of ports and fastening threads | ANSI, port threads with O-ring sealing according to ISO 11926 | A |
