Unit · AXIAL-PISTON MOTOR
A6VE107EP2/61W-PZL020BR909603354
Axial piston motor Bosch Rexroth series A6VM, type code A6VE107EP2/61W-PZL020B, material number R909603354. Nominal size: NG 107. Axial piston unit: bent-axis design, variable (A6V). Control device: proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V (EP2). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: parallel keyed shaft DIN 6885 (P). Working port: SAE working ports Without valve 0 A and B at side, opposite 02 (020). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R909603354
- Type code
- A6VE107EP2/61W-PZL020B
- Group
- A6VE 107
- Edition
- 06/2020

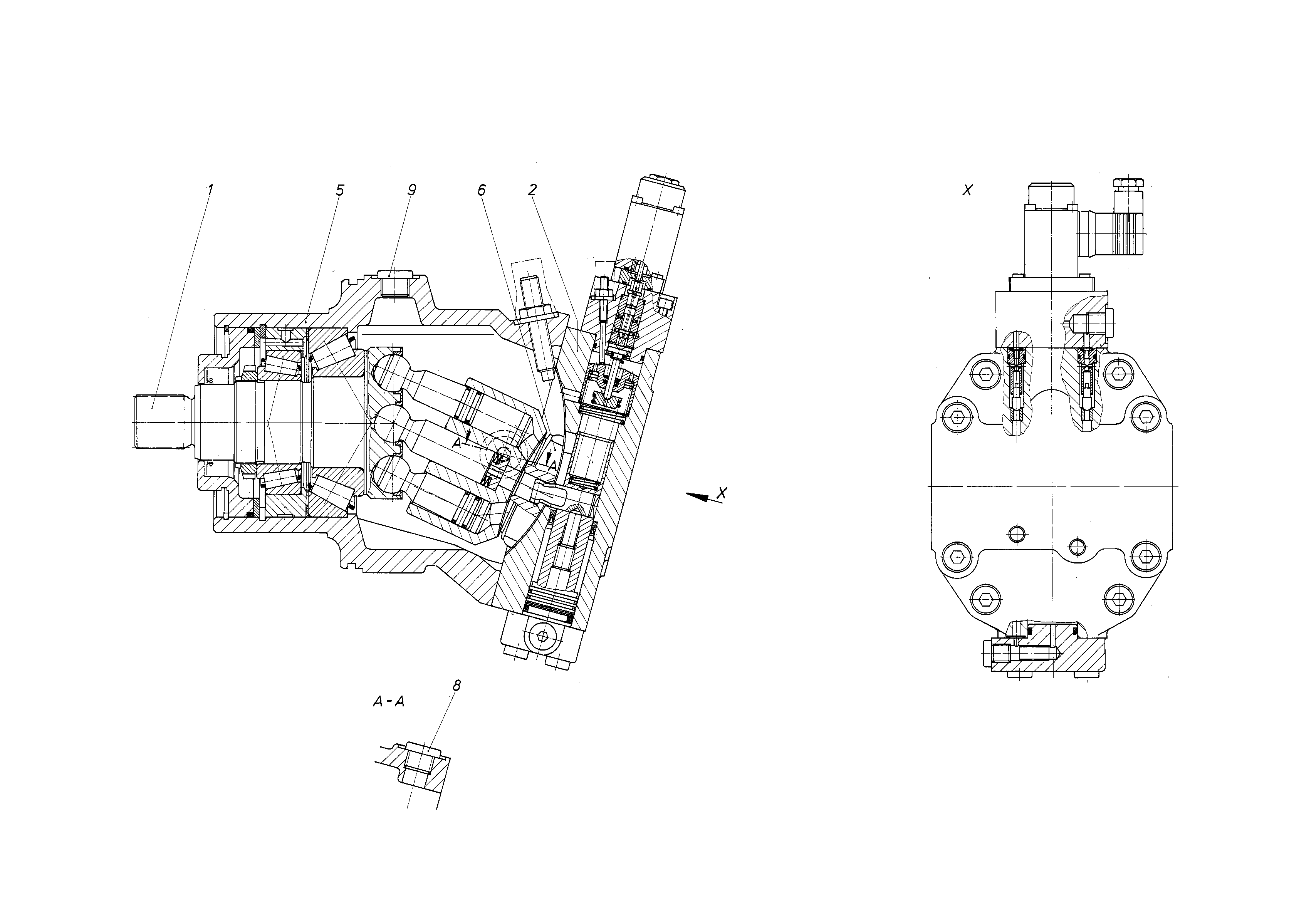

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909438963 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R909603357 | CONTROL Assembly parts list →L | 1 | |
| 5 | R909449535 | HOUSING | 1 | |
| R909921788 | CONTROL LENS | 1 | ||
| 8 | R909153815 | SCREW PLUGD | 1 | |
| 9 | R909153815 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 107 | 107 |
| Control device | Proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V | EP2 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 02 | 020 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
