Unit · AXIAL-PISTON MOTOR
A6VE80HD1/61W-VAL027B-SR909603383
Axial piston motor Bosch Rexroth series A6VM, type code A6VE80HD1/61W-VAL027B-S, material number R909603383. Nominal size: NG 80. Axial piston unit: bent-axis design, variable (A6V). Control device: proportional control, hydraulic ΔpSt = 10 bar (HD1). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Working port: SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 (027). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B). Standard/special version: special version (-S).
- Number
- R909603383
- Type code
- A6VE80HD1/61W-VAL027B-S
- Group
- A6VE 80
- Edition
- 06/2020

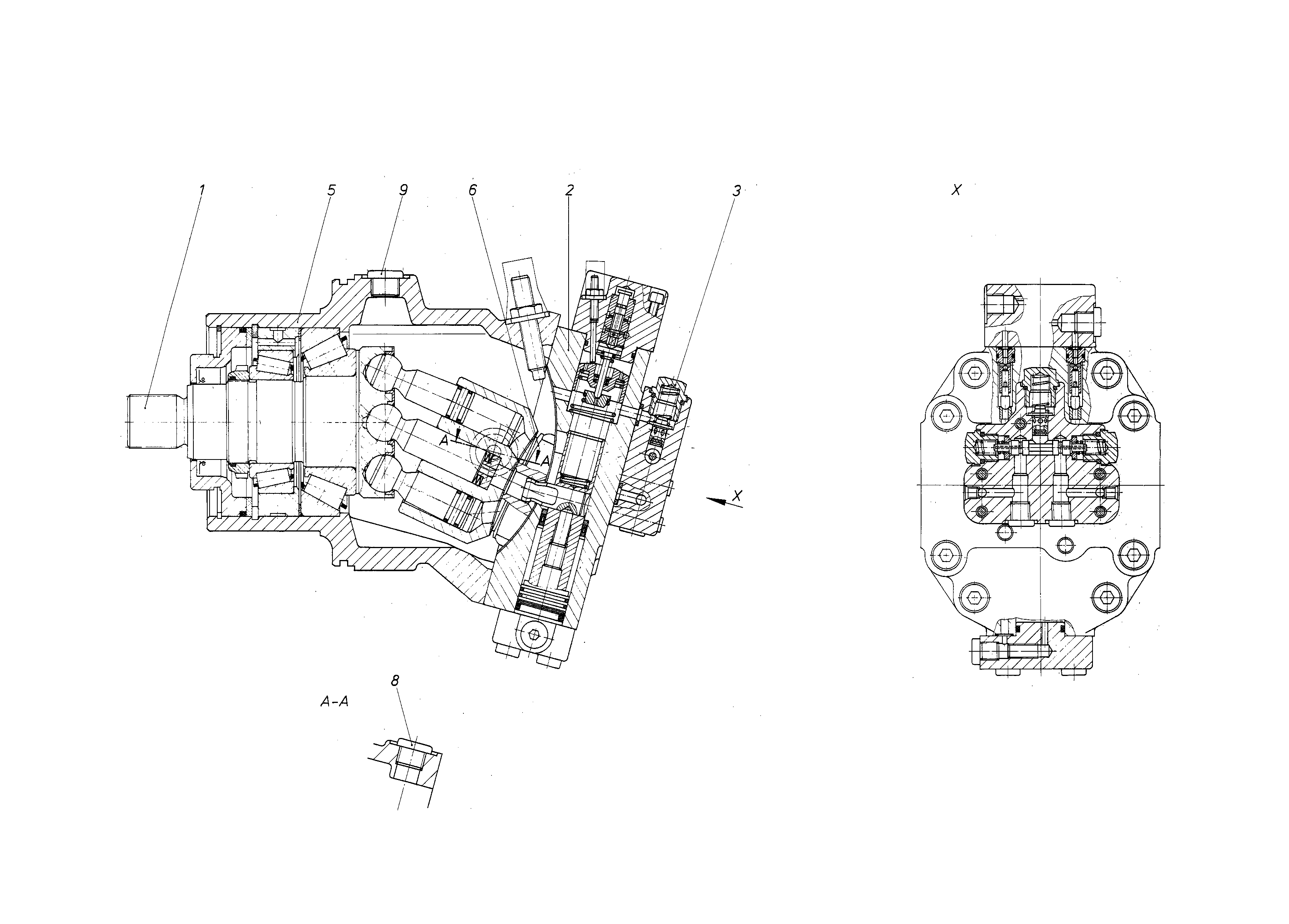

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909442427 | ROTARY GROUP Assembly parts list →L | 1 | |
| R909603384 | CONTROL Assembly parts list →L | 1 | ||
| 3 | R909420889 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | |
| 5 | R909443984 | HOUSING | 1 | |
| 6 | R909921787 | CONTROL LENS | 1 | |
| 8 | R909156651 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 80 | 80 |
| Control device | Proportional control, hydraulic ΔpSt = 10 bar | HD1 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Working port | SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 | 027 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
| Standard/special version | Special version | -S |
