Unit · AXIAL-PISTON MOTOR
A6VM160EZ2D/60W-PAB010DB-SR909603448
Axial piston motor Bosch Rexroth series A6VM, type code A6VM160EZ2D/60W-PAB010DB-S, material number R909603448. Nominal size: NG 160. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: two-point control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V (EZ2). Pressure control (only for HD and EP): pressure control Fixed setting (D). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: parallel keyed shaft DIN 6885 (P). Working port: SAE working ports Without valve 0 A and B at rear 01 (010). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B). Standard/special version: special version (-S).
- Number
- R909603448
- Type code
- A6VM160EZ2D/60W-PAB010DB-S
- Group
- A6VM 160
- Edition
- 06/2020

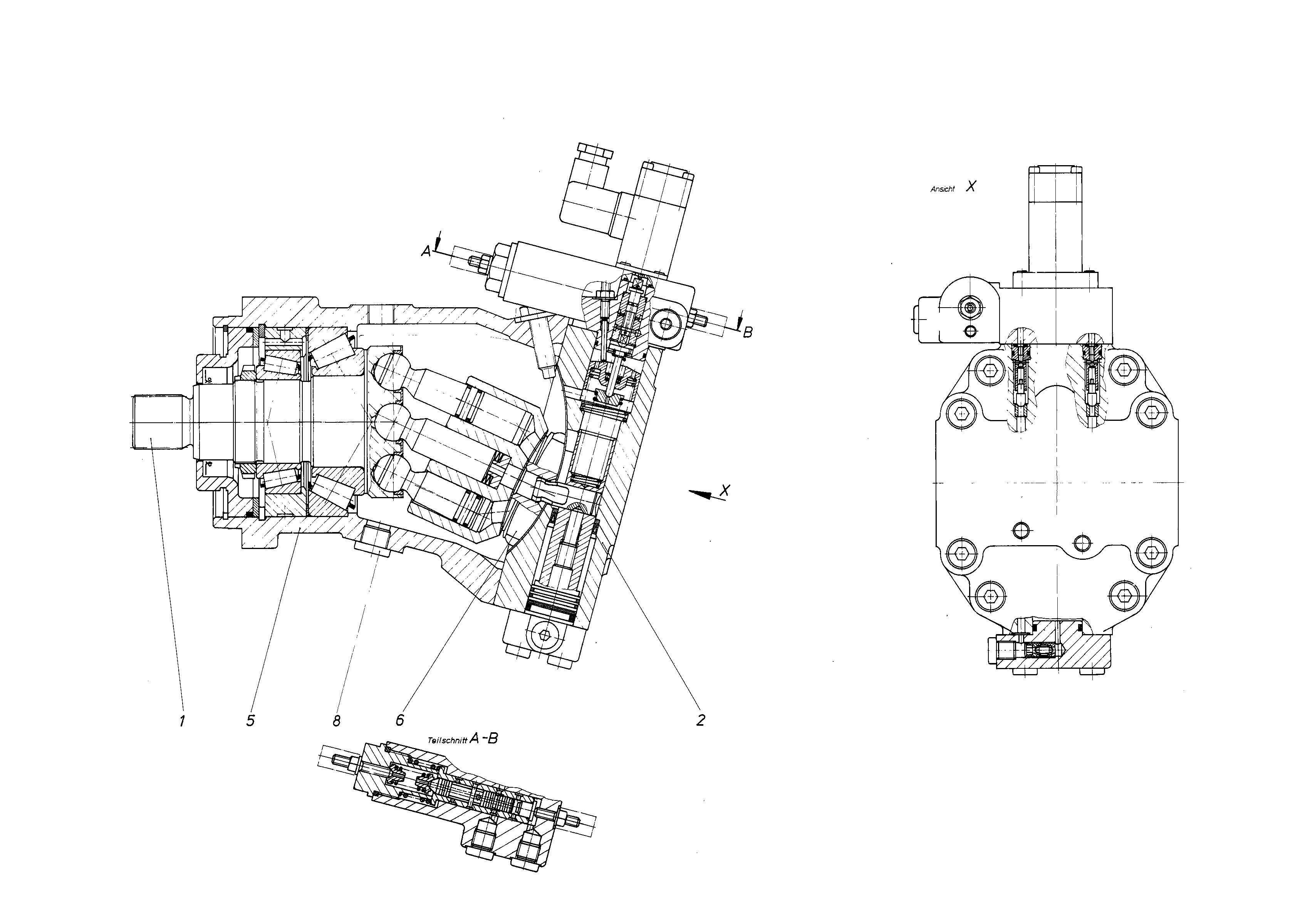

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909434125 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R909603449 | CONTROL Assembly parts list →L | 1 | |
| 5 | R909412645 | HOUSING | 1 | |
| R909921790 | CONTROL LENS | 1 | ||
| 8 | R909151694 | SCREW PLUGD | 1 | |
| 29 | R909432055 | THREADED REDUCING STUD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 160 | 160 |
| Control device | Two-point control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V | EZ2 |
| Pressure control (only for HD and EP) | Pressure control Fixed setting | D |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Working port | SAE working ports Without valve 0 A and B at rear 01 | 010 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
| Standard/special version | Special version | -S |
